M Trim, rear for BMW 3 Series G20 Sedan 320i (2022)

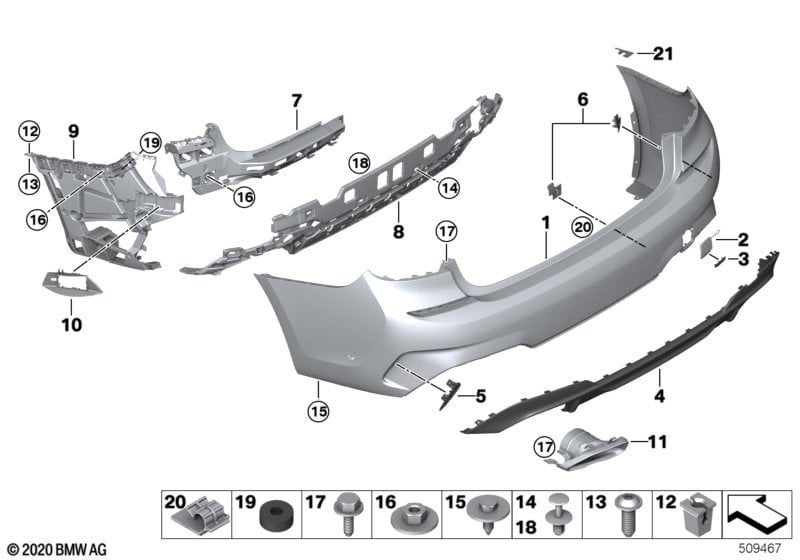

This M Trim, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=Yes |
||||||||
| For vehicles with Park Distance Control (PDC) and M Aerodynamics package |
S508A=Yes S715A=Yes |
|||||||||
| 01 | Bumper trim panel, rear | MSP/MPA PDC | 1 | 51128099904 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51125A58A00 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and M Aerodynamics package Important notice! Observe product information. Use "Only in conjunction with" parts. |
S508A=Yes S715A=Yes |
|||||||||
| 01 | Bumper trim panel, rear | MSP/MPA PDC/PMA | 1 | 51128099905 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Decoupling ring | 6 | 66209390408 | Shop at ECS Tuning | ||||||
| -- | Kit dummy trim | GEN 6.X | 1 | 51125A3F532 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51125A58A00 | Shop at ECS Tuning | |||||
| -- | Stick-on label | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus and M Aerodynamics package |
S508A=No S5DMA=No S5DNA=No S715A=Yes |
|||||||||
| 01 | Bumper trim panel, rear | MSP/MPA | 1 | 51128099903 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51125A58A00 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 02 | Cover for towing eye primed | 1 | 51128099902 | Shop at ECS Tuning | ||||||
| 03 | Cover for towing eye, bottom rear | DARK SHADOW | 1 | 51129880379 | Shop at ECS Tuning | |||||
| 04 | Trim panel, bumper, rear, bottom | MSP | 1 | 51128069390 | Shop at ECS Tuning | |||||
| For vehicles with National version China and M Aerodynamics package |
L8AAA=Yes S715A=Yes |
|||||||||
| 05 | Grill, bumper, rear left | M | 1 | 51128075815 | Shop at ECS Tuning | |||||
| For vehicles with National version China and M Aerodynamics package |
L8AAA=No S715A=Yes |
|||||||||
| 05 | Grill, bumper, rear right | M | 1 | 51128075816 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus and M Aerodynamics package |
S508A=Yes S5DMA=Yes S5DNA=Yes S715A=Yes |
|||||||||
| 06 | Kit, mount for PDC/PMA sensor, rear | M | 1 | 51127011150 | Shop at ECS Tuning | |||||
| 07 | Guide for bumper, side, left | 1 | 51127469363 | Shop at ECS Tuning | ||||||
| 07 | Guide for bumper, side, right | 1 | 51127469364 | Shop at ECS Tuning | ||||||
| 08 | Mount for bumper, rear | MSP | 1 | 51128069392 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 09 | Mount for bumper, corner, rear left | MSP/MPA | 1 | 51128069393 | Shop at ECS Tuning | |||||
| 09 | Mount for bumper, corner, rear right | MSP/MPA | 1 | 51128069394 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Driving Assistant and Driving assistant professional and M Aerodynamics package |
L8AAA=Yes S5ASA=Yes S5AUA=Yes S715A=Yes |
|||||||||
| 10 | Absorber funnel, left | M | 1 | 66318094417 | Shop at ECS Tuning | |||||
| 10 | Absorber funnel, right | M | 1 | 66318094418 | Shop at ECS Tuning | |||||
| 12 | Expanding nut | ST 4.8 | 2 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 13 | Fillister head screw | ST5X17-ZNS3 | 2 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Expanding rivet | 14 | 07147401727 | Shop at ECS Tuning | ||||||
| 15 | Hex bolt | TS5X20 SW8 D=22 | 6 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Combination nut | 19 | 07147305178 | Shop at ECS Tuning | ||||||
| 17 | Hex bolt | 2 | 07143448464 | Shop at ECS Tuning | ||||||
| 18 | Expanding rivet | 8 | 07147401727 | Shop at ECS Tuning | ||||||
| 19 | Gasket ring | 2 | 51128497191 | Shop at ECS Tuning | ||||||
| 20 | Clip | M PDC | 2 | 61137849481 | Shop at ECS Tuning | |||||
| 21 | Left protection foil | 1 | 51129450385 | Shop at ECS Tuning | ||||||
| 21 | Right protection foil | 1 | 51129450386 | Shop at ECS Tuning | ||||||
