Window mounting parts for BMW 3 Series G20 Sedan 330e (2022)

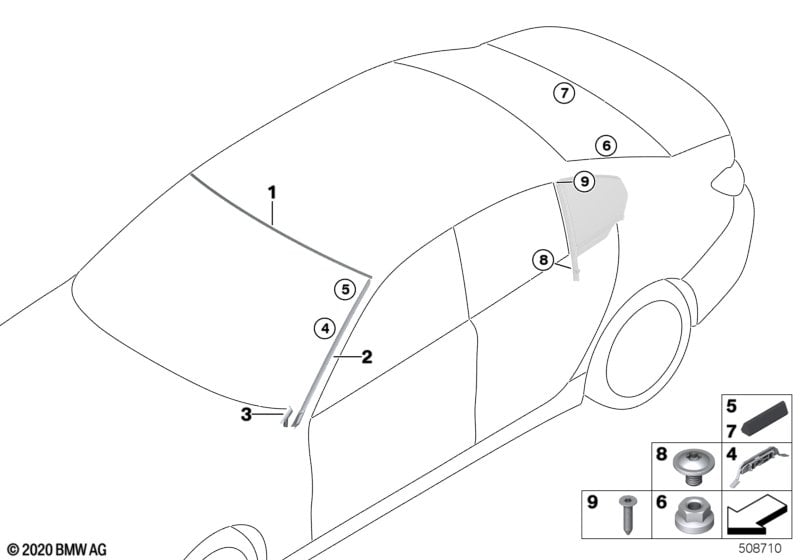

This Window mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Upper rear window cover omitted - Use buffer |
|||||||||
| 01 | Cover, windshield, top | 1 | 51317427861 | Shop at ECS Tuning | ||||||
| 02 | Drip moulding, left | SCHWARZ MATT | 1 | 51317427873 | Shop at ECS Tuning | |||||
| 02 | Drip molding, right | SCHWARZ MATT | 1 | 51317427874 | Shop at ECS Tuning | |||||
| 03 | Water accessory element, left | 1 | 51319466591 | Shop at ECS Tuning | ||||||
| 03 | Water accessory element, right | 1 | 51319466592 | Shop at ECS Tuning | ||||||
| 04 | Clip, drip molding | 10 | 51317437711 | Shop at ECS Tuning | ||||||
| 05 | Bump stop | 2 | 51317288462 | Shop at ECS Tuning | ||||||
| 06 | Hex nut wiht flange | M6 | 1 | 41248147832 | $0.30 | Shop at ECS Tuning | ||||
| 07 | Bump stop | 11 | 51317288462 | Shop at ECS Tuning | ||||||
| 08 | Torx-bolt with washer | M6X8 | 6 | 41357042973 | $0.87 | Shop at ECS Tuning | ||||
| 09 | Csk.lenshead screw | M4,2X19 | 2 | 07119905911 | $0.25 | Shop at ECS Tuning | ||||
