Armrest, centre console for BMW 2 Series G87 M2 M2 (2025)

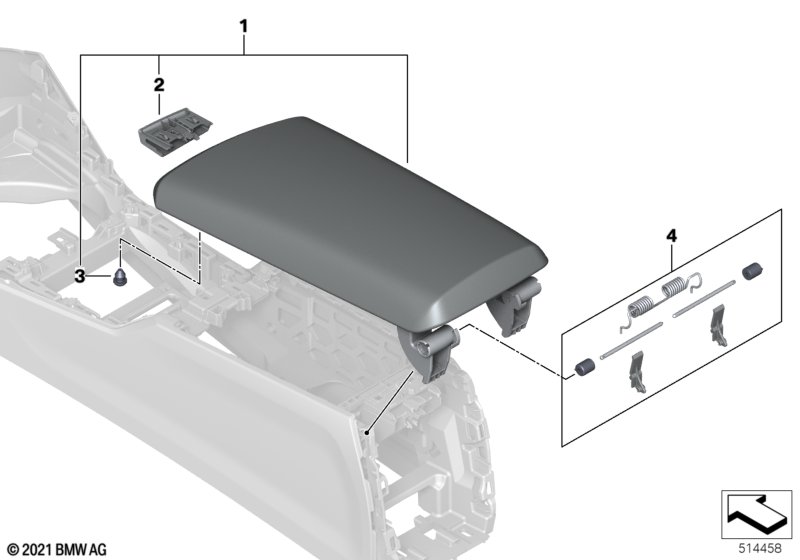

This Armrest, centre console technical drawing provides a detailed breakdown of the assembly for the 2 Series G87 M2 M2. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather, Vernasca, cognac, gy stitching |
MAPQ=Yes |
|||||||||
| 01 | Center armrest leather+contrast stitch. | COGNAC | 1 | 51169870474 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather, Vernasca, black, blue stitching |
MANL=Yes |
|||||||||
| 01 | Center armrest leather+contrast stitch. | SCHWARZ | 1 | 51169870475 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Vernasca Black / Accent Red |
MAL3=Yes |
|||||||||
| 01 | Center armrest leather+contrast stitch. | SCHWARZ | 1 | 51165A93988 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather, Vernasca, black, gray stitching or Full leather Merino/black |
MAMM=Yes X3MM=Yes |
|||||||||
| 01 | Center armrest leather+contrast stitch. | SCHWARZ | 1 | 51169870470 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth Hevelius/anthracite or Cloth Black M PerformTex with M piping or Fabric sensatec./ black or Alcantara sensatec.black / blue or Sensatec perf./black contrast stitching or Sensatec perforated/black |
EHAT=Yes EPMI=Yes KFSW=Yes KGNL=Yes KHNL=Yes KHSW=Yes |
|||||||||
| 01 | Center armrest | SCHWARZ | 1 | 07/2021 | 51165A19765 | NoS | Shop at ECS Tuning | |||
| 02 | Trim cover, lock, center armrest | 1 | 51169483595 | NoS | Shop at ECS Tuning | |||||
| 03 | Buffer stop f center armrest cover | 1 | 51167911462 | NoS | Shop at ECS Tuning | |||||
| 04 | Set, retaining elements, center armrest | 1 | 51169483596 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
