Trim and seals for door, rear for BMW 3 Series G20 Sedan 330e (2022)

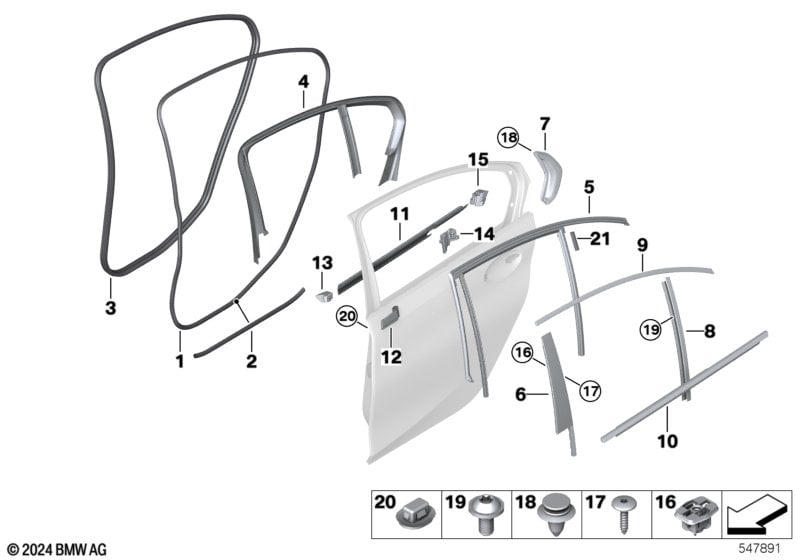

This Trim and seals for door, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.

Trim and seals for door, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Door weatherstrip 2 51769466618 Shop at ECS Tuning
01 Door weatherstrip 2 51727390750 Shop at ECS Tuning
only in conjunction with
-- Set of templates, door, rear 1 01299466617 Shop at ECS Tuning
Note: Observe new repair instructions
5171003!
02 Partial replacement, door weatherstrip 2 51765B68FC5 Shop at ECS Tuning
03 Edge protection, door, rear 2 51727497913 Shop at ECS Tuning
04 Trim, window frame, door, rear left 1 51359483227 Shop at ECS Tuning
04 Cover for window frame, door, rear right 1 51359483228 Shop at ECS Tuning
05 Window guide, left rear door 1 51357407405 Shop at ECS Tuning
05 Window guide, right rear door 1 51357407406 Shop at ECS Tuning
For vehicles with
Sport Line
and
Modell Sport Line
and
Modell Luxury Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line
P7ACA=Yes

P7LDA=Yes

P7LEA=Yes

P7S2A=Yes

S3MBA=Yes

S760A=Yes
06 Finisher window frame B-pillar RL door SHADOWLINE 1 51437465139 Shop at ECS Tuning
06 Finisher window frame B-pillar RR door SHADOWLINE 1 51437465140 Shop at ECS Tuning
For vehicles with
Sport Line
and
Modell Sport Line
and
Modell Luxury Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line
P7ACA=No

P7LDA=No

P7LEA=No

P7S2A=No

S3MBA=No

S760A=No
06 Finisher window frame B-pillar RL door 1 51357407425 Shop at ECS Tuning
06 Finisher window frame B-pillar RR door 1 51357407426 Shop at ECS Tuning
For vehicles with
Indiv. Ext. Line, burnished aluminium
S3MBA=Yes
07 Cover column C left ALU MATT 1 51437465155 Shop at ECS Tuning
07 Cover column C right ALU MATT 1 51437465156 Shop at ECS Tuning
For vehicles with
Sport Line
and
Modell Sport Line
and
High gloss shadow line
P7ACA=Yes

P7LDA=Yes

S760A=Yes
07 Cover column C left SHADOWLINE 1 51437465157 Shop at ECS Tuning
07 Cover column C right SHADOWLINE 1 51437465158 Shop at ECS Tuning
For vehicles with
Sport Line
and
Modell Sport Line
and
Modell Luxury Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line
P7ACA=No

P7LDA=No

P7LEA=Yes

P7S2A=Yes

S3MBA=No

S760A=No
07 Cover column C left CHROM 1 51137449355 Shop at ECS Tuning
07 Cover column C right CHROM 1 51137449356 Shop at ECS Tuning
For vehicles with
Sport Line
and
Modell Sport Line
and
Modell Luxury Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line
P7ACA=No

P7LDA=No

P7LEA=No

P7S2A=No

S3MBA=No

S760A=No
07 Cover column C left SCHWARZ 1 51137449353 Shop at ECS Tuning
07 Cover column C right SCHWARZ 1 51137449354 Shop at ECS Tuning
For vehicles with
Sport Line
and
Modell Luxury Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line
P7ACA=No

P7LEA=No

P7S2A=No

S3MBA=No

S760A=No
08 Window guide web cover left 1 51357407429 Shop at ECS Tuning
08 Window guide web cover right 1 51357407430 Shop at ECS Tuning
For vehicles with
Sport Line
and
Modell Sport Line
and
Modell Luxury Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line
P7ACA=Yes

P7LDA=Yes

P7LEA=Yes

P7S2A=Yes

S3MBA=Yes

S760A=Yes
08 Trim window guide rail rear left BLACK 1 51437465141 Shop at ECS Tuning
08 Trim window guide rail rear right BLACK 1 51437465142 Shop at ECS Tuning
For vehicles with
Indiv. Ext. Line, burnished aluminium
S3MBA=Yes
09 Finisher window frame top RL door ALU 1 51337465167 Shop at ECS Tuning
09 Finisher window frame top RR door ALU 1 51337465168 Shop at ECS Tuning
For vehicles with
High gloss shadow line
S760A=Yes
09 Finisher window frame top RL door SHADOWLINE 1 51337465171 Shop at ECS Tuning
09 Finisher window frame top RR door SHADOWLINE 1 51337465172 Shop at ECS Tuning
For vehicles with
Sport Line
and
Modell Luxury Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line
P7ACA=No

P7LEA=Yes

P7S2A=Yes

S3MBA=No

S760A=No
09 Finisher window frame top RL door CHROM 1 51357407409 Shop at ECS Tuning
09 Finisher window frame top RR door CHROM 1 51357407410 Shop at ECS Tuning
For vehicles with
Sport Line
and
Modell Sport Line
and
Modell Luxury Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line
P7ACA=No

P7LDA=No

P7LEA=No

P7S2A=No

S3MBA=No

S760A=No
09 Finisher window frame top RL door SCHWARZ 1 51357485821 Shop at ECS Tuning
09 Finisher window frame top RR door SCHWARZ 1 51357485822 Shop at ECS Tuning
For vehicles with
Indiv. Ext. Line, burnished aluminium
S3MBA=Yes
10 Shaft cover rear door left ALU 1 51337465147 Shop at ECS Tuning
10 Shaft cover rear door right ALU 1 51337465148 Shop at ECS Tuning
For vehicles with
Sport Line
and
Modell Sport Line
and
High gloss shadow line
P7ACA=Yes

P7LDA=Yes

S760A=Yes
10 Shaft cover rear door left SHADOWLINE 1 51337465151 Shop at ECS Tuning
10 Shaft cover rear door right SHADOWLINE 1 51337465152 Shop at ECS Tuning
For vehicles with
Sport Line
and
Modell Sport Line
and
Modell Luxury Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line
P7ACA=Yes

P7LDA=Yes

P7LEA=Yes

P7S2A=Yes

S3MBA=Yes

S760A=Yes
10 Shaft cover rear door left CHROM 1 51357407417 Shop at ECS Tuning
10 Shaft cover rear door right CHROM 1 51357407418 Shop at ECS Tuning
For vehicles with
Sport Line
and
Modell Sport Line
and
Modell Luxury Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line
P7ACA=No

P7LDA=No

P7LEA=No

P7S2A=No

S3MBA=No

S760A=No
10 Shaft cover rear door left SCHWARZ 1 51357407415 Shop at ECS Tuning
10 Shaft cover rear door right SCHWARZ 1 51357407416 Shop at ECS Tuning
11 Window cavity seal rear door left 1 51357407421 Shop at ECS Tuning
11 Window cavity seal rear door right 1 51357407422 Shop at ECS Tuning
12 Sealing B-pillar rear door left 1 51357407433 Shop at ECS Tuning
12 Sealing B-pillar rear door right 1 51357407434 Shop at ECS Tuning
13 Sealing B-pillar trim pan.rear door le. 1 51357437453 Shop at ECS Tuning
13 Sealing B-pillar trim pan.rear door ri. 1 51357437454 Shop at ECS Tuning
14 Seal, door entry, rear left 1 51357437449 Shop at ECS Tuning
14 Entry seal door, rear right 1 51357437450 Shop at ECS Tuning
15 Seal, C-pillar, left 1 51358498133 Shop at ECS Tuning
15 Seal, C-pillar, right 1 51358498134 Shop at ECS Tuning
16 Clip 8 51337140714 Shop at ECS Tuning
17 Fillister head screw 8 07147453046 Shop at ECS Tuning
18 Clip 1 51137497365 Shop at ECS Tuning
19 Fillister head screw M4X8 6 07129909295 Shop at ECS Tuning
20 Plug-in retainer 4 07147376600 Shop at ECS Tuning
21 Acoustic foam 2 51355A3BB59 Shop at ECS Tuning
