Closing system, door, rear for BMW 3 Series G20 Sedan 320d (2022)

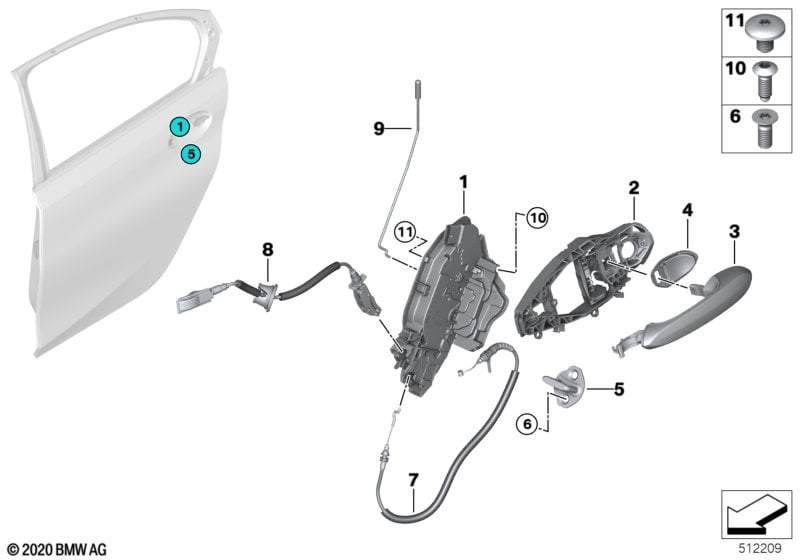

This Closing system, door, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Thiefproofing device |
S8TGA=No |
|||||||||
| 01 | Door lock, rear left | 1 | 51227445045 | Shop at ECS Tuning | ||||||
| 01 | Door lock, rear right | 1 | 51227445046 | Shop at ECS Tuning | ||||||
| For vehicles with Thiefproofing device |
S8TGA=Yes |
|||||||||
| 01 | Door lock, rear left | 1 | 51227445053 | Shop at ECS Tuning | ||||||
| 01 | Door lock, rear right | 1 | 51227445054 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access |
S322A=No |
|||||||||
| 02 | Carrier, outside door handle, left | 1 | 51217439219 | ENDED | Shop at ECS Tuning | |||||
| 02 | Carrier, outside door handle, right | 1 | 51217439220 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 02 | Carrier, outside door handle, left | CA | 1 | 51217439221 | ENDED | Shop at ECS Tuning | ||||
| 02 | Carrier, outside door handle, right | CA | 1 | 51217439222 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Comfort access |
S322A=No |
|||||||||
| 03 | Door handle, primed, outer left | OVT | 1 | 51219491457 | Shop at ECS Tuning | |||||
| 03 | Door handle, primed, outer right | OVT | 1 | 51219491458 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 03 | Door handle, primed, outer left | CA / OVT | 1 | 51219491461 | Shop at ECS Tuning | |||||
| 03 | Door handle, primed, outer right | CA / OVT | 1 | 51219491462 | Shop at ECS Tuning | |||||
| 04 | Cover for grip, lower left | RHD | 1 | 51217497721 | Shop at ECS Tuning | |||||
| 04 | Cover for grip, lower right | LHD | 1 | 51217497722 | Shop at ECS Tuning | |||||
| 05 | Striker without base | 2 | 51217446788 | Shop at ECS Tuning | ||||||
| 06 | Torx-countersunk head screw | ISA M8X28 | 4 | 51217130110 | $0.52 | Shop at ECS Tuning | ||||
| 07 | Bowden cable, outside door handle | 2 | 51227432224 | Shop at ECS Tuning | ||||||
| 08 | Rear door handle bowden cable | 2 | 51227432227 | Shop at ECS Tuning | ||||||
| 09 | Operating rod, door rear left | 1 | 51227432225 | Shop at ECS Tuning | ||||||
| 09 | Operating rod, door rear right | 1 | 51227432226 | Shop at ECS Tuning | ||||||
| 10 | Csk.fillister head srew | 6 | 07147490260 | Shop at ECS Tuning | ||||||
| 11 | Torx-bolt with washer | ISA M8X12 | 2 | 07149149652 | $0.45 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
