Left trunk trim for BMW 3 Series G20 Sedan LCI 330e (2022)

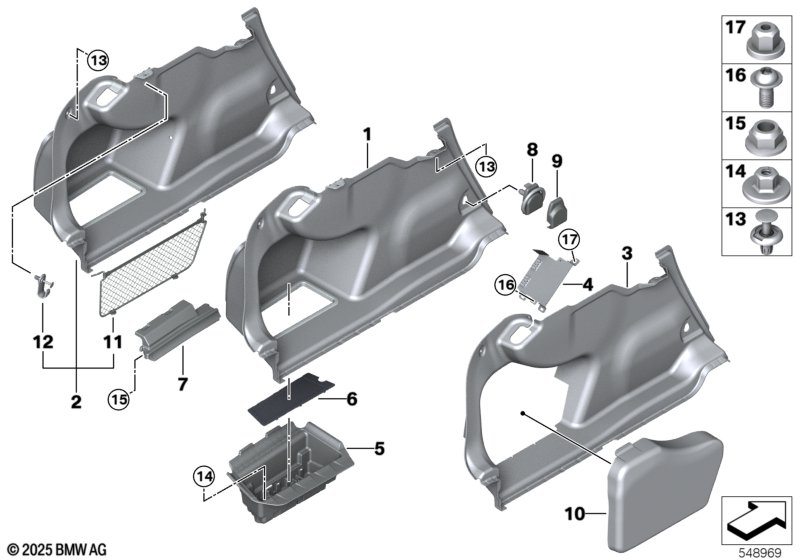

This Left trunk trim technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Left trunk trim | PHEV | 1 | 51477910893 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Additional energy supply |
S146A=Yes |
|||||||||
| 04 | Control unit bracket | 1 | 61358099503 | NoS | Shop at ECS Tuning | |||||
| 05 | Storage com.lugg.com.trim panel left | PHEV | 1 | 51477884643 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 05 | Storage comp.luggage comp.trim panel | 1 | 51477464682 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=No |
|||||||||
| 05 | Storage comp.luggage comp.trim panel | 1 | 51477438306 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply |
S146A=No |
|||||||||
| 06 | Cover, storage compartment | 1 | 51477438305 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply and Harman/Kardon Surround Sound system |
S146A=No S688A=No |
|||||||||
| 07 | Scoop rear ventilation | 1 | 51477454195 | NoS | Shop at ECS Tuning | |||||
| 08 | Tie-down ring | 2 | 51477438824 | Shop at ECS Tuning | ||||||
| 09 | Cover, fastening loop | 1 | 51477464192 | NoS | Shop at ECS Tuning | |||||
| 11 | Net storage compartment left | PHEV | 1 | 51475A67861 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 12 | Hook | 1 | 51477258562 | Shop at ECS Tuning | ||||||
| 13 | Expanding rivet | 4 | 07147401727 | Shop at ECS Tuning | ||||||
| 14 | Plastic capnut with washer | D=22MM | 2 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| For vehicles with Additional energy supply |
S146A=Yes |
|||||||||
| 14 | Hex nut | BM6-8-ZNS3 | 1 | 07129904870 | $0.36 | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=No |
|||||||||
| 15 | Hex nut | M6-8-ZNS3 | 1 | 07119902751 | $0.56 | Shop at ECS Tuning | ||||
| For vehicles with Additional energy supply |
S146A=Yes |
|||||||||
| 16 | Fillister head screw with collar | M6X10 | 2 | 07147077846 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Plastic nut for coarse threaded pin | M6 | 3 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
