Right TRUNK TRIM for BMW 3 Series G28 Sedan LCI 330Li (2025)

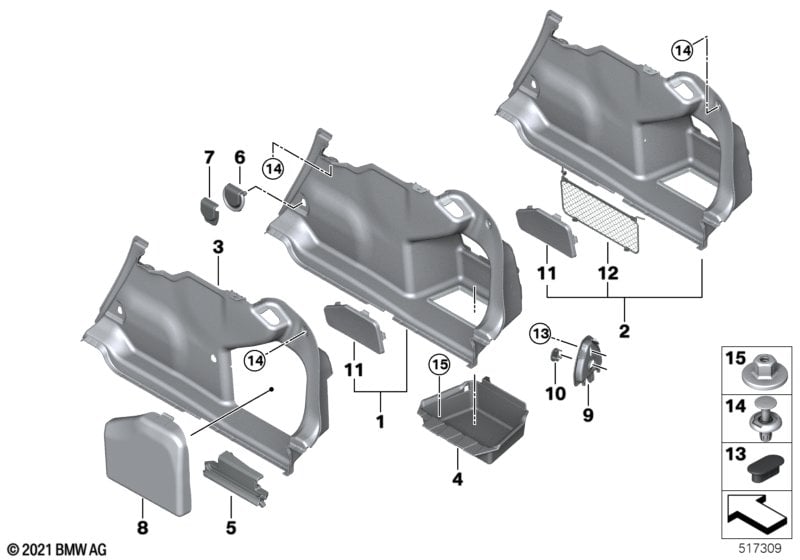

This Right TRUNK TRIM technical drawing provides a detailed breakdown of the assembly for the 3 Series G28 Sedan LCI 330Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Right TRUNK TRIM | 1 | 51477465410 | NoS | Shop at ECS Tuning | |||||
| 04 | Storage comp luggage comp.trim pan.ri. | 1 | 51477451292 | NoS | Shop at ECS Tuning | |||||
| 05 | Scoop rear ventilation | 1 | 51477454196 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Emergency spare wheel |
S300A=Yes |
|||||||||
| 06 | Tie-down ring | 1 | 51477438824 | Shop at ECS Tuning | ||||||
| 07 | Cover, fastening loop | 1 | 51477464192 | NoS | Shop at ECS Tuning | |||||
| 14 | Expanding rivet | 5 | 07147401727 | Shop at ECS Tuning | ||||||
| 15 | Plastic capnut with washer | D=22MM | 2 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G28 Sedan LCI 330Li Right TRUNK TRIM?
- This technical diagram illustrates the Right TRUNK TRIM within the Vehicle trim group for the 3 Series G28 Sedan LCI 330Li produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Right TRUNK TRIM (Part #51477465410).
- Which models use the hardware listed in this Right TRUNK TRIM?
- The hardware and components featured in the Right TRUNK TRIM are specific to the 3 Series G28 Sedan LCI 330Li produced during 2025. These technical specifications ensure that parts like the Right TRUNK TRIM (51477465410) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Right TRUNK TRIM assembly?
- Each item in the Right TRUNK TRIM corresponds to the numbered list below the illustration. For the 3 Series G28 Sedan LCI 330Li, you can identify the Right TRUNK TRIM by locating its position on the schematic, which then links to the official BMW part number 51477465410 for the Vehicle trim section.
