Trim panel, trunk floor for BMW 3 Series G28 Sedan 320Li (2021)

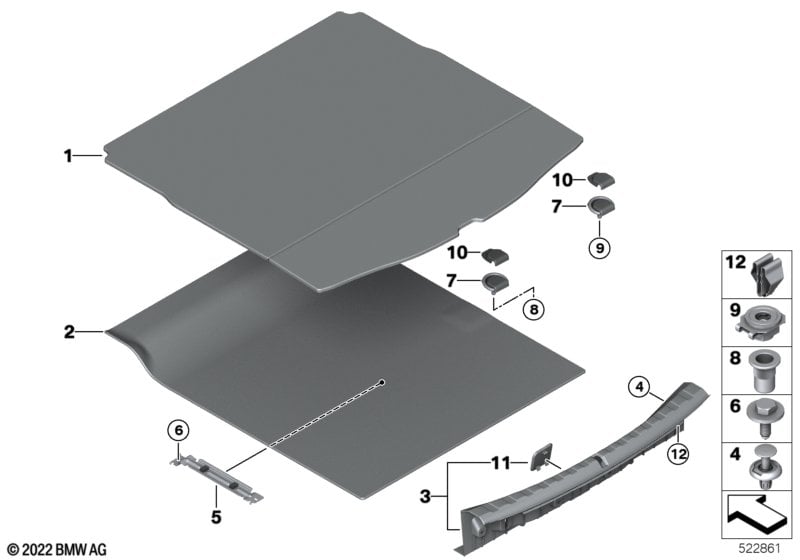

This Trim panel, trunk floor technical drawing provides a detailed breakdown of the assembly for the 3 Series G28 Sedan 320Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Emergency spare wheel |
S300A=Yes |
|||||||||
| 01 | Floor carpet, luggage compartment | NOTRAD | 1 | 51477459022 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Emergency spare wheel |
S300A=No |
|||||||||
| 02 | Floor carpet, luggage compartment | 1 | 51477438290 | NoS | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 03 | Loading sill cover | 1 | 51477465411 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 03 | Loading sill cover | 1 | 51477465411 | NoS | Shop at ECS Tuning | |||||
| 04 | Expanding rivet | 4 | 07147401727 | Shop at ECS Tuning | ||||||
| 05 | Support, luggage compartment floor panel | 1 | 51476994489 | Shop at ECS Tuning | ||||||
| 06 | Self-locking hex bolt | M6 | 2 | 07146961201 | $1.17 | Shop at ECS Tuning | ||||
| For vehicles with Emergency spare wheel |
S300A=Yes |
|||||||||
| 07 | Tie-down ring | 4 | 51477438824 | Shop at ECS Tuning | ||||||
| 08 | Blind rivet nut | M8 ZNNIV SI | 2 | 31106852257 | Shop at ECS Tuning | |||||
| 09 | Clip | M8 | 2 | 41517211588 | NoS | Shop at ECS Tuning | ||||
| 10 | Cover, fastening loop | 4 | 51477464192 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G28 Sedan 320Li Trim panel, trunk floor?
- This technical diagram illustrates the Trim panel, trunk floor within the Vehicle trim group for the 3 Series G28 Sedan 320Li produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Floor carpet, luggage compartment (Part #51477459022).
- Which models use the hardware listed in this Trim panel, trunk floor?
- The hardware and components featured in the Trim panel, trunk floor are specific to the 3 Series G28 Sedan 320Li produced during 2021. These technical specifications ensure that parts like the Floor carpet, luggage compartment (51477459022) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trim panel, trunk floor assembly?
- Each item in the Trim panel, trunk floor corresponds to the numbered list below the illustration. For the 3 Series G28 Sedan 320Li, you can identify the Floor carpet, luggage compartment by locating its position on the schematic, which then links to the official BMW part number 51477459022 for the Vehicle trim section.
