Floor covering for BMW 3 Series G20 Sedan LCI 330e (2024)

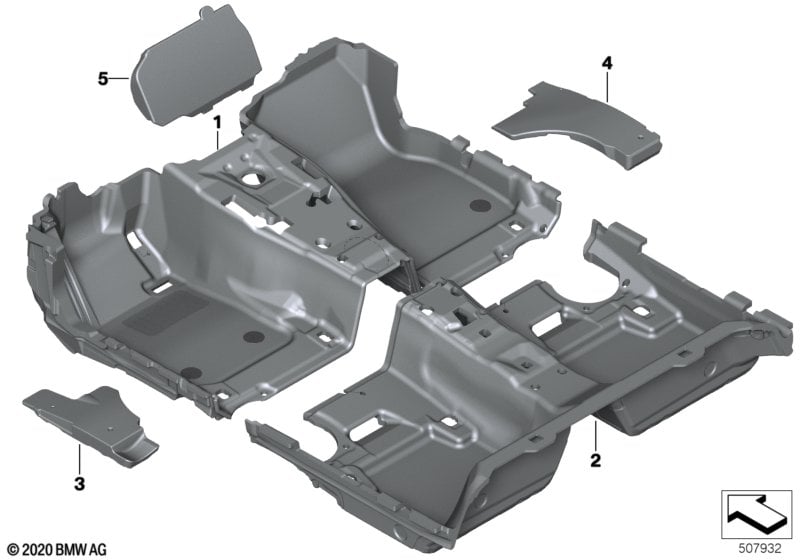

This Floor covering technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor trim cover, front | SCHWARZ | 1 | 51477483083 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M Sports package and M Sport exterior trim and M Aerodynamics package |
P337A=Yes P33CA=No S715A=Yes |
|||||||||
| 01 | Floor trim cover, front | M SCHWARZ | 1 | 51478092737 | NoS | Shop at ECS Tuning | ||||
| 02 | Floor covering rear | SCHWARZ | 1 | 51477483082 | NoS | Shop at ECS Tuning | ||||
| 03 | Insert, front left | 1 | 51477443141 | NoS | Shop at ECS Tuning | |||||
| 04 | Insert, front right | 1 | 51477443142 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan LCI 330e Floor covering?
- This technical diagram illustrates the Floor covering within the Vehicle trim group for the 3 Series G20 Sedan LCI 330e produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Floor trim cover, front (Part #51477483083).
- Which models use the hardware listed in this Floor covering?
- The hardware and components featured in the Floor covering are specific to the 3 Series G20 Sedan LCI 330e produced during 2024. These technical specifications ensure that parts like the Floor trim cover, front (51477483083) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Floor covering assembly?
- Each item in the Floor covering corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan LCI 330e, you can identify the Floor trim cover, front by locating its position on the schematic, which then links to the official BMW part number 51477483083 for the Vehicle trim section.
