Glazing for BMW 1 Series F40 118d

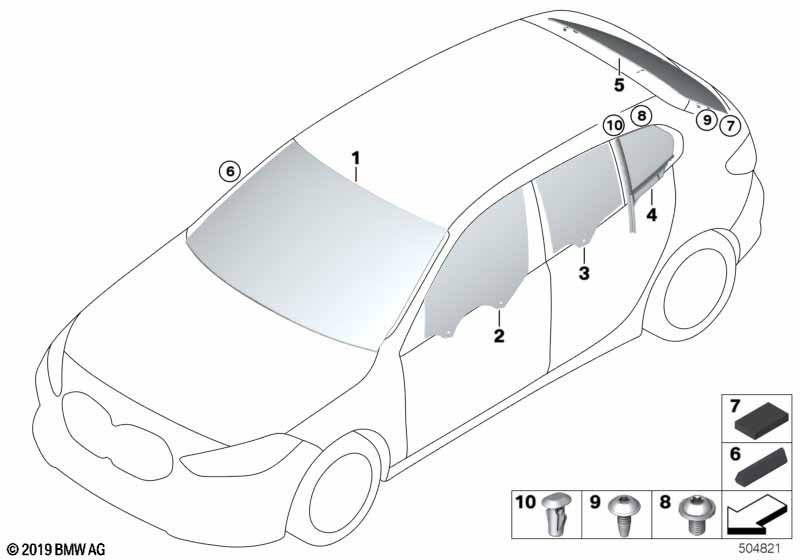

This Glazing technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 118d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China and High-beam assistant and Active Guard Plus and Driving Assistant and Active cruise control+Stop&Go function and Head-up display |
L8AAA=Yes S5ACA=No S5AQA=No S5ASA=No S5DFA=No S610A=No |
|||||||||
| 01 | Windshield, green, rain/light/fog | AKUSTIK | 1 | 51317463721 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Bump stop | 2 | 51317288462 | Shop at ECS Tuning | ||||||
| -- | Clip, drip molding | 20 | 51317437711 | Shop at ECS Tuning | ||||||
| -- | Cover, windshield, top | 1 | 51317453936 | Shop at ECS Tuning | ||||||
| -- | Sound insulation windshield | L=1321MM | 2 | 51489475105 | Shop at ECS Tuning | |||||
| For vehicles with National version China and High-beam assistant and Active Guard Plus and Driving Assistant and Active cruise control+Stop&Go function and Head-up display |
L8AAA=Yes S5ACA=Yes S5AQA=Yes S5ASA=Yes S5DFA=Yes S610A=No |
|||||||||
| 01 | Windshield, green, rain/light/fog | KAFAS/AKUSTIK | 1 | 51317463722 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Bump stop | 2 | 51317288462 | Shop at ECS Tuning | ||||||
| -- | Clip, drip molding | 20 | 51317437711 | Shop at ECS Tuning | ||||||
| -- | Cover, windshield, top | 1 | 51317453936 | Shop at ECS Tuning | ||||||
| -- | Sound insulation windshield | L=1321MM | 2 | 51489475105 | Shop at ECS Tuning | |||||
| For vehicles with National version China and High-beam assistant and Active Guard Plus and Driving Assistant and Active cruise control+Stop&Go function and Head-up display |
L8AAA=Yes S5ACA=Yes S5AQA=Yes S5ASA=Yes S5DFA=Yes S610A=Yes |
|||||||||
| 01 | Windshield, green, rain/light/fog | KAFAS/HUD/AKUST | 1 | 51317463733 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Bump stop | 2 | 51317288462 | Shop at ECS Tuning | ||||||
| -- | Clip, drip molding | 20 | 51317437711 | Shop at ECS Tuning | ||||||
| -- | Cover, windshield, top | 1 | 51317453936 | Shop at ECS Tuning | ||||||
| -- | Sound insulation windshield | L=1321MM | 2 | 51489475105 | Shop at ECS Tuning | |||||
| For vehicles with National version China and High-beam assistant and Active Guard Plus and Driving Assistant and Active cruise control+Stop&Go function and Head-up display |
L8AAA=No S5ACA=No S5AQA=No S5ASA=No S5DFA=No S610A=Yes |
|||||||||
| 01 | Windshield, green, rain/light/fog | KAFAS/AKUSTIK | 1 | 51317463723 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Bump stop | 2 | 51317288462 | Shop at ECS Tuning | ||||||
| -- | Clip, drip molding | 20 | 51317437711 | Shop at ECS Tuning | ||||||
| -- | Cover, windshield, top | 1 | 51317453936 | Shop at ECS Tuning | ||||||
| -- | Sound insulation windshield | L=1321MM | 2 | 51489475105 | NoS | Shop at ECS Tuning | ||||
| 02 | Side window, door, left front | ESG | 1 | 51337448059 | Shop at ECS Tuning | |||||
| 02 | Side window, door, right front | ESG | 1 | 51337448060 | Shop at ECS Tuning | |||||
| For vehicles with Sun protection glazing |
S420A=No |
|||||||||
| 03 | Side window, door, left rear | ESG | 1 | 51357448061 | Shop at ECS Tuning | |||||
| 03 | Side window, door, rear right | ESG | 1 | 51357448062 | Shop at ECS Tuning | |||||
| For vehicles with Sun protection glazing |
S420A=Yes |
|||||||||
| 03 | Side window, door, left rear | SSG | 1 | 51357469091 | Shop at ECS Tuning | |||||
| 03 | Side window, door, rear right | SSG | 1 | 51357469092 | Shop at ECS Tuning | |||||
| For vehicles with Sun protection glazing |
S420A=No |
|||||||||
| 04 | Side window, rigid, rear left | 1 | 51357452413 | Shop at ECS Tuning | ||||||
| 04 | Side window, rigid, rear right | 1 | 51357452414 | Shop at ECS Tuning | ||||||
| For vehicles with Sun protection glazing |
S420A=Yes |
|||||||||
| 04 | Side window, rigid, rear left | SSG | 1 | 51357452415 | Shop at ECS Tuning | |||||
| 04 | Side window, rigid, rear right | SSG | 1 | 51357452416 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=No S420A=Yes |
|||||||||
| 05 | Rear window green | SSG | 1 | 51315A20760 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=No S420A=No |
|||||||||
| 05 | Rear window green | ESG | 1 | 51315A20759 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| 06 | Bump stop | 6 | 51317288462 | Shop at ECS Tuning | ||||||
| 07 | Hook&loop fastener | 8 | 51377164933 | $0.57 | Shop at ECS Tuning | |||||
| 08 | Fillister head screw | 6 | 07149909490 | Shop at ECS Tuning | ||||||
| 09 | Sheet metal screw | ISA M5X12 | 2 | 07149158177 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Clip | 2 | 51359880687 | Shop at ECS Tuning | ||||||
