Door window lifting mechanism rear for BMW 1 Series F40 118d

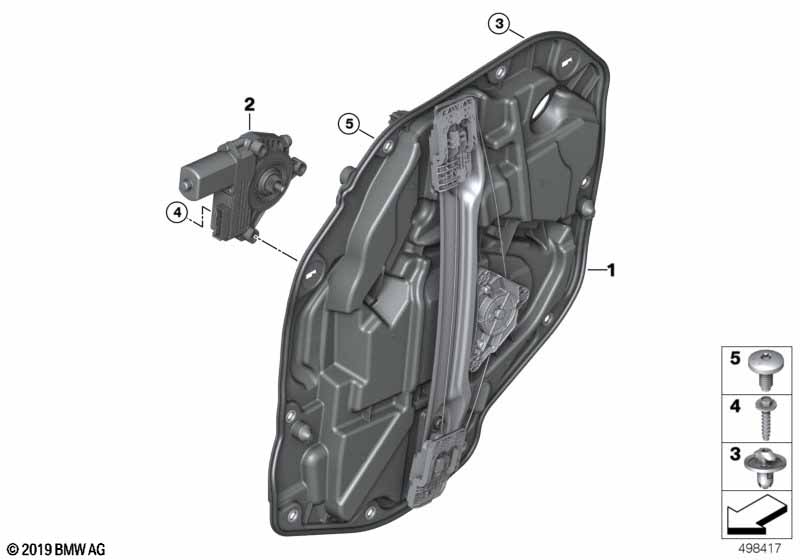

This Door window lifting mechanism rear technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 118d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier, door rear left | 1 | 51337465243 | Shop at ECS Tuning | ||||||
| 01 | Carrier, door rear right | 1 | 51337465244 | Shop at ECS Tuning | ||||||
| 01 | Carrier, door rear left | 1 | 06/2024 | 51335A638E5 | Shop at ECS Tuning | |||||
| 01 | Carrier, door rear right | 1 | 06/2024 | 51335A638E6 | Shop at ECS Tuning | |||||
| 02 | Drive, window lifter, rear left | 1 | 11/2019 | 61359853147 | ENDED | Shop at ECS Tuning | ||||
| 02 | Drive, window lifter, rear right | 1 | 11/2019 | 61359853148 | ENDED | Shop at ECS Tuning | ||||
| 02 | Drive, window lifter, rear left | 1 | 61355A02D63 | Shop at ECS Tuning | ||||||
| 02 | Drive, window lifter, rear right | 1 | 61355A02D64 | Shop at ECS Tuning | ||||||
| 03 | Lock | 20 | 51339481249 | Shop at ECS Tuning | ||||||
| 04 | Screw | 3 | 51339481250 | Shop at ECS Tuning | ||||||
| 05 | Fillister head screw | M6 | 16 | 07147465017 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F40 118d Door window lifting mechanism rear?
- This technical diagram illustrates the Door window lifting mechanism rear within the Vehicle trim group for the 1 Series F40 118d. It provides a detailed exploded view of the components, identifying key parts such as the Carrier, door rear left (Part #51337465243).
- Which models use the hardware listed in this Door window lifting mechanism rear?
- The hardware and components featured in the Door window lifting mechanism rear are specific to the 1 Series F40 118d. These technical specifications ensure that parts like the Carrier, door rear left (51337465243) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door window lifting mechanism rear assembly?
- Each item in the Door window lifting mechanism rear corresponds to the numbered list below the illustration. For the 1 Series F40 118d, you can identify the Carrier, door rear left by locating its position on the schematic, which then links to the official BMW part number 51337465243 for the Vehicle trim section.
