Mounting parts, door trim, rear for BMW 3 Series G20 Sedan LCI 330e (2024)

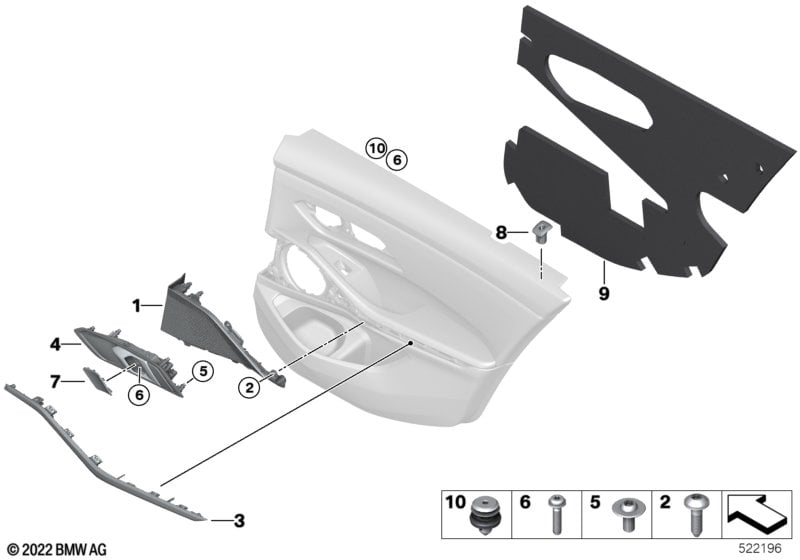

This Mounting parts, door trim, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.

Mounting parts, door trim, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Harman/Kardon Surround Sound system
S688A=No
01 Left rear loudspeaker cover BLACK 1 51428494255 NoS Shop at ECS Tuning
01 Rear right loudspeaker cover BLACK 1 51428494256 NoS Shop at ECS Tuning
For vehicles with
Harman/Kardon Surround Sound system
S688A=Yes
01 Left rear loudspeaker cover 1 51427447243 NoS Shop at ECS Tuning
01 Rear right loudspeaker cover 1 51427447244 NoS Shop at ECS Tuning
02 Fillister head screw with collar M4X14 6 46637659479 $1.20 Shop at ECS Tuning
For vehicles with
Ambient interior lighting
Accent strip in ASSY fiber-optic
conductor included
S4URA=Yes
03 Fiber optic cbl.outline, door, rear LT 1 63316999931 Shop at ECS Tuning
03 Fiber-opt.cable outline door rear right 1 63316999932 Shop at ECS Tuning
For vehicles with
Interior trim finishers black high-gloss
and
Fine-wood trim Oak grain, open-cell
and
Fine wood trim maple, open-pored
and
Fine wood trim ash grain, gy.br.hi.gl.
and
Interior trim, aluminum tetragon
and
Interior trim, aluminum mesh effect
and
INT. TRIM AL. RHOMBICLE ANTHR.
and
Interior strips, piano lacquer, black
and
Ambient interior lighting
S4ATA=No

S4KAA=No

S4KBA=No

S4KCA=No

S4KKA=No

S4KLA=No

S4LNA=No

S4MLA=No

S4URA=No
03 Accent molding, rear left 1 51427447225 NoS Shop at ECS Tuning
03 Accent modling, rear right 1 51427447226 NoS Shop at ECS Tuning
For vehicles with
Interior trim finishers black high-gloss
and
Fine-wood trim Oak grain, open-cell
and
Fine wood trim maple, open-pored
and
Fine wood trim ash grain, gy.br.hi.gl.
and
Interior trim, aluminum tetragon
and
Interior trim, aluminum mesh effect
and
INT. TRIM AL. RHOMBICLE ANTHR.
and
Interior strips, piano lacquer, black
and
Ambient interior lighting
S4ATA=Yes

S4KAA=Yes

S4KBA=Yes

S4KCA=Yes

S4KKA=Yes

S4KLA=Yes

S4LNA=Yes

S4MLA=Yes

S4URA=No
03 Accent molding, rear left 1 51427477659 NoS Shop at ECS Tuning
03 Accent modling, rear right 1 51427477660 NoS Shop at ECS Tuning
For vehicles with
Electroplat.cover/clip f.operat.elements
and
Harman/Kardon Surround Sound system
S4U0A=Yes

S688A=Yes
04 Door handle, rear left BLACK 1 51427945693 NoS Shop at ECS Tuning
04 Door handle, rear right BLACK 1 51427945694 NoS Shop at ECS Tuning
For vehicles with
Interior trim finishers black high-gloss
and
Fine-wood trim Oak grain, open-cell
and
Fine wood trim maple, open-pored
and
Fine wood trim ash grain, gy.br.hi.gl.
and
Interior trim, aluminum tetragon
and
Interior trim, aluminum mesh effect
and
Interior moldings Carbon Fibre
and
Interior strips, piano lacquer, black
and
Harman/Kardon Surround Sound system
S4ATA=No

S4KAA=No

S4KBA=No

S4KCA=No

S4KKA=No

S4KLA=No

S4MCA=No

S4MLA=No

S688A=Yes
04 Door handle, rear left BLACK 1 51428494307 NoS Shop at ECS Tuning
04 Door handle, rear right BLACK 1 51428494308 NoS Shop at ECS Tuning
For vehicles with
Interior trim finishers black high-gloss
and
Fine-wood trim Oak grain, open-cell
and
Fine wood trim maple, open-pored
and
Fine wood trim ash grain, gy.br.hi.gl.
and
Interior trim, aluminum tetragon
and
Interior trim, aluminum mesh effect
and
INT. TRIM AL. RHOMBICLE ANTHR.
and
Interior moldings Carbon Fibre
and
Interior strips, piano lacquer, black
and
Harman/Kardon Surround Sound system
S4ATA=No

S4KAA=No

S4KBA=No

S4KCA=No

S4KKA=No

S4KLA=No

S4LNA=No

S4MCA=No

S4MLA=No

S688A=No
04 Door handle, rear left BLACK 1 51428494301 NoS Shop at ECS Tuning
04 Door handle, rear right BLACK 1 51428494302 NoS Shop at ECS Tuning
For vehicles with
  Interior trim finishers black high-gloss
  and
  Fine-wood trim Oak grain, open-cell
  and
  Fine wood trim maple, open-pored
  and
  Fine wood trim ash grain, gy.br.hi.gl.
  and
  Interior trim, aluminum tetragon
  and
  Interior trim, aluminum mesh effect
  and
  Interior moldings Carbon Fibre
  and
  Interior strips, piano lacquer, black
  and
  Harman/Kardon Surround Sound system
and
Leather Vernasca/ oyster dec.stitching
S4ATA=Yes

S4KAA=Yes

S4KBA=Yes

S4KCA=Yes

S4KKA=Yes

S4KLA=Yes

S4MCA=Yes

S4MLA=Yes

S688A=Yes

MAOI=Yes
04 Door handle, rear left OYSTER 1 51429458709 NoS Shop at ECS Tuning
04 Door handle, rear right OYSTER 1 51429458710 NoS Shop at ECS Tuning
For vehicles with
Interior trim finishers black high-gloss
and
Fine-wood trim Oak grain, open-cell
and
Fine wood trim maple, open-pored
and
Fine wood trim ash grain, gy.br.hi.gl.
and
Interior trim, aluminum tetragon
and
Interior trim, aluminum mesh effect
and
INT. TRIM AL. RHOMBICLE ANTHR.
and
Interior moldings Carbon Fibre
and
Interior strips, piano lacquer, black
and
Harman/Kardon Surround Sound system
S4ATA=Yes

S4KAA=Yes

S4KBA=Yes

S4KCA=Yes

S4KKA=Yes

S4KLA=Yes

S4LNA=Yes

S4MCA=Yes

S4MLA=Yes

S688A=No
04 Door handle, rear left BLACK 1 51427945687 NoS Shop at ECS Tuning
04 Door handle, rear right BLACK 1 51427945688 NoS Shop at ECS Tuning
For vehicles with
  Interior trim finishers black high-gloss
  and
  Fine-wood trim Oak grain, open-cell
  and
  Fine wood trim maple, open-pored
  and
  Fine wood trim ash grain, gy.br.hi.gl.
  and
  Interior trim, aluminum tetragon
  and
  Interior trim, aluminum mesh effect
  and
  Interior moldings Carbon Fibre
  and
  Interior strips, piano lacquer, black
  and
  Harman/Kardon Surround Sound system
and
Leather Vernasca/ oyster dec.stitching
S4ATA=No

S4KAA=No

S4KBA=No

S4KCA=No

S4KKA=No

S4KLA=No

S4MCA=No

S4MLA=No

S688A=Yes

MAOI=Yes
04 Door handle, rear left OYSTER 1 51429458705 NoS Shop at ECS Tuning
04 Door handle, rear right OYSTER 1 51429458706 NoS Shop at ECS Tuning
For vehicles with
  Interior trim finishers black high-gloss
  and
  Fine-wood trim Oak grain, open-cell
  and
  Fine wood trim maple, open-pored
  and
  Fine wood trim ash grain, gy.br.hi.gl.
  and
  Interior trim, aluminum tetragon
  and
  Interior trim, aluminum mesh effect
  and
  INT. TRIM AL. RHOMBICLE ANTHR.
  and
  Interior moldings Carbon Fibre
  and
  Interior strips, piano lacquer, black
  and
  Harman/Kardon Surround Sound system
and
Leather Vernasca/ oyster dec.stitching
S4ATA=No

S4KAA=No

S4KBA=No

S4KCA=No

S4KKA=No

S4KLA=No

S4LNA=No

S4MCA=No

S4MLA=No

S688A=No

MAOI=Yes
04 Door handle, rear left OYSTER 1 51428494297 NoS Shop at ECS Tuning
04 Door handle, rear right OYSTER 1 51428494298 NoS Shop at ECS Tuning
For vehicles with
  Interior trim finishers black high-gloss
  and
  Fine-wood trim Oak grain, open-cell
  and
  Fine wood trim maple, open-pored
  and
  Fine wood trim ash grain, gy.br.hi.gl.
  and
  Interior trim, aluminum tetragon
  and
  Interior trim, aluminum mesh effect
  and
  INT. TRIM AL. RHOMBICLE ANTHR.
  and
  Interior moldings Carbon Fibre
  and
  Interior strips, piano lacquer, black
  and
  Harman/Kardon Surround Sound system
and
Leather Vernasca/ oyster dec.stitching
S4ATA=Yes

S4KAA=Yes

S4KBA=Yes

S4KCA=Yes

S4KKA=Yes

S4KLA=Yes

S4LNA=Yes

S4MCA=Yes

S4MLA=Yes

S688A=No

MAOI=Yes
04 Door handle, rear left OYSTER 1 51427945683 NoS Shop at ECS Tuning
04 Door handle, rear right OYSTER 1 51427945684 NoS Shop at ECS Tuning
For vehicles with
  Interior trim finishers black high-gloss
  and
  Fine-wood trim Oak grain, open-cell
  and
  Fine wood trim maple, open-pored
  and
  Fine wood trim ash grain, gy.br.hi.gl.
  and
  Interior trim, aluminum tetragon
  and
  Interior trim, aluminum mesh effect
  and
  Interior moldings Carbon Fibre
  and
  Interior strips, piano lacquer, black
  and
  Harman/Kardon Surround Sound system
and
  Sensatec/canberra-beige
  or
  Sensatec/canberra-beige
  or
  Sensatec perforated/Canberra beige, ext.
  or
  Sensatec perforated/Canberra beige, ext.
  or
  Sensatec perforated/Canberra beige
  or
  Leath.Vernasca/Canberra beige de.stitch.
  or
  Leath.Vernasca/Canberra beige de.stitch.
S4ATA=No

S4KAA=No

S4KBA=No

S4KCA=No

S4KKA=No

S4KLA=No

S4MCA=No

S4MLA=No

S688A=Yes

KCCY=Yes

KCFY=Yes

KHFR=Yes

KHFS=Yes

KHFY=Yes

MAFO=Yes

MAFX=Yes
04 Door handle, rear left CANBERRABEIGE 1 51429458707 NoS Shop at ECS Tuning
04 Door handle, rear right CABERRABEIGE 1 51429458708 NoS Shop at ECS Tuning
For vehicles with
  Interior trim finishers black high-gloss
  and
  Fine-wood trim Oak grain, open-cell
  and
  Fine wood trim maple, open-pored
  and
  Fine wood trim ash grain, gy.br.hi.gl.
  and
  Interior trim, aluminum tetragon
  and
  Interior trim, aluminum mesh effect
  and
  Interior moldings Carbon Fibre
  and
  Interior strips, piano lacquer, black
  and
  Harman/Kardon Surround Sound system
and
  Sensatec/canberra-beige
  or
  Sensatec/canberra-beige
  or
  Sensatec perforated/Canberra beige, ext.
  or
  Sensatec perforated/Canberra beige, ext.
  or
  Sensatec perforated/Canberra beige
  or
  Leath.Vernasca/Canberra beige de.stitch.
  or
  Leath.Vernasca/Canberra beige de.stitch.
S4ATA=Yes

S4KAA=Yes

S4KBA=Yes

S4KCA=Yes

S4KKA=Yes

S4KLA=Yes

S4MCA=Yes

S4MLA=Yes

S688A=Yes

KCCY=Yes

KCFY=Yes

KHFR=Yes

KHFS=Yes

KHFY=Yes

MAFO=Yes

MAFX=Yes
04 Door handle, rear left CANBERRABEIGE 1 51429458711 NoS Shop at ECS Tuning
04 Door handle, rear right CANBERRABEIGE 1 51429458712 NoS Shop at ECS Tuning
For vehicles with
  Interior trim finishers black high-gloss
  and
  Fine-wood trim Oak grain, open-cell
  and
  Fine wood trim maple, open-pored
  and
  Fine wood trim ash grain, gy.br.hi.gl.
  and
  Interior trim, aluminum tetragon
  and
  Interior trim, aluminum mesh effect
  and
  INT. TRIM AL. RHOMBICLE ANTHR.
  and
  Interior moldings Carbon Fibre
  and
  Interior strips, piano lacquer, black
  and
  Harman/Kardon Surround Sound system
and
  Sensatec/canberra-beige
  or
  Sensatec/canberra-beige
  or
  Sensatec perforated/Canberra beige, ext.
  or
  Sensatec perforated/Canberra beige, ext.
  or
  Sensatec perforated/Canberra beige
  or
  Leath.Vernasca/Canberra beige de.stitch.
  or
  Leath.Vernasca/Canberra beige de.stitch.
S4ATA=No

S4KAA=No

S4KBA=No

S4KCA=No

S4KKA=No

S4KLA=No

S4LNA=No

S4MCA=No

S4MLA=No

S688A=No

KCCY=Yes

KCFY=Yes

KHFR=Yes

KHFS=Yes

KHFY=Yes

MAFO=Yes

MAFX=Yes
04 Door handle, rear left CANBERRABEIGE 1 51428494299 NoS Shop at ECS Tuning
04 Door handle, rear right CANBERRABEIGE 1 51428494300 NoS Shop at ECS Tuning
For vehicles with
  Interior trim finishers black high-gloss
  and
  Fine-wood trim Oak grain, open-cell
  and
  Fine wood trim maple, open-pored
  and
  Fine wood trim ash grain, gy.br.hi.gl.
  and
  Interior trim, aluminum tetragon
  and
  Interior trim, aluminum mesh effect
  and
  INT. TRIM AL. RHOMBICLE ANTHR.
  and
  Interior moldings Carbon Fibre
  and
  Interior strips, piano lacquer, black
  and
  Harman/Kardon Surround Sound system
and
  Sensatec/canberra-beige
  or
  Sensatec/canberra-beige
  or
  Sensatec perforated/Canberra beige, ext.
  or
  Sensatec perforated/Canberra beige, ext.
  or
  Sensatec perforated/Canberra beige
  or
  Leath.Vernasca/Canberra beige de.stitch.
  or
  Leath.Vernasca/Canberra beige de.stitch.
S4ATA=Yes

S4KAA=Yes

S4KBA=Yes

S4KCA=Yes

S4KKA=Yes

S4KLA=Yes

S4LNA=Yes

S4MCA=Yes

S4MLA=Yes

S688A=No

KCCY=Yes

KCFY=Yes

KHFR=Yes

KHFS=Yes

KHFY=Yes

MAFO=Yes

MAFX=Yes
04 Door handle, rear left CANBERRABEIGE 1 51427945685 NoS Shop at ECS Tuning
04 Door handle, rear right CANBERRABEIGE 1 51427945686 NoS Shop at ECS Tuning
05 Fillister head screw TS4X10 ISA 10 07147270744 Shop at ECS Tuning
06 Screw 5X20 10 07129909320 Shop at ECS Tuning
07 Screw cover cap, left BLACK 1 51418494295 NoS Shop at ECS Tuning
07 Screw cover, right BLACK 1 51418494296 NoS Shop at ECS Tuning
For vehicles with
Leather Vernasca/ oyster dec.stitching
MAOI=Yes
07 Screw cover cap, left OYSTER 1 51418494291 NoS Shop at ECS Tuning
07 Screw cover, right OYSTER 1 51418494292 NoS Shop at ECS Tuning
For vehicles with
Sensatec/canberra-beige
or
Sensatec/canberra-beige
or
Sensatec perforated/Canberra beige, ext.
or
Sensatec perforated/Canberra beige, ext.
or
Sensatec perforated/Canberra beige
or
Leath.Vernasca/Canberra beige de.stitch.
or
Leath.Vernasca/Canberra beige de.stitch.
KCCY=Yes

KCFY=Yes

KHFR=Yes

KHFS=Yes

KHFY=Yes

MAFO=Yes

MAFX=Yes
07 Screw cover cap, left CANBERRABEIGE 1 51418494293 NoS Shop at ECS Tuning
07 Screw cover, right CANBERRABEIGE 1 51418494294 NoS Shop at ECS Tuning
08 Cover, locking button left 1 51427458103 NoS Shop at ECS Tuning
08 Cover, locking button right 1 51427458104 NoS Shop at ECS Tuning
For vehicles with
Acoustic comfort windows
S3KAA=Yes
09 Acoustic felt, rear left 1 51427479153 NoS Shop at ECS Tuning
09 Acoustic felt, rear right 1 51427479154 NoS Shop at ECS Tuning
10 Clip 18 07145A4BA83 Shop at ECS Tuning
10 Clip with sealing washer, Light Blue 2 07149136882 $0.59 Shop at ECS Tuning
Notes
  • NoS = No Stock (Part centrally not stocked)

See Also

WINDOW MOUNTING PARTS WINDOW MOUNTING PARTS
GLAZING GLAZING
OUTSIDE MIRROR OUTSIDE MIRROR
MIRROR GLASS MIRROR GLASS
DOOR WINDOW LIFTING MECHANISM FRONT DOOR WINDOW LIFTING MECHANISM FRONT
TRIM AND SEALS FOR DOOR, FRONT TRIM AND SEALS FOR DOOR, FRONT
LOCKING SYSTEM, DOOR, FRONT LOCKING SYSTEM, DOOR, FRONT
DOOR WINDOW LIFTING MECHANISM REAR DOOR WINDOW LIFTING MECHANISM REAR
TRIM AND SEALS FOR DOOR, REAR TRIM AND SEALS FOR DOOR, REAR
CLOSING SYSTEM, DOOR, REAR CLOSING SYSTEM, DOOR, REAR
AIR DUCTS AIR DUCTS
CARRIER, FRONT CARRIER, FRONT
TRIM COVER, FRONT TRIM COVER, FRONT
TRIM, DECOR ELEMENTS, FRONT TRIM, DECOR ELEMENTS, FRONT
M TRIM, FRONT M TRIM, FRONT
M TRIM DECOR ELEMENTS, FRONT M TRIM DECOR ELEMENTS, FRONT
COVER DOOR SILL / WHEEL ARCH COVER DOOR SILL / WHEEL ARCH
M COVER FOR ROCKER PANEL / WHEEL ARCH M COVER FOR ROCKER PANEL / WHEEL ARCH
CARRIER, REAR CARRIER, REAR
TRIM COVER, REAR TRIM COVER, REAR

Frequently Asked Questions

What assembly is shown in the BMW 3 Series G20 Sedan LCI 330e Mounting parts, door trim, rear?
This technical diagram illustrates the Mounting parts, door trim, rear within the Vehicle trim group for the 3 Series G20 Sedan LCI 330e produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Left rear loudspeaker cover (Part #51428494255).
Which models use the hardware listed in this Mounting parts, door trim, rear?
The hardware and components featured in the Mounting parts, door trim, rear are specific to the 3 Series G20 Sedan LCI 330e produced during 2024. These technical specifications ensure that parts like the Left rear loudspeaker cover (51428494255) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Mounting parts, door trim, rear assembly?
Each item in the Mounting parts, door trim, rear corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan LCI 330e, you can identify the Left rear loudspeaker cover by locating its position on the schematic, which then links to the official BMW part number 51428494255 for the Vehicle trim section.
