Partition net / sight guard, cargo area for BMW 1 Series F40 116d (2024)

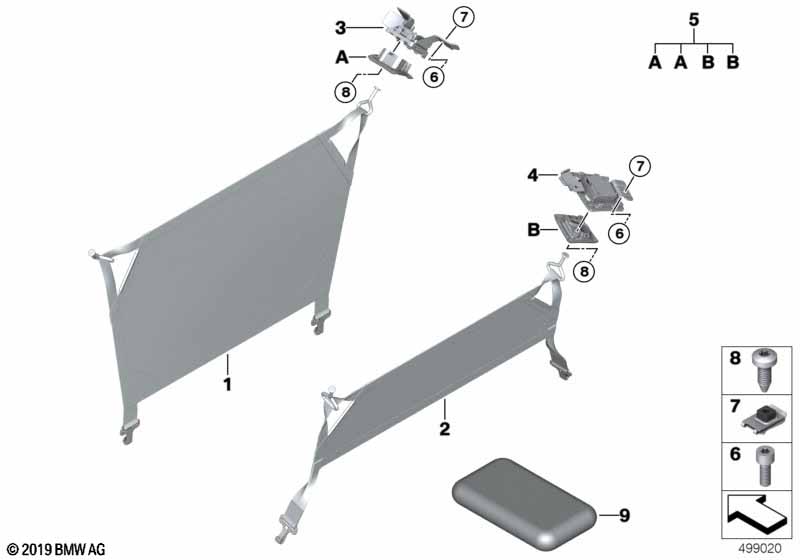

This Partition net / sight guard, cargo area technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 116d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Trunk room net |
S413A=Yes |
|||||||||
| 01 | Luggage partition net, front | 1 | 51477448232 | NoS | Shop at ECS Tuning | |||||
| 02 | Partition net, rear | 1 | 51477448235 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof and Trunk room net |
S402A=Yes S413A=Yes |
|||||||||
| 03 | Support dividing net, front left | 1 | 51479870113 | NoS | Shop at ECS Tuning | |||||
| 03 | Support dividing net, front right | 1 | 51479870114 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof and Trunk room net |
S402A=No S413A=Yes |
|||||||||
| 03 | Support dividing net, front left | 1 | 51477448239 | NoS | Shop at ECS Tuning | |||||
| 03 | Support dividing net, front right | 1 | 51477448240 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Trunk room net |
S413A=Yes |
|||||||||
| 04 | Support dividing net, rear left | 1 | 51477448261 | NoS | Shop at ECS Tuning | |||||
| 04 | Support dividing net, rear right | 1 | 51477448262 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof and Trunk room net and Headlining anthracite |
S402A=No S413A=Yes S775A=Yes |
|||||||||
| 05 | Set, trim, mount luggage net | SCHWARZ | 1 | 51477462705 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Electric panoramic roof and Trunk room net and Headlining anthracite |
S402A=Yes S413A=Yes S775A=Yes |
|||||||||
| 05 | Set, trim, mount luggage net | SCHWARZ | 1 | 51477946635 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Electric panoramic roof and Trunk room net and Headlining anthracite and Fabric Grid/anthracite or Sensatec anthracite / orange or Sensatec anthracite / gray or Leather Dakota perforat.magma red/sheen or Leather, Dakota, ventilated black |
S402A=No S413A=Yes S775A=No EGAT=Yes KFIX=Yes KFL1=Yes PDFM=Yes PDSW=Yes |
|||||||||
| 05 | Set, trim, mount luggage net | EVERESTGRAU | 1 | 51477495620 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Electric panoramic roof and Trunk room net and Headlining anthracite and Fabric Grid/anthracite or Sensatec anthracite / orange or Sensatec anthracite / gray or Leather Dakota perforat.magma red/sheen or Leather 'Dakota' perforated/mocca or Leather, Dakota, ventilated black |
S402A=Yes S413A=Yes S775A=No EGAT=Yes KFIX=Yes KFL1=Yes PDFM=Yes PDMY=Yes PDSW=Yes |
|||||||||
| 05 | Set, trim, mount luggage net | EVERESTGRAU | 1 | 51477462706 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Trunk room net |
S413A=Yes |
|||||||||
| 06 | ISA screw | M6X16-8.8-ZNS3 | 8 | 07129904588 | $0.96 | Shop at ECS Tuning | ||||
| 07 | C-clip nut | M6 | 8 | 07149350941 | Shop at ECS Tuning | |||||
| 08 | Oval-head machine screw, self-threading | M5X14 | 8 | 07147938048 | Shop at ECS Tuning | |||||
| 09 | Pocket, luggage partition net | 1 | 51477399199 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
