Combination blind for BMW 3 Series G21 Touring LCI 330eX (2024)

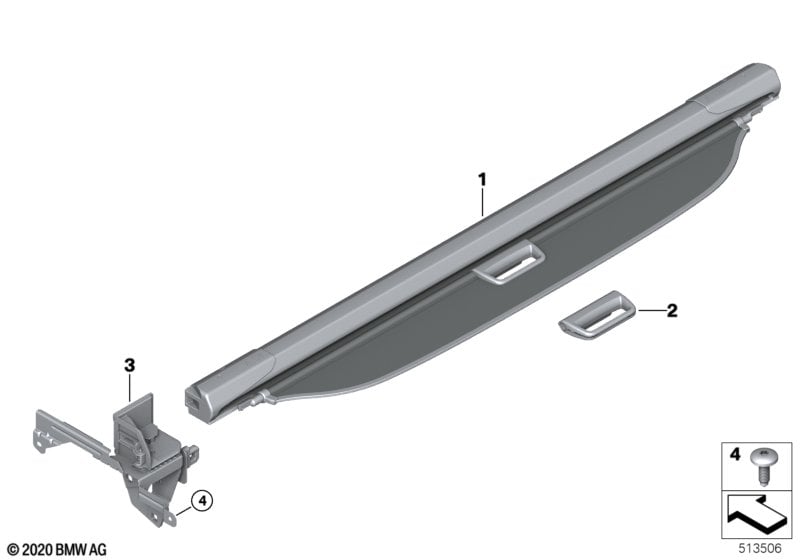

This Combination blind technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI 330eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Roller cover for luggage compartment | 1 | 51477450728 | NoS | Shop at ECS Tuning | |||||
| 02 | Handle roller cover for luggage comp. | 1 | 51479873723 | NoS | Shop at ECS Tuning | |||||
| 03 | Bracket, cover/partition blind, left | 1 | 51477450729 | NoS | Shop at ECS Tuning | |||||
| 03 | Bracket, cover/partition blind, right | 1 | 51477450730 | NoS | Shop at ECS Tuning | |||||
| 04 | Combi oval-head machine screw | ISA M8X20 | 8 | 07147234925 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G21 Touring LCI 330eX Combination blind?
- This technical diagram illustrates the Combination blind within the Vehicle trim group for the 3 Series G21 Touring LCI 330eX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Roller cover for luggage compartment (Part #51477450728).
- Which models use the hardware listed in this Combination blind?
- The hardware and components featured in the Combination blind are specific to the 3 Series G21 Touring LCI 330eX produced during 2024. These technical specifications ensure that parts like the Roller cover for luggage compartment (51477450728) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Combination blind assembly?
- Each item in the Combination blind corresponds to the numbered list below the illustration. For the 3 Series G21 Touring LCI 330eX, you can identify the Roller cover for luggage compartment by locating its position on the schematic, which then links to the official BMW part number 51477450728 for the Vehicle trim section.
