Trim panel, trunk floor for BMW 3 Series G21 Touring LCI M340iX (2025)

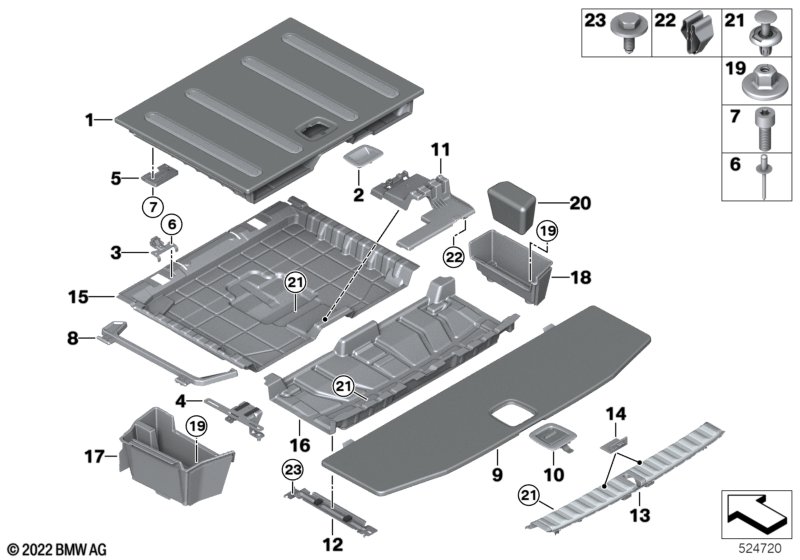

This Trim panel, trunk floor technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI M340iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Luggage compartment package |
S418A=No |
|||||||||
| 01 | Cargo floor panel front | 1 | 51477450653 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Luggage compartment package |
S418A=Yes |
|||||||||
| 01 | Floor panel, trunk, front | 1 | 51477473727 | NoS | Shop at ECS Tuning | |||||
| 02 | Handle, floor carpet-luggage comp | 1 | 51477425065 | Shop at ECS Tuning | ||||||
| 03 | Mount, floor panel, front | 2 | 51477450656 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply |
S146A=Yes |
|||||||||
| 04 | Bracket removable panel, left | 1 | 51478747371 | NoS | Shop at ECS Tuning | |||||
| 04 | Bracket removable panel, right | 1 | 51478747372 | NoS | Shop at ECS Tuning | |||||
| 05 | Hinge bracket floor carpet | SATZ | 1 | 51479871929 | NoS | Shop at ECS Tuning | ||||
| 06 | Blind rivet | 4 | 07147265827 | Shop at ECS Tuning | ||||||
| 07 | ISA screw | M6X16-8.8-ZNNIV | 4 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| For vehicles with Luggage compartment package |
S418A=Yes |
|||||||||
| 08 | Boot loading aid | 1 | 51476995044 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply |
S146A=Yes |
|||||||||
| 09 | Floor panel insert, trunk, rear | 1 | 51478746659 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply |
S146A=No |
|||||||||
| 09 | Floor panel insert, trunk, rear | 1 | 51477450648 | NoS | Shop at ECS Tuning | |||||
| 10 | Handle, floor carpet-luggage comp | 1 | 51479871928 | NoS | Shop at ECS Tuning | |||||
| 11 | Support for removable panel | 1 | 51477458632 | NoS | Shop at ECS Tuning | |||||
| 12 | Support, luggage compartment floor panel | 1 | 51476994489 | Shop at ECS Tuning | ||||||
| 13 | Loading sill cover | 1 | 51477450692 | NoS | Shop at ECS Tuning | |||||
| 14 | Cover for lock | 1 | 51479871927 | NoS | Shop at ECS Tuning | |||||
| 15 | Storage tray, trunk floor, front | 1 | 51477450655 | NoS | Shop at ECS Tuning | |||||
| 16 | Storage tray, trunk floor, rear | 1 | 51477450654 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply and Harman/Kardon Surround Sound system |
S146A=No S688A=Yes |
|||||||||
| 17 | Storage bin, trunk, left | 1 | 51477492273 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply and Harman/Kardon Surround Sound system |
S146A=No S688A=No |
|||||||||
| 17 | Storage bin, trunk, left | 1 | 51477473731 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply |
S146A=No |
|||||||||
| 18 | Stowage compartment, boot right | 1 | 51477473732 | NoS | Shop at ECS Tuning | |||||
| 19 | Plastic capnut with washer | D=22MM | 4 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| For vehicles with Warning triangle and first aid kit |
S428A=Yes |
|||||||||
| 20 | First-aid kit, case | 1 | 51477229149 | Shop at ECS Tuning | ||||||
| 21 | Expanding rivet | 5 | 07147401727 | Shop at ECS Tuning | ||||||
| 22 | Clamp | 3 | 07147321144 | Shop at ECS Tuning | ||||||
| 23 | Self-locking hex bolt | M6 | 2 | 07146961201 | $1.17 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
