Storage tray, center console for BMW 1 Series F40 128ti (2024)

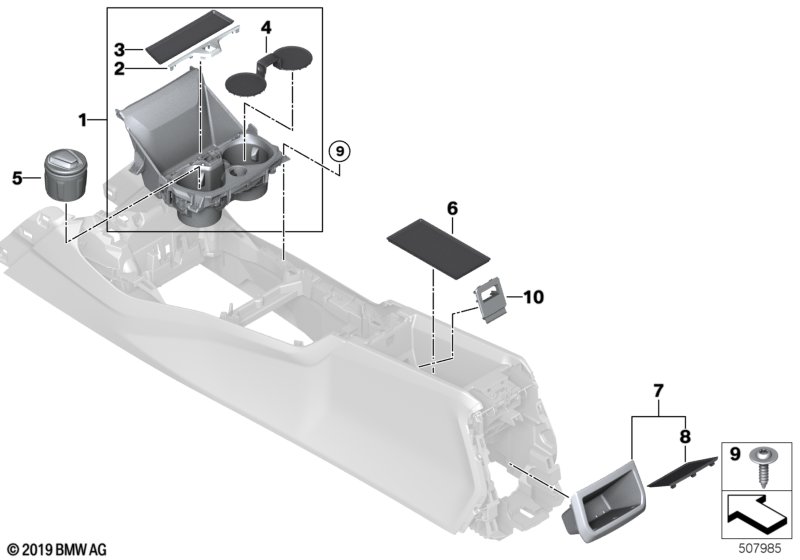

This Storage tray, center console technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 128ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Comfort access and Phoning with wireless charging and Phoning with wireless charging |
S322A=No S6NVA=No S6NWA=No |
|||||||||
| 01 | Storage tray, cup holder, center console | 1 | 03/2022 | 51167951772 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Comfort access and Phoning with wireless charging and Phoning with wireless charging and Country-spec.ctrl Hong Kong/Macao 04142 |
S322A=Yes S6NVA=Yes S6NWA=Yes S8LHA=No |
|||||||||
| 01 | Storage tray, cup holder, center console | 1 | 03/2022 | 51167951771 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Phoning with wireless charging and Phoning with wireless charging and Country-spec.ctrl Hong Kong/Macao 04142 |
S322A=Yes S6NVA=Yes S6NWA=No S8LHA=No |
|||||||||
| 01 | Storage tray, cup holder, center console | 1 | 03/2022 | 51167951771 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Phoning with wireless charging and Phoning with wireless charging and Country-spec.ctrl Hong Kong/Macao 04142 |
S322A=Yes S6NVA=No S6NWA=Yes S8LHA=No |
|||||||||
| 01 | Storage tray, cup holder, center console | 1 | 03/2022 | 51167951771 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Phoning with wireless charging and Phoning with wireless charging and Country-spec.ctrl Hong Kong/Macao 04142 |
S322A=Yes S6NVA=No S6NWA=No S8LHA=No |
|||||||||
| 01 | Storage tray, cup holder, center console | 1 | 03/2022 | 51167951771 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Phoning with wireless charging and Phoning with wireless charging and Country-spec.ctrl Hong Kong/Macao 04142 |
S322A=No S6NVA=Yes S6NWA=Yes S8LHA=No |
|||||||||
| 01 | Storage tray, cup holder, center console | 1 | 03/2022 | 51167951771 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Phoning with wireless charging and Phoning with wireless charging and Country-spec.ctrl Hong Kong/Macao 04142 |
S322A=No S6NVA=Yes S6NWA=No S8LHA=No |
|||||||||
| 01 | Storage tray, cup holder, center console | 1 | 03/2022 | 51167951771 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Phoning with wireless charging and Phoning with wireless charging and Country-spec.ctrl Hong Kong/Macao 04142 |
S322A=No S6NVA=No S6NWA=Yes S8LHA=No |
|||||||||
| 01 | Storage tray, cup holder, center console | 1 | 03/2022 | 51167951771 | NoS | Shop at ECS Tuning | ||||
| 02 | Chrome wedge trim, cup holder | 1 | 51167951776 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Phoning with wireless charging and Phoning with wireless charging |
S322A=No S6NVA=No S6NWA=No |
|||||||||
| 03 | Insert mat, compartment, front | 1 | 51167951778 | NoS | Shop at ECS Tuning | |||||
| 04 | Rubber insert, cup holder | 1 | 51167951777 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Smoker package |
S441A=Yes |
|||||||||
| 05 | Ashtray insert for cup holder | 1 | 51166806845 | Shop at ECS Tuning | ||||||
| 06 | Insert mat, center console storage comp. | 1 | 51166823571 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning |
S534A=No |
|||||||||
| 07 | Storage compartment, rear | 1 | 51166828271 | NoS | Shop at ECS Tuning | |||||
| 08 | Rubber insert, oddments tray rear | 1 | 51167951773 | NoS | Shop at ECS Tuning | |||||
| 09 | Fillister head screw | DELTA PT4X16 | 4 | 07149197038 | Shop at ECS Tuning | |||||
| 10 | Trim cover, center console, middle | 1 | 51166823441 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
