Underhood shield for BMW 2 Series F44 Gran Coupé 220d (2023)

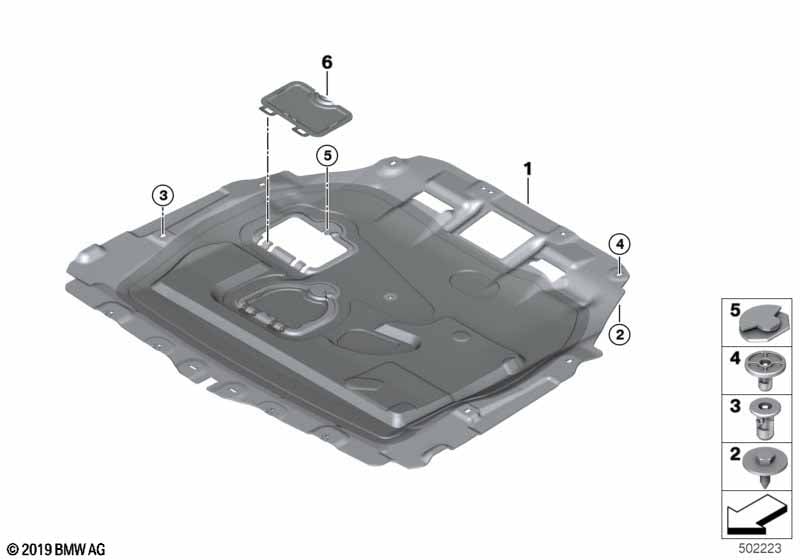

This Underhood shield technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 01 | Underhood shield | 1 | 51757366682 | Shop at ECS Tuning | ||||||
| For vehicles with Skid plate national versions |
S8SDA=No |
|||||||||
| 01 | Underhood shield | 1 | 51757402947 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt | TS5X17 SW8 D=22 | 18 | 07149126886 | Shop at ECS Tuning | |||||
| 03 | Expanding nut | L=18.4, DMAX=18 | 7 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | L= 19.9MM | 4 | 07147306224 | Shop at ECS Tuning | |||||
| 05 | Rotary clip | 2 | 51757412974 | Shop at ECS Tuning | ||||||
| 06 | Service cover | 1 | 51757414881 | Shop at ECS Tuning | ||||||
