Door trim, rear for BMW 1 Series F40 118d

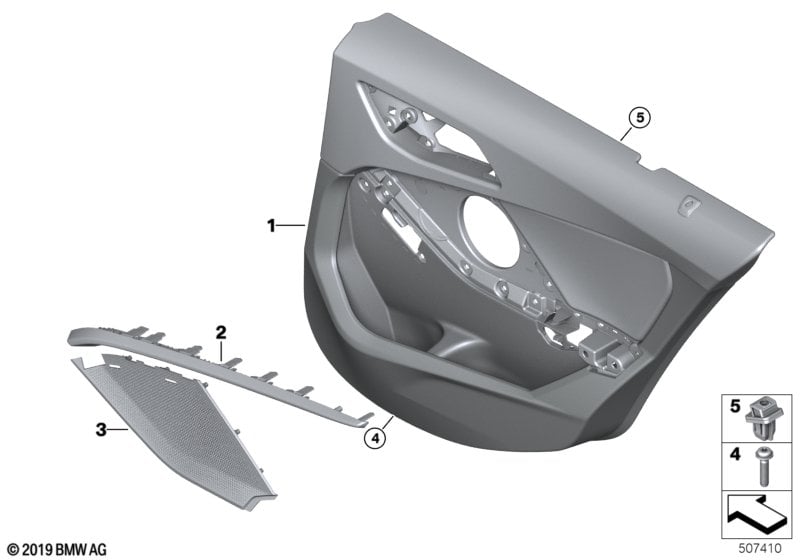

This Door trim, rear technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 118d. It includes part names, part numbers and all associated mounting hardware.

Door trim, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i According to the supplier,
the die cut for the tweeter
will always be present!
The foam part serves to
cover audio system 1-2.
Remove the foam part for
audio system 3.
For vehicles with
Leather 'Dakota' perforated/mocca
Only in conjunction with suitable item
2 and item 3
PDMY=Yes
01 Door trim panel, rear, left MOKKA 1 51429893853 NoS Shop at ECS Tuning
01 Door trim panel, rear, right MOKKA 1 51429893854 NoS Shop at ECS Tuning
For vehicles with
Sensatec anthracite / gray
Only in conjunction with suitable item
2 and item 3
KFL1=Yes
01 Door trim panel, rear, left ANTHRAZIT/GREY 1 51429893847 NoS Shop at ECS Tuning
01 Door trim panel, rear, right ANTHRAZIT/GREY 1 51429893848 NoS Shop at ECS Tuning
For vehicles with
Leather Dakota perforat.magma red/sheen
Only in conjunction with suitable item
2 and item 3
PDFM=Yes
01 Door trim panel, rear, left RED 1 51429893855 NoS Shop at ECS Tuning
01 Door trim panel, rear, right RED 1 51429893856 NoS Shop at ECS Tuning
For vehicles with
Fabric Grid/anthracite
Only in conjunction with suitable item
2 and item 3
EGAT=Yes
01 Door trim panel, rear, left ANTHRAZIT 1 51429893843 NoS Shop at ECS Tuning
01 Door trim panel, rear, right ANTHRAZIT 1 51429893844 NoS Shop at ECS Tuning
For vehicles with
Sensatec anthracite / orange
Only in conjunction with suitable item
2 and item 3
KFIX=Yes
01 Door trim panel, rear, left ANTHR./ORANGE 1 51429893849 NoS Shop at ECS Tuning
01 Door trim panel, rear, right ANTHR./ORANGE 1 51429893850 NoS Shop at ECS Tuning
For vehicles with
Leather Dakota perforated/black/blue acc
Only in conjunction with suitable item
2 and item 3
PDN4=Yes
01 Door trim panel, rear, left BLACK/BLUE 1 51429893857 Shop at ECS Tuning
01 Door trim panel, rear, right BLACK/BLUE 1 51429893858 Shop at ECS Tuning
For vehicles with
Fabric Trigon Alcantara / black
or
Cloth, Trigon / Sensatec Black
Only in conjunction with suitable item
2 and item 3
HLSW=Yes

KKSW=Yes
01 Door trim panel, rear, left BLACK 1 07/2020 51429893859 NoS Shop at ECS Tuning
01 Door trim panel, rear, left BLACK/BLUE 1 07/2020 51429893857 NoS Shop at ECS Tuning
01 Door trim panel, rear, right BLACK 1 07/2020 51429893860 NoS Shop at ECS Tuning
01 Door trim panel, rear, right BLACK/BLUE 1 07/2020 51429893858 NoS Shop at ECS Tuning
For vehicles with
LEATHER DAKOTA BLACK/IVORY WHITE
or
LEATHER DAKOTA BLACK/RED
or
Leather, Dakota, ventilated black
Only in conjunction with suitable item
2 and item 3
LCEF=Yes

LCRS=Yes

PDSW=Yes
01 Door trim panel, rear, left BLACK/GREY 1 51429893851 NoS Shop at ECS Tuning
01 Door trim panel, rear, right BLACK/GREY 1 51429893852 NoS Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Boston
S4P2A=Yes
02 Decorative strip, door left BOSTON 1 07/2022 51419870118 NoS Shop at ECS Tuning
only in conjunction with
02 Decorative strip, door right BOSTON 1 07/2022 51429870119 NoS Shop at ECS Tuning
only in conjunction with
-- Oval-head screw with washer DELTA PT4X12 2 07/2022 07149200941 Shop at ECS Tuning
-- Clamp 10 07/2022 07149241763 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Nizza
S4P5A=Yes
02 Decorative strip, door left NIZZA 1 07/2022 51419870124 NoS Shop at ECS Tuning
only in conjunction with
02 Decorative strip, door right NIZZA 1 07/2022 51419870125 NoS Shop at ECS Tuning
only in conjunction with
-- Oval-head screw with washer DELTA PT4X12 2 07/2022 07149200941 Shop at ECS Tuning
-- Clamp 10 07/2022 07149241763 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
S4P1A=Yes
02 Decorative strip, door left BROOKLYN 1 05/2020 51419870120 NoS Shop at ECS Tuning
only in conjunction with
02 Decorative strip, door right BROOKLYN 1 05/2020 51429870121 NoS Shop at ECS Tuning
only in conjunction with
-- Oval-head screw with washer DELTA PT4X12 2 05/2020 07149200941 Shop at ECS Tuning
-- Clamp 10 05/2020 07149241763 Shop at ECS Tuning
02 Decorative strip, door left BROOKLYN 1 05/2020 07/2022 51415A20E75 NoS Shop at ECS Tuning
only in conjunction with
02 Decorative strip, door right BROOKLYN 1 05/2020 07/2022 51425A20E76 NoS Shop at ECS Tuning
only in conjunction with
-- Oval-head screw with washer DELTA PT4X12 2 05/2020 07/2022 07149200941 Shop at ECS Tuning
-- Clamp 10 05/2020 07/2022 07149241763 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Berlin
S4P3A=Yes
02 Decorative strip, door left BERLIN 1 07/2022 51419870122 NoS Shop at ECS Tuning
only in conjunction with
02 Decorative strip, door right BERLIN 1 07/2022 51429870123 NoS Shop at ECS Tuning
only in conjunction with
-- Oval-head screw with washer DELTA PT4X12 2 07/2022 07149200941 Shop at ECS Tuning
-- Clamp 10 07/2022 07149241763 Shop at ECS Tuning
For vehicles with
Harman/Kardon Surround Sound system
S688A=No
03 Cover loudspeaker left BLACK 1 07/2022 51417490231 Shop at ECS Tuning
03 Cover loudspeaker right BLACK 1 07/2022 51417490232 Shop at ECS Tuning
For vehicles with
Harman/Kardon Surround Sound system
S688A=Yes
03 Cover loudspeaker left HARMAN / KARDON 1 07/2022 51417464845 Shop at ECS Tuning
03 Cover loudspeaker right HARMAN / KARDON 1 07/2022 51417464846 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=Yes

S4P2A=Yes

S4P3A=Yes

S4P5A=Yes

S688A=Yes
03 Cover loudspeaker left TITAN 1 07/2022 51417949485 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right TITAN 1 07/2022 51417949486 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=Yes

S4P2A=Yes

S4P3A=Yes

S4P5A=No

S688A=Yes
03 Cover loudspeaker left TITAN 1 07/2022 51417949485 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right TITAN 1 07/2022 51417949486 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=Yes

S4P2A=Yes

S4P3A=No

S4P5A=Yes

S688A=Yes
03 Cover loudspeaker left TITAN 1 07/2022 51417949485 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right TITAN 1 07/2022 51417949486 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=Yes

S4P2A=Yes

S4P3A=No

S4P5A=No

S688A=Yes
03 Cover loudspeaker left TITAN 1 07/2022 51417949485 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right TITAN 1 07/2022 51417949486 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=Yes

S4P2A=No

S4P3A=Yes

S4P5A=Yes

S688A=Yes
03 Cover loudspeaker left TITAN 1 07/2022 51417949485 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right TITAN 1 07/2022 51417949486 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=Yes

S4P2A=No

S4P3A=Yes

S4P5A=No

S688A=Yes
03 Cover loudspeaker left TITAN 1 07/2022 51417949485 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right TITAN 1 07/2022 51417949486 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=Yes

S4P2A=No

S4P3A=No

S4P5A=Yes

S688A=Yes
03 Cover loudspeaker left TITAN 1 07/2022 51417949485 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right TITAN 1 07/2022 51417949486 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=Yes

S4P2A=No

S4P3A=No

S4P5A=No

S688A=Yes
03 Cover loudspeaker left TITAN 1 07/2022 51417949485 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right TITAN 1 07/2022 51417949486 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=No

S4P2A=Yes

S4P3A=Yes

S4P5A=Yes

S688A=Yes
03 Cover loudspeaker left TITAN 1 07/2022 51417949485 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right TITAN 1 07/2022 51417949486 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=No

S4P2A=Yes

S4P3A=Yes

S4P5A=No

S688A=Yes
03 Cover loudspeaker left TITAN 1 07/2022 51417949485 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right TITAN 1 07/2022 51417949486 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=No

S4P2A=Yes

S4P3A=No

S4P5A=Yes

S688A=Yes
03 Cover loudspeaker left TITAN 1 07/2022 51417949485 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right TITAN 1 07/2022 51417949486 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=No

S4P2A=Yes

S4P3A=No

S4P5A=No

S688A=Yes
03 Cover loudspeaker left TITAN 1 07/2022 51417949485 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right TITAN 1 07/2022 51417949486 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=No

S4P2A=No

S4P3A=Yes

S4P5A=Yes

S688A=Yes
03 Cover loudspeaker left TITAN 1 07/2022 51417949485 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right TITAN 1 07/2022 51417949486 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=No

S4P2A=No

S4P3A=Yes

S4P5A=No

S688A=Yes
03 Cover loudspeaker left TITAN 1 07/2022 51417949485 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right TITAN 1 07/2022 51417949486 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=No

S4P2A=No

S4P3A=No

S4P5A=Yes

S688A=Yes
03 Cover loudspeaker left TITAN 1 07/2022 51417949485 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right TITAN 1 07/2022 51417949486 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=No

S4P2A=No

S4P3A=No

S4P5A=No

S688A=Yes
03 Cover loudspeaker left HARMAN / KARDON 1 07/2022 51417464845 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right HARMAN / KARDON 1 07/2022 51417464846 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=No

S4P2A=No

S4P3A=No

S4P5A=No

S688A=No
03 Cover loudspeaker left BLACK 1 07/2022 51417490231 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right BLACK 1 07/2022 51417490232 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=Yes

S4P2A=Yes

S4P3A=Yes

S4P5A=Yes

S688A=No
03 Cover loudspeaker left BLACK 1 07/2022 51417949473 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right BLACK 1 07/2022 51417949474 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=Yes

S4P2A=Yes

S4P3A=Yes

S4P5A=No

S688A=No
03 Cover loudspeaker left BLACK 1 07/2022 51417949473 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right BLACK 1 07/2022 51417949474 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=Yes

S4P2A=Yes

S4P3A=No

S4P5A=Yes

S688A=No
03 Cover loudspeaker left BLACK 1 07/2022 51417949473 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right BLACK 1 07/2022 51417949474 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=Yes

S4P2A=Yes

S4P3A=No

S4P5A=No

S688A=No
03 Cover loudspeaker left BLACK 1 07/2022 51417949473 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right BLACK 1 07/2022 51417949474 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=Yes

S4P2A=No

S4P3A=Yes

S4P5A=Yes

S688A=No
03 Cover loudspeaker left BLACK 1 07/2022 51417949473 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right BLACK 1 07/2022 51417949474 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=Yes

S4P2A=No

S4P3A=Yes

S4P5A=No

S688A=No
03 Cover loudspeaker left BLACK 1 07/2022 51417949473 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right BLACK 1 07/2022 51417949474 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=Yes

S4P2A=No

S4P3A=No

S4P5A=Yes

S688A=No
03 Cover loudspeaker left BLACK 1 07/2022 51417949473 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right BLACK 1 07/2022 51417949474 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=Yes

S4P2A=No

S4P3A=No

S4P5A=No

S688A=No
03 Cover loudspeaker left BLACK 1 07/2022 51417949473 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right BLACK 1 07/2022 51417949474 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=No

S4P2A=Yes

S4P3A=Yes

S4P5A=Yes

S688A=No
03 Cover loudspeaker left BLACK 1 07/2022 51417949473 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right BLACK 1 07/2022 51417949474 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=No

S4P2A=Yes

S4P3A=Yes

S4P5A=No

S688A=No
03 Cover loudspeaker left BLACK 1 07/2022 51417949473 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right BLACK 1 07/2022 51417949474 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=No

S4P2A=Yes

S4P3A=No

S4P5A=Yes

S688A=No
03 Cover loudspeaker left BLACK 1 07/2022 51417949473 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right BLACK 1 07/2022 51417949474 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=No

S4P2A=Yes

S4P3A=No

S4P5A=No

S688A=No
03 Cover loudspeaker left BLACK 1 07/2022 51417949473 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right BLACK 1 07/2022 51417949474 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=No

S4P2A=No

S4P3A=Yes

S4P5A=Yes

S688A=No
03 Cover loudspeaker left BLACK 1 07/2022 51417949473 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right BLACK 1 07/2022 51417949474 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=No

S4P2A=No

S4P3A=Yes

S4P5A=No

S688A=No
03 Cover loudspeaker left BLACK 1 07/2022 51417949473 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right BLACK 1 07/2022 51417949474 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
For vehicles with
Int.trim finisher, Illuminated Brooklyn
and
Int.trim finisher, Illuminated Boston
and
Int.trim finisher, Illuminated Berlin
and
Int.trim finisher, Illuminated Nizza
and
Harman/Kardon Surround Sound system
S4P1A=No

S4P2A=No

S4P3A=No

S4P5A=Yes

S688A=No
03 Cover loudspeaker left BLACK 1 07/2022 51417949473 Shop at ECS Tuning
only in conjunction with
03 Cover loudspeaker right BLACK 1 07/2022 51417949474 Shop at ECS Tuning
only in conjunction with
-- Axial securing clip 5,75MM 9 07/2022 52207115704 $0.32 Shop at ECS Tuning
04 Screw 5X20 8 07129909320 Shop at ECS Tuning
05 Plug-in nut 2 51252753575 $2.89 Shop at ECS Tuning
Notes
  • NoS = No Stock (Part centrally not stocked)

See Also

GLAZING GLAZING
WINDOW MOUNTING PARTS WINDOW MOUNTING PARTS
OUTSIDE MIRROR OUTSIDE MIRROR
EXTERIOR MIRROR (S760A) EXTERIOR MIRROR (S760A)
MIRROR GLASS MIRROR GLASS
OUTSIDE MIRROR OUTSIDE MIRROR
EXTERIOR MIRROR (S760A) EXTERIOR MIRROR (S760A)
DOOR WINDOW LIFTING MECHANISM FRONT DOOR WINDOW LIFTING MECHANISM FRONT
TRIM AND SEALS FOR DOOR, FRONT TRIM AND SEALS FOR DOOR, FRONT
LOCKING SYSTEM, DOOR, FRONT LOCKING SYSTEM, DOOR, FRONT
DOOR WINDOW LIFTING MECHANISM REAR DOOR WINDOW LIFTING MECHANISM REAR
TRIM AND SEALS FOR DOOR, REAR TRIM AND SEALS FOR DOOR, REAR
CLOSING SYSTEM, DOOR, REAR CLOSING SYSTEM, DOOR, REAR
AIR DUCTS AIR DUCTS
TRIM COVER, FRONT TRIM COVER, FRONT
M TRIM, FRONT M TRIM, FRONT
M TRIM DECOR ELEMENTS, FRONT M TRIM DECOR ELEMENTS, FRONT
CARRIER, FRONT CARRIER, FRONT
TRIM, DECOR ELEMENTS, FRONT TRIM, DECOR ELEMENTS, FRONT
INSTALLATION KIT, BUMPER INSTALLATION KIT, BUMPER

Frequently Asked Questions

What assembly is shown in the BMW 1 Series F40 118d Door trim, rear?
This technical diagram illustrates the Door trim, rear within the Vehicle trim group for the 1 Series F40 118d. It provides a detailed exploded view of the components, identifying key parts such as the Door trim panel, rear, left (Part #51429893853).
Which models use the hardware listed in this Door trim, rear?
The hardware and components featured in the Door trim, rear are specific to the 1 Series F40 118d. These technical specifications ensure that parts like the Door trim panel, rear, left (51429893853) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Door trim, rear assembly?
Each item in the Door trim, rear corresponds to the numbered list below the illustration. For the 1 Series F40 118d, you can identify the Door trim panel, rear, left by locating its position on the schematic, which then links to the official BMW part number 51429893853 for the Vehicle trim section.
