Sun visors for BMW 1 Series F40 128ti (2024)

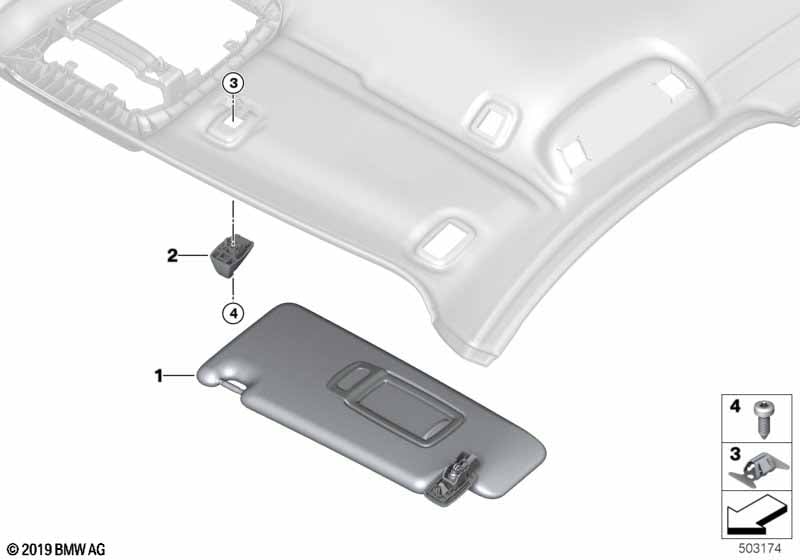

This Sun visors technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 128ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sun visor without label, left | SCHWARZ | 1 | 51167336237 | Shop at ECS Tuning | |||||
| For vehicles with Country-specific equipment Taiwan 04825 |
S8LTA=No |
|||||||||
| 01 | Sun visor with label, right | SCHWARZ | 1 | 51165A3D1F6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Country-specific equipment Taiwan 04825 |
S8LTA=Yes |
|||||||||
| 01 | Sun visor with label, right | SCHWARZ | 1 | 51165A0CBA4 | NoS | Shop at ECS Tuning | ||||
| 02 | Counterbearing for sun visor | SCHWARZ | 2 | 51167896985 | $1.83 | Shop at ECS Tuning | ||||
| 03 | Clip | 2 | 51167145718 | $1.11 | Shop at ECS Tuning | |||||
| 04 | Torx sheet-metal screw | ISA ST4,2X13 | 2 | 07119907470 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
