Interior mirror for BMW 2 Series F44 Gran Coupé 220d (2024)

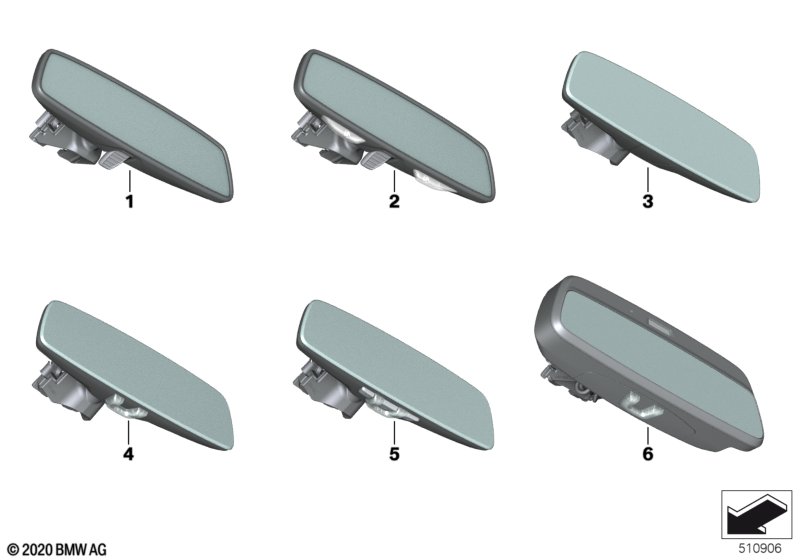

This Interior mirror technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Interior-mirror, manual | 1 | 51169869902 | Shop at ECS Tuning | ||||||
| For vehicles with Alarm system |
S302A=Yes |
|||||||||
| 02 | Interior-mirror, manual | LED | 1 | 51169869903 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and Interior toll mirror for Japan |
S302A=No S430A=Yes S431A=Yes S449A=No |
|||||||||
| 03 | Rearview mirror EC | 1 | 51166838308 | Shop at ECS Tuning | ||||||
| For vehicles with Alarm system and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and Interior toll mirror for Japan |
S302A=No S430A=Yes S431A=No S449A=No |
|||||||||
| 03 | Rearview mirror EC | 1 | 51166838308 | Shop at ECS Tuning | ||||||
| For vehicles with Alarm system and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and Interior toll mirror for Japan |
S302A=No S430A=No S431A=Yes S449A=No |
|||||||||
| 03 | Rearview mirror EC | 1 | 51166838308 | Shop at ECS Tuning | ||||||
| For vehicles with Alarm system and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and Interior toll mirror for Japan |
S302A=Yes S430A=Yes S431A=Yes S449A=No |
|||||||||
| 04 | Rearview mirror EC / LED | 1 | 51166838309 | Shop at ECS Tuning | ||||||
| For vehicles with Alarm system and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and Interior toll mirror for Japan |
S302A=Yes S430A=Yes S431A=No S449A=No |
|||||||||
| 04 | Rearview mirror EC / LED | 1 | 51166838309 | Shop at ECS Tuning | ||||||
| For vehicles with Alarm system and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and Interior toll mirror for Japan |
S302A=Yes S430A=No S431A=Yes S449A=No |
|||||||||
| 04 | Rearview mirror EC / LED | 1 | 51166838309 | Shop at ECS Tuning | ||||||
| For vehicles with Interior toll mirror for Japan |
S449A=Yes |
|||||||||
| 06 | Interior mirror | 1 | 51165A353F8 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F44 Gran Coupé 220d Interior mirror?
- This technical diagram illustrates the Interior mirror within the Vehicle trim group for the 2 Series F44 Gran Coupé 220d produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Interior-mirror, manual (Part #51169869902).
- Which models use the hardware listed in this Interior mirror?
- The hardware and components featured in the Interior mirror are specific to the 2 Series F44 Gran Coupé 220d produced during 2024. These technical specifications ensure that parts like the Interior-mirror, manual (51169869902) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Interior mirror assembly?
- Each item in the Interior mirror corresponds to the numbered list below the illustration. For the 2 Series F44 Gran Coupé 220d, you can identify the Interior-mirror, manual by locating its position on the schematic, which then links to the official BMW part number 51169869902 for the Vehicle trim section.
