Trim, windshield cowl, outer for BMW 1 Series F40 116d (2024)

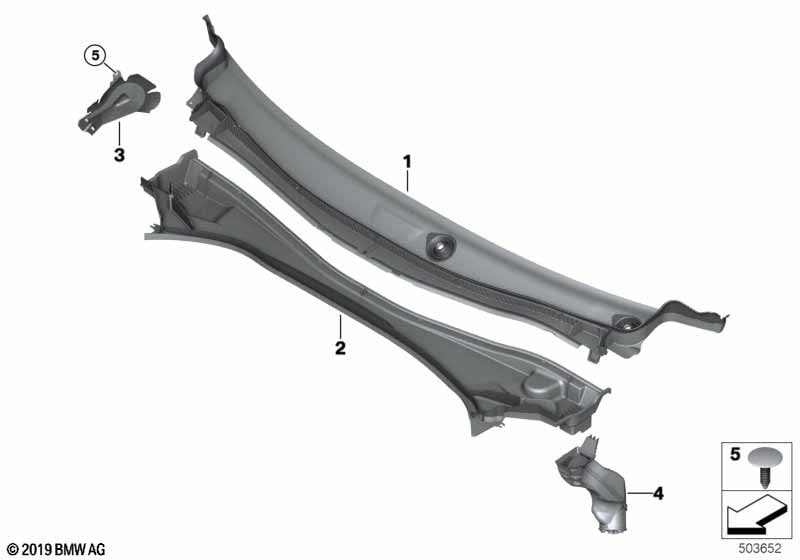

This Trim, windshield cowl, outer technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 116d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cowl panel cover, Part 1 | RHD | 1 | 51717453938 | Shop at ECS Tuning | |||||
| 02 | Cowl panel cover, Part 2 | RHD | 1 | 12/2025 | 51717453940 | Shop at ECS Tuning | ||||
| 02 | Cowl panel cover, Part 2 | RHD | 1 | 51719630117 | Shop at ECS Tuning | |||||
| 03 | Bulkhead cowl panel | RHD | 1 | 51717453942 | Shop at ECS Tuning | |||||
| 04 | Discharge duct, left | 1 | 51717453943 | Shop at ECS Tuning | ||||||
| 04 | Discharge duct, right | 1 | 51717453944 | Shop at ECS Tuning | ||||||
| 05 | Plug-in retainer | 2 | 07147283890 | Shop at ECS Tuning |
