Roller sun vizor, rear door for BMW 8 Series F93 M8 Gran Coupe M8 (2025)

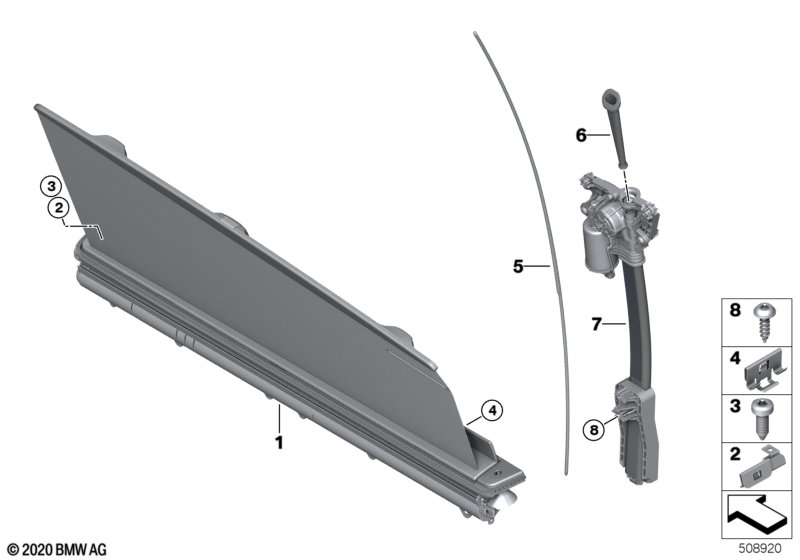

This Roller sun vizor, rear door technical drawing provides a detailed breakdown of the assembly for the 8 Series F93 M8 Gran Coupe M8. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Roller sun vizor, rear lateral |
S416A=Yes |
||||||||
| 01 | Left rear door sun blind | 1 | 51427449919 | Shop at ECS Tuning | ||||||
| 01 | Right rear door sun blind | 1 | 51427449920 | Shop at ECS Tuning | ||||||
| 02 | Left sun blind clip | 1 | 51429483171 | NoS | Shop at ECS Tuning | |||||
| 02 | Right sun blind clip | 1 | 51429483248 | NoS | Shop at ECS Tuning | |||||
| 03 | Torx sheet-metal screw | ISA ST4,2X13 | 2 | 07119907470 | Shop at ECS Tuning | |||||
| 04 | Clamp | 10 | 07147217917 | Shop at ECS Tuning | ||||||
| 05 | Push rod | 2 | 51357488562 | NoS | Shop at ECS Tuning | |||||
| 06 | Guide bush | 2 | 51357488565 | NoS | Shop at ECS Tuning | |||||
| 07 | Drive unit, left | 1 | 51357479751 | NoS | Shop at ECS Tuning | |||||
| 07 | Drive unit, right | 1 | 51357479752 | NoS | Shop at ECS Tuning | |||||
| 08 | Fillister head screw | TS 5X16 | 8 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series F93 M8 Gran Coupe M8 Roller sun vizor, rear door?
- This technical diagram illustrates the Roller sun vizor, rear door within the Vehicle trim group for the 8 Series F93 M8 Gran Coupe M8 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Left rear door sun blind (Part #51427449919).
- Which models use the hardware listed in this Roller sun vizor, rear door?
- The hardware and components featured in the Roller sun vizor, rear door are specific to the 8 Series F93 M8 Gran Coupe M8 produced during 2025. These technical specifications ensure that parts like the Left rear door sun blind (51427449919) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Roller sun vizor, rear door assembly?
- Each item in the Roller sun vizor, rear door corresponds to the numbered list below the illustration. For the 8 Series F93 M8 Gran Coupe M8, you can identify the Left rear door sun blind by locating its position on the schematic, which then links to the official BMW part number 51427449919 for the Vehicle trim section.
