Trim and seals for door, front for BMW 1 Series F40 116i

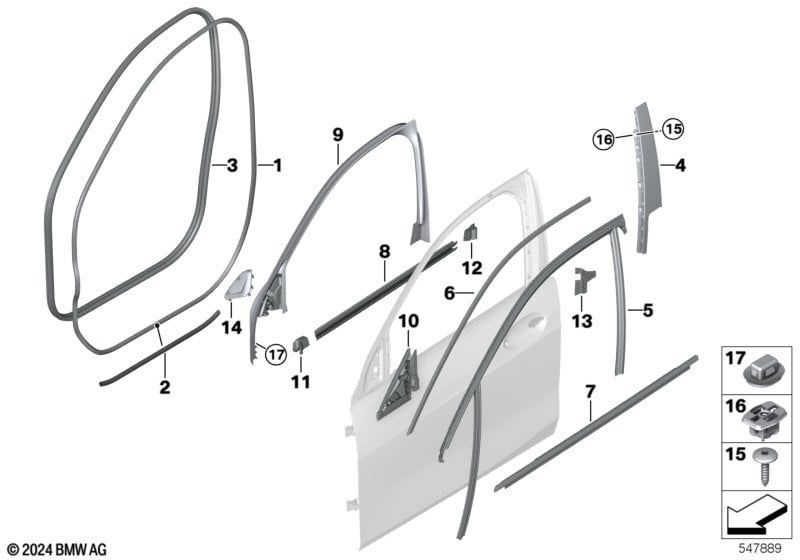

This Trim and seals for door, front technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 116i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door weatherstrip | 2 | 51769880691 | Shop at ECS Tuning | ||||||
| 01 | Door weatherstrip | 2 | 51727390750 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of templates, door, front | 1 | 01299880692 | Shop at ECS Tuning | ||||||
| Note: Observe new repair instructions 5171003! |
||||||||||
| 02 | Partial replacement, door weatherstrip | 2 | 51765B68FC5 | Shop at ECS Tuning | ||||||
| 03 | Edge protection, door, front | 2 | 51729880688 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=No S760A=No |
|||||||||
| 04 | Cover, column B, door, front left | 1 | 51337452373 | Shop at ECS Tuning | ||||||
| 04 | Cover, column B, door, front right | 1 | 51337452374 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium or High gloss shadow line |
S3MBA=Yes S760A=Yes |
|||||||||
| 04 | Cover, column B, door, front left | SHADOWLINE | 1 | 51337452377 | Shop at ECS Tuning | |||||
| 04 | Cover, column B, door, front right | SHADOWLINE | 1 | 51337452378 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=No S760A=No |
|||||||||
| 05 | Window guide, left front door | 1 | 51337452343 | Shop at ECS Tuning | ||||||
| 05 | Window guide, right front door | 1 | 51337452344 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium or High gloss shadow line |
S3MBA=Yes S760A=Yes |
|||||||||
| 05 | Window guide, left front door | 1 | 51337452347 | Shop at ECS Tuning | ||||||
| 05 | Window guide, right front door | 1 | 51337452348 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=Yes |
|||||||||
| 06 | Window frame cover, front left door | ALU SATINIERT | 1 | 51337452393 | Shop at ECS Tuning | |||||
| 06 | Window frame cover, front right door | ALU SATINIERT | 1 | 51337452394 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=No S760A=Yes |
|||||||||
| 06 | Window frame cover, front left door | SHADOWLINE | 1 | 51337473993 | Shop at ECS Tuning | |||||
| 06 | Window frame cover, front right door | SHADOWLINE | 1 | 51337473994 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=Yes |
|||||||||
| 07 | Channel cover,exterior,door, front left | ALU SATINIERT | 1 | 51337452363 | Shop at ECS Tuning | |||||
| 07 | Channel cover,exterior,door, front right | ALU SATINIERT | 1 | 51337452364 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=No S760A=No |
|||||||||
| 07 | Channel cover,exterior,door, front left | 1 | 51337452355 | Shop at ECS Tuning | ||||||
| 07 | Channel cover,exterior,door, front right | 1 | 51337452356 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3MBA=No S760A=Yes |
|||||||||
| 07 | Channel cover,exterior,door, front left | SHADOWLINE | 1 | 51337473997 | Shop at ECS Tuning | |||||
| 07 | Channel cover,exterior,door, front right | SHADOWLINE | 1 | 51337473998 | Shop at ECS Tuning | |||||
| 08 | Channel sealing,inside,door, front left | 1 | 51337452367 | Shop at ECS Tuning | ||||||
| 08 | Channel sealing,inside,door, front right | 1 | 51337452368 | Shop at ECS Tuning | ||||||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system |
S676A=No S688A=No |
|||||||||
| 09 | Cover, window frame, door front left | 1 | 51337464799 | Shop at ECS Tuning | ||||||
| 09 | Cover, window frame, door front right | 1 | 51337464800 | Shop at ECS Tuning | ||||||
| For vehicles with HiFi speaker system or Harman/Kardon Surround Sound system |
S676A=Yes S688A=Yes |
|||||||||
| 09 | Cover, window frame, door front left | 1 | 51339873235 | Shop at ECS Tuning | ||||||
| 09 | Cover, window frame, door front right | 1 | 51339873236 | Shop at ECS Tuning | ||||||
| 10 | Seal, outer left mirror triangle | 1 | 51137448001 | Shop at ECS Tuning | ||||||
| 10 | Seal, outer right mirror triangle | 1 | 51137448002 | Shop at ECS Tuning | ||||||
| 11 | Seal A-pillar, front left | 1 | 51137452425 | Shop at ECS Tuning | ||||||
| 11 | Seal A-pillar, front right | 1 | 51137452426 | Shop at ECS Tuning | ||||||
| 12 | Sealing, B-column, bottom left | 1 | 51137452427 | Shop at ECS Tuning | ||||||
| 12 | Sealing, B-column, bottom right | 1 | 51137452428 | Shop at ECS Tuning | ||||||
| 13 | Seal B-pillar trim panel front door left | 1 | 51137452421 | Shop at ECS Tuning | ||||||
| 13 | Seal B-pillar trim pan.front door ri. | 1 | 51137452422 | Shop at ECS Tuning | ||||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 14 | Grid, loudspeaker left | 1 | 51339873239 | Shop at ECS Tuning | ||||||
| 14 | Grid, loudspeaker right | 1 | 51339873240 | Shop at ECS Tuning | ||||||
| For vehicles with HiFi speaker system |
S676A=Yes |
|||||||||
| 14 | Cover, mirror baseplate, left | 1 | 51339873237 | Shop at ECS Tuning | ||||||
| 14 | Cover, mirror baseplate, right | 1 | 51339873238 | Shop at ECS Tuning | ||||||
| 15 | Fillister head screw | 8 | 07147453046 | Shop at ECS Tuning | ||||||
| 16 | Clip | 8 | 51337140714 | Shop at ECS Tuning | ||||||
| 17 | Plug-in retainer | 4 | 07147376600 | Shop at ECS Tuning | ||||||
