Trim cover, front for BMW 1 Series F40 116d (2024)

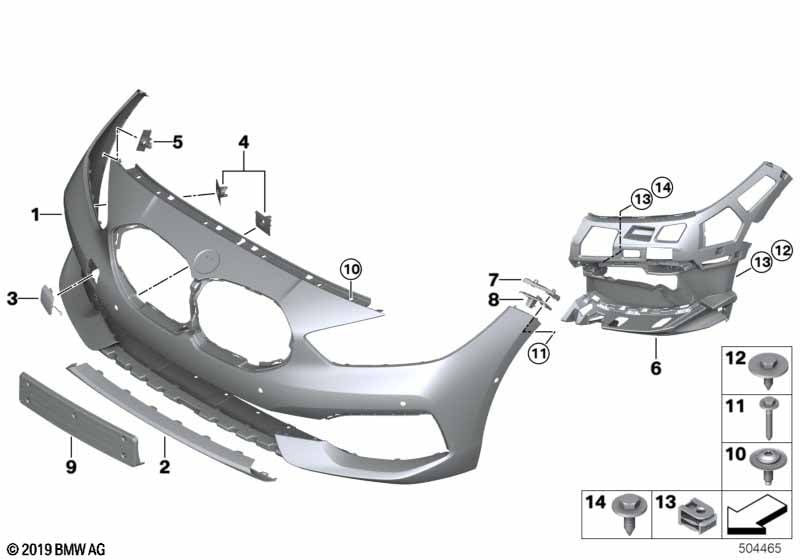

This Trim cover, front technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 116d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=No |
||||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system |
S508A=No S5DMA=No |
|||||||||
| 01 | Trim panel, bumper, front | 1 | 51119466831 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system Important notice! Observe product information. Use "Only in conjunction with" parts. |
S508A=No S5DMA=No |
|||||||||
| 01 | Trim panel, bumper, front | PDC/PMA | 1 | 51119466836 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Decoupling ring | 6 | 66209390408 | Shop at ECS Tuning | ||||||
| -- | Kit dummy trim | GEN 6.X | 1 | 51125A3F532 | Shop at ECS Tuning | |||||
| -- | Stick-on label | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line |
P7ACA=Yes P7LDA=Yes P7LEA=Yes P7S2A=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | LINES | 1 | 51115A0B7C8 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line Important notice! Observe product information. Use "Only in conjunction with" parts. |
P7ACA=Yes P7LDA=Yes P7LEA=Yes P7S2A=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | LINES PDC/PMA | 1 | 51115A0B7D0 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Decoupling ring | 6 | 66209390408 | Shop at ECS Tuning | ||||||
| -- | Kit dummy trim | GEN 6.X | 1 | 51125A3F532 | Shop at ECS Tuning | |||||
| -- | Stick-on label | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line and Park Distance Control (PDC) |
P7ACA=Yes P7LDA=Yes P7LEA=Yes P7S2A=Yes S508A=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | LINES PDC | 1 | 51115A0B7C9 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line and Park Distance Control (PDC) |
P7ACA=No P7LDA=No P7LEA=No P7S2A=No S508A=Yes |
|||||||||
| 01 | Trim panel, bumper, front | PDC | 1 | 51119466835 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line |
P7ACA=No P7LDA=No P7LEA=No P7S2A=No |
|||||||||
| 02 | Impact strip, bumper, front center | 1 | 51117463517 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line or Modell Sport Line or Modell Luxury Line or Luxury Line |
P7ACA=Yes P7LDA=Yes P7LEA=Yes P7S2A=Yes |
|||||||||
| 02 | Impact strip, bumper, front center | LUXURY/SPORT | 1 | 51117475986 | Shop at ECS Tuning | |||||
| 03 | Front towing hitch cover | 1 | 51119463082 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system |
S508A=Yes S5DMA=Yes |
|||||||||
| 04 | Set of mounts for PDC sensor, front | 1 | 51119466834 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system |
S5DMA=Yes |
|||||||||
| 05 | Set, mounts for PMA sensor | 1 | 51119466833 | Shop at ECS Tuning | ||||||
| 06 | Support, fog lamp left | GESCHLOSSEN | 1 | 51117459709 | Shop at ECS Tuning | |||||
| 06 | Support, fog lamp right | GESCHLOSSEN | 1 | 51117459710 | Shop at ECS Tuning | |||||
| 07 | Bumper guide, left upper | 1 | 51117459727 | Shop at ECS Tuning | ||||||
| 07 | Bumper guide, right upper | 1 | 51117459728 | Shop at ECS Tuning | ||||||
| 08 | Guide bumper, left lower | 1 | 51117459731 | Shop at ECS Tuning | ||||||
| 08 | Bumper guide right lower | 1 | 51117459732 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and Deleted, licence plate support front and Control of number-plate attachment |
L807A=No S962A=No S992A=No |
|||||||||
| 09 | Baseplate for license plate | ECE | 1 | 51117459871 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Deleted, licence plate support front and Control of number-plate attachment |
L807A=Yes S962A=No S992A=Yes |
|||||||||
| 09 | Baseplate for license plate | JPN | 1 | 51117459872 | Shop at ECS Tuning | |||||
| 10 | Oval-head screw with spring washer | M6X20 | 6 | 07145A48F73 | Shop at ECS Tuning | |||||
| 11 | Screw | TS5X35 SW8 D=15 | 4 | 07129907535 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | TS5X17 SW8 D=22 | 4 | 07149126886 | Shop at ECS Tuning | |||||
| 13 | C-clip for plastic nut | TS5 | 4 | 07147311312 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | TS5X17 SW8 D=16 | 6 | 07149126885 | $0.49 | Shop at ECS Tuning | ||||
