Carrier, front for BMW 1 Series F40 128ti (2024)

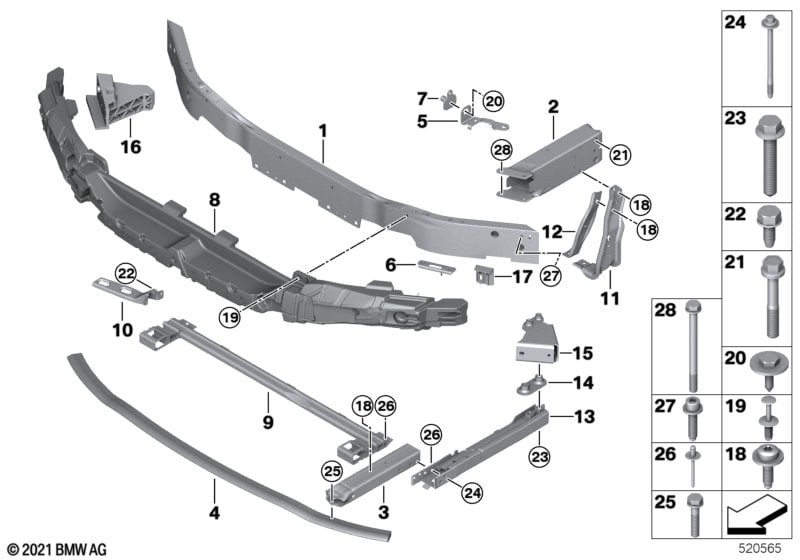

This Carrier, front technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 128ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mount, bumper, front, top | 1 | 51117459883 | Shop at ECS Tuning | ||||||
| 02 | Deformation element, front left | 1 | 51117459887 | Shop at ECS Tuning | ||||||
| 02 | Deformation element, front right | 1 | 51117459888 | Shop at ECS Tuning | ||||||
| 03 | Deformation element, front lower left | 1 | 51117459891 | Shop at ECS Tuning | ||||||
| 03 | Deformation element, front lower right | 1 | 51117459892 | Shop at ECS Tuning | ||||||
| 04 | Mount, bumper, front, lower | 1 | 51117480390 | Shop at ECS Tuning | ||||||
| 05 | Bracket for ventilation flap, top left | 1 | 51137491657 | Shop at ECS Tuning | ||||||
| 05 | Bracket, air flap, top right | 1 | 51137491658 | Shop at ECS Tuning | ||||||
| 06 | Nut plate | M8 | 2 | 51117342108 | Shop at ECS Tuning | |||||
| 07 | Supporting plate | 2 | 51137492075 | Shop at ECS Tuning | ||||||
| For vehicles with M Aerodynamics package |
S715A=No |
|||||||||
| 08 | Shock absorber front | 1 | 51119853825 | Shop at ECS Tuning | ||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 08 | Impact absorber, top | M | 1 | 51118070942 | Shop at ECS Tuning | |||||
| 09 | Crosslink, front | 1 | 51117301605 | Shop at ECS Tuning | ||||||
| 10 | Mount for washer fluid reservoir | 1 | 51647318491 | Shop at ECS Tuning | ||||||
| 11 | Vertical brace, left | 1 | 51117301585 | Shop at ECS Tuning | ||||||
| 11 | Vertical brace, right | 1 | 51117498085 | Shop at ECS Tuning | ||||||
| 13 | Adapter, lower right | 1 | 51117301604 | Shop at ECS Tuning | ||||||
| 14 | Nut plate | M12 | 2 | 51117418290 | Shop at ECS Tuning | |||||
| 17 | Support for bumper | 2 | 51117301619 | Shop at ECS Tuning | ||||||
| 18 | Countersunk screw | M6X20-PCU2-10.9 | 21 | 07119908698 | Shop at ECS Tuning | |||||
| 19 | Expanding rivet | 4 | 51127004445 | $0.33 | Shop at ECS Tuning | |||||
| 20 | Hex bolt | M6X17-PC-10.9 Z | 2 | 07148499903 | Shop at ECS Tuning | |||||
| 21 | Hex bolt with washer | M12X1,5X80 | 4 | 07147411870 | Shop at ECS Tuning | |||||
| 22 | Screw | M6X14 | 3 | 07146973023 | $0.36 | Shop at ECS Tuning | ||||
| 23 | Hexagon screw with flange | M12X1,5X70-10.9 | 4 | 07129908636 | Shop at ECS Tuning | |||||
| 24 | Hexagon screw, self-threading | M6X90 | 6 | 07147430388 | Shop at ECS Tuning | |||||
| 25 | Hex bolt with washer | M6X30-ZNNIV SI | 2 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 26 | Blind rivet | 4,5 MM | 4 | 07146984985 | $0.28 | Shop at ECS Tuning | ||||
| 27 | Fillister-head screw | 2 | 07149166130 | Shop at ECS Tuning | ||||||
| 28 | Hex bolt | M8X95-10.9-ZNS3 | 4 | 07119904996 | $1.53 | Shop at ECS Tuning | ||||
