Trim, decor elements, front for BMW 1 Series F40 118d

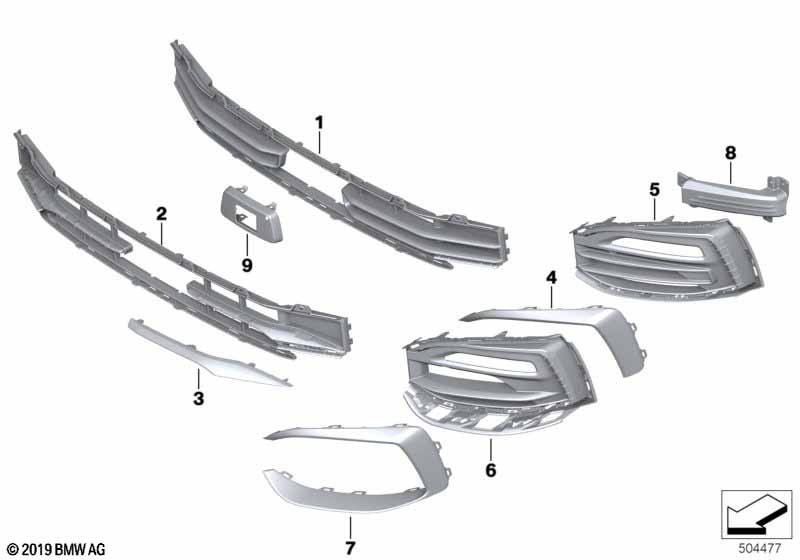

This Trim, decor elements, front technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 118d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=No |
||||||||
| For vehicles with Sport Line and Luxury Line |
P7ACA=No P7S2A=No |
|||||||||
| 01 | Grill, center brake cooling chamber | 1 | 51117459712 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line |
P7ACA=Yes P7LDA=Yes P7LEA=Yes P7S2A=Yes |
|||||||||
| 02 | Grid, center open | SPORT | 1 | 51117462936 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line |
P7ACA=Yes P7LDA=Yes P7LEA=Yes P7S2A=No |
|||||||||
| 02 | Grid, center open | SPORT | 1 | 51117462936 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line |
P7ACA=Yes P7LDA=Yes P7LEA=No P7S2A=Yes |
|||||||||
| 02 | Grid, center open | SPORT | 1 | 51117462936 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line |
P7ACA=Yes P7LDA=Yes P7LEA=No P7S2A=No |
|||||||||
| 02 | Grid, center open | SPORT | 1 | 51117462936 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line |
P7ACA=Yes P7LDA=No P7LEA=Yes P7S2A=Yes |
|||||||||
| 02 | Grid, center open | SPORT | 1 | 51117462936 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line |
P7ACA=Yes P7LDA=No P7LEA=Yes P7S2A=No |
|||||||||
| 02 | Grid, center open | SPORT | 1 | 51117462936 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line |
P7ACA=Yes P7LDA=No P7LEA=No P7S2A=Yes |
|||||||||
| 02 | Grid, center open | SPORT | 1 | 51117462936 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line |
P7ACA=Yes P7LDA=No P7LEA=No P7S2A=No |
|||||||||
| 02 | Grid, center open | SPORT | 1 | 51117462936 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line |
P7ACA=No P7LDA=Yes P7LEA=Yes P7S2A=Yes |
|||||||||
| 02 | Grid, center open | SPORT | 1 | 51117462936 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line |
P7ACA=No P7LDA=Yes P7LEA=Yes P7S2A=No |
|||||||||
| 02 | Grid, center open | SPORT | 1 | 51117462936 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line |
P7ACA=No P7LDA=Yes P7LEA=No P7S2A=Yes |
|||||||||
| 02 | Grid, center open | SPORT | 1 | 51117462936 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line |
P7ACA=No P7LDA=Yes P7LEA=No P7S2A=No |
|||||||||
| 02 | Grid, center open | SPORT | 1 | 51117462936 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line |
P7ACA=No P7LDA=No P7LEA=Yes P7S2A=Yes |
|||||||||
| 02 | Grid, center open | SPORT | 1 | 51117462936 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line |
P7ACA=No P7LDA=No P7LEA=Yes P7S2A=No |
|||||||||
| 02 | Grid, center open | SPORT | 1 | 51117462936 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line |
P7ACA=No P7LDA=No P7LEA=No P7S2A=Yes |
|||||||||
| 02 | Grid, center open | SPORT | 1 | 51117462936 | Shop at ECS Tuning | |||||
| For vehicles with Modell Luxury Line and Luxury Line |
P7LEA=Yes P7S2A=Yes |
|||||||||
| 03 | Moulding front left | LUXURY | 1 | 51119850651 | Shop at ECS Tuning | |||||
| 03 | Moulding front right | LUXURY | 1 | 51119850652 | Shop at ECS Tuning | |||||
| For vehicles with Modell Luxury Line and Luxury Line |
P7LEA=Yes P7S2A=No |
|||||||||
| 03 | Moulding front left | LUXURY | 1 | 51119850651 | Shop at ECS Tuning | |||||
| 03 | Moulding front right | LUXURY | 1 | 51119850652 | Shop at ECS Tuning | |||||
| For vehicles with Modell Luxury Line and Luxury Line |
P7LEA=No P7S2A=Yes |
|||||||||
| 03 | Moulding front left | LUXURY | 1 | 51119850651 | Shop at ECS Tuning | |||||
| 03 | Moulding front right | LUXURY | 1 | 51119850652 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line |
P7ACA=Yes P7LDA=Yes |
|||||||||
| 03 | Moulding front left | SPORT | 1 | 51117475995 | Shop at ECS Tuning | |||||
| 03 | Moulding front right | SPORT | 1 | 51117475996 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line |
P7ACA=Yes P7LDA=No |
|||||||||
| 03 | Moulding front left | SPORT | 1 | 51117475995 | Shop at ECS Tuning | |||||
| 03 | Moulding front right | SPORT | 1 | 51117475996 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line |
P7ACA=No P7LDA=Yes |
|||||||||
| 03 | Moulding front left | SPORT | 1 | 51117475995 | Shop at ECS Tuning | |||||
| 03 | Moulding front right | SPORT | 1 | 51117475996 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Luxury Line |
P7ACA=No P7S2A=No |
|||||||||
| 04 | Trim on grill, side, left | BASIS | 1 | 51117475991 | Shop at ECS Tuning | |||||
| 04 | Trim on grill, side, right | BASIS | 1 | 51117475992 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line |
P7ACA=No P7LDA=No P7LEA=No P7S2A=No |
|||||||||
| 05 | Grid lateral left | 1 | 51117459715 | Shop at ECS Tuning | ||||||
| 05 | Grid lateral right | 1 | 51117459716 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line and Luxury Line |
P7ACA=Yes P7S2A=Yes |
|||||||||
| 06 | Grid lateral left | LUXURY/SPORT | 1 | 51117459717 | Shop at ECS Tuning | |||||
| 06 | Grid lateral right | LUXURY/SPORT | 1 | 51117459718 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Luxury Line |
P7ACA=Yes P7S2A=No |
|||||||||
| 06 | Grid lateral left | LUXURY/SPORT | 1 | 51117459717 | Shop at ECS Tuning | |||||
| 06 | Grid lateral right | LUXURY/SPORT | 1 | 51117459718 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Luxury Line |
P7ACA=No P7S2A=Yes |
|||||||||
| 06 | Grid lateral left | LUXURY/SPORT | 1 | 51117459717 | Shop at ECS Tuning | |||||
| 06 | Grid lateral right | LUXURY/SPORT | 1 | 51117459718 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line |
P7ACA=Yes |
|||||||||
| 07 | Trim on grill, side, left | SPORT | 1 | 51117475993 | Shop at ECS Tuning | |||||
| 07 | Trim on grill, side, right | SPORT | 1 | 51117475994 | Shop at ECS Tuning | |||||
| For vehicles with Luxury Line |
P7S2A=Yes |
|||||||||
| 07 | Trim on grill, side, left | LUXURY | 1 | 51115A39385 | Shop at ECS Tuning | |||||
| 07 | Trim on grill, side, right | LUXURY | 1 | 51115A39386 | Shop at ECS Tuning | |||||
| For vehicles with LED Fog lights |
S5A1A=No |
|||||||||
| 08 | Cover, fog lamp, left | 1 | 51117459879 | Shop at ECS Tuning | ||||||
| 08 | Cover, fog lamp, right | 1 | 51117459880 | Shop at ECS Tuning | ||||||
| For vehicles with Active cruise control+Stop&Go function |
S5DFA=Yes |
|||||||||
| 09 | Cover | MRR | 1 | 51118496371 | Shop at ECS Tuning | |||||
| For vehicles with Active cruise control+Stop&Go function |
S5DFA=No |
|||||||||
| 09 | Cover, sensor | 1 | 51117477772 | Shop at ECS Tuning | ||||||
