Firearms compartment and door trim panel for BMW 3 Series G20 Sedan LCI 320i (2023)

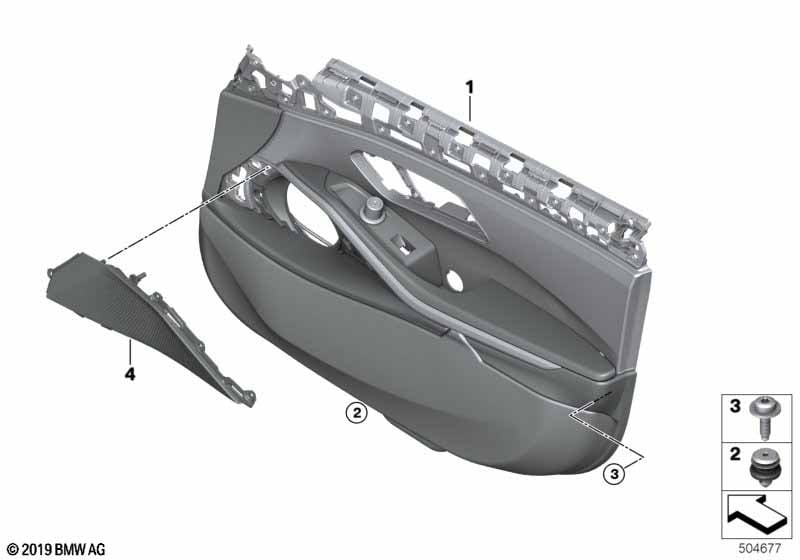

This Firearms compartment and door trim panel technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Weapon box |
S130A=Yes |
||||||||
| For vehicles with Cloth Hevelius/anthracite |
EHAT=Yes |
|||||||||
| 01 | Door trim panel, front right | ANTHRAZIT | 1 | 51418089113 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/black |
KHSW=Yes |
|||||||||
| 01 | Door trim panel, front right | 1 | 07/2022 | 51417887177 | NoS | Shop at ECS Tuning | ||||
| 02 | Clip | 18 | 07145A4BA83 | Shop at ECS Tuning | ||||||
| 03 | Countersunk screw | M6X20-PCU2-10.9 | 6 | 07119908698 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 04 | Cover loudspeaker left | 1 | 51417447237 | NoS | Shop at ECS Tuning | |||||
| 04 | Cover loudspeaker right | 1 | 51417447238 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan LCI 320i Firearms compartment and door trim panel?
- This technical diagram illustrates the Firearms compartment and door trim panel within the Vehicle trim group for the 3 Series G20 Sedan LCI 320i produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Door trim panel, front right (Part #51418089113).
- Which models use the hardware listed in this Firearms compartment and door trim panel?
- The hardware and components featured in the Firearms compartment and door trim panel are specific to the 3 Series G20 Sedan LCI 320i produced during 2023. These technical specifications ensure that parts like the Door trim panel, front right (51418089113) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Firearms compartment and door trim panel assembly?
- Each item in the Firearms compartment and door trim panel corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan LCI 320i, you can identify the Door trim panel, front right by locating its position on the schematic, which then links to the official BMW part number 51418089113 for the Vehicle trim section.
