Reinforcement for body, front for BMW 8 Series F92 M8 Coupé M8 (2025)

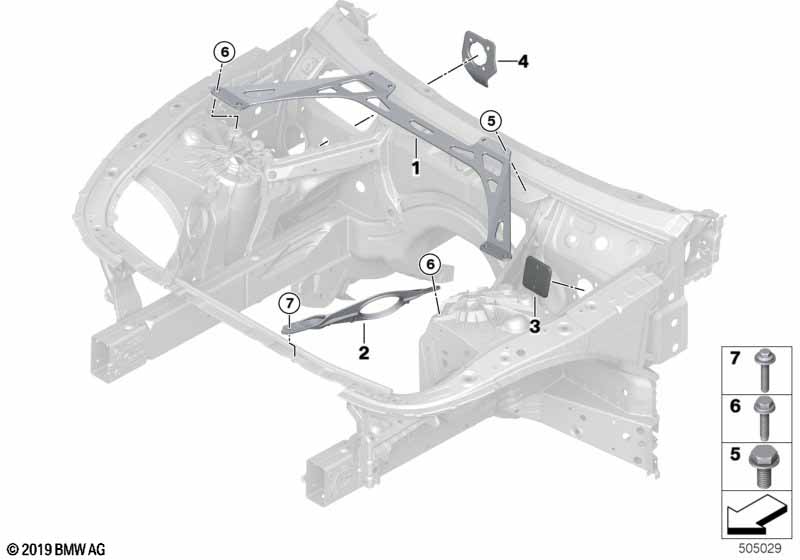

This Reinforcement for body, front technical drawing provides a detailed breakdown of the assembly for the 8 Series F92 M8 Coupé M8. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Strut brace, bulkhead | M | 1 | 51618075677 | Shop at ECS Tuning | |||||
| 02 | Strut tower brace, left | M | 1 | 51618081735 | Shop at ECS Tuning | |||||
| 02 | Strut tower brace, right | M | 1 | 51618081736 | Shop at ECS Tuning | |||||
| 03 | Cover for brake cylinder | 1 | 51717363246 | Shop at ECS Tuning | ||||||
| 04 | Right splash wall reinforcement | 1 | 51717432450 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt with washer | M10X25-SW18 | 4 | 51648076922 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M | 6 | 07148076410 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M10X50-10.9 | 2 | 31306874879 | Shop at ECS Tuning |
