Carrier, rear for BMW 8 Series F93 M8 Gran Coupe M8 (2025)

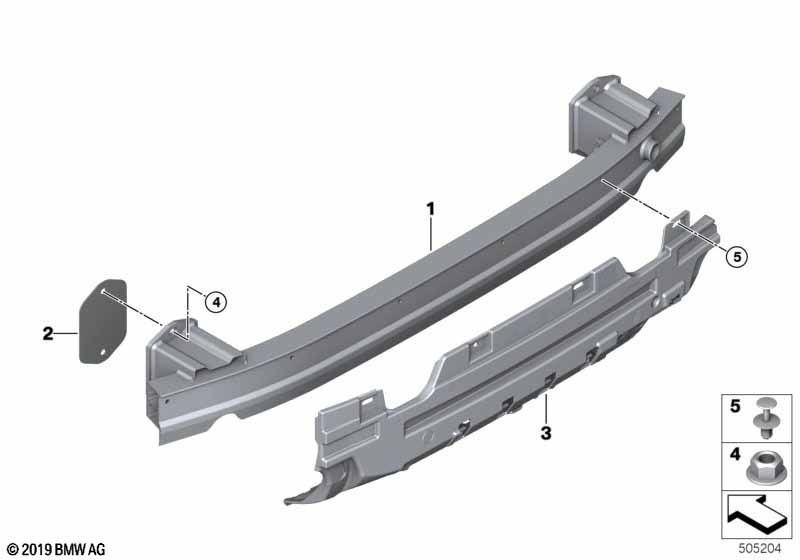

This Carrier, rear technical drawing provides a detailed breakdown of the assembly for the 8 Series F93 M8 Gran Coupe M8. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier, bumper rear | 1 | 51127373849 | Shop at ECS Tuning | ||||||
| 02 | Seal | 2 | 51125A7CEA6 | Shop at ECS Tuning | ||||||
| 03 | Adapter for support rear | -M- | 1 | 51128070741 | Shop at ECS Tuning | |||||
| 04 | Hex nut | 4 | 07147266441 | Shop at ECS Tuning | ||||||
| 05 | Expanding rivet | 6 | 07147401727 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series F93 M8 Gran Coupe M8 Carrier, rear?
- This technical diagram illustrates the Carrier, rear within the Vehicle trim group for the 8 Series F93 M8 Gran Coupe M8 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Carrier, bumper rear (Part #51127373849).
- Which models use the hardware listed in this Carrier, rear?
- The hardware and components featured in the Carrier, rear are specific to the 8 Series F93 M8 Gran Coupe M8 produced during 2025. These technical specifications ensure that parts like the Carrier, bumper rear (51127373849) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carrier, rear assembly?
- Each item in the Carrier, rear corresponds to the numbered list below the illustration. For the 8 Series F93 M8 Gran Coupe M8, you can identify the Carrier, bumper rear by locating its position on the schematic, which then links to the official BMW part number 51127373849 for the Vehicle trim section.
