Door window lifting mechanism front for BMW 2 Series F44 Gran Coupé 220iX

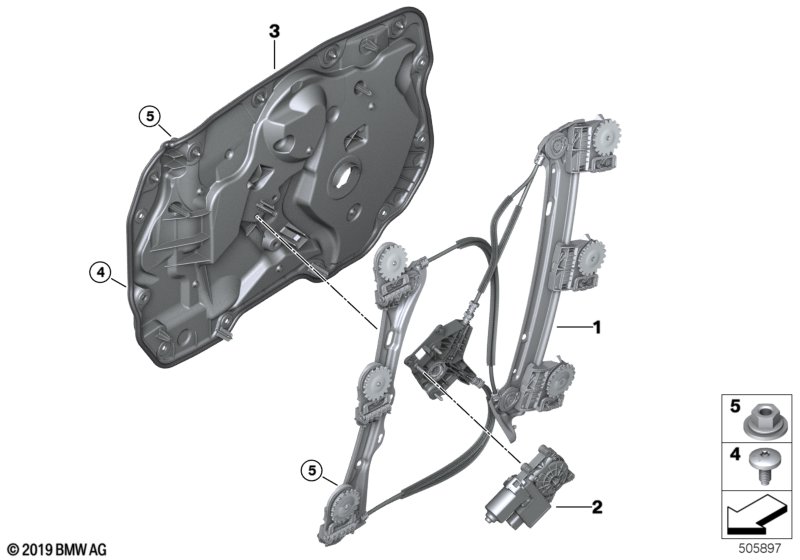

This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 220iX. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window lifter without motor,front left | 1 | 51334876387 | Shop at ECS Tuning | ||||||
| 01 | Window lifter without motor,front right | 1 | 51334876388 | Shop at ECS Tuning | ||||||
| 02 | Drive for window lifter, front left | 1 | 61359854229 | Shop at ECS Tuning | ||||||
| 02 | Drive for window lifter, front right | 1 | 61359854230 | Shop at ECS Tuning | ||||||
| 03 | Acoustic cover, right front | 1 | 05/2024 | 51217483814 | Shop at ECS Tuning | |||||
| 03 | Acoustic cover, left front | 1 | 05/2024 | 51485B39BA7 | NoS | Shop at ECS Tuning | ||||
| 03 | Acoustic cover, left front | 1 | 51217483813 | Shop at ECS Tuning | ||||||
| 03 | Acoustic cover, right front | 1 | 51485B39BA8 | NoS | Shop at ECS Tuning | |||||
| 04 | Fillister head screw | M6 | 32 | 07147465017 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M6 | 14 | 07146951627 | $0.53 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F44 Gran Coupé 220iX Door window lifting mechanism front?
- This technical diagram illustrates the Door window lifting mechanism front within the Vehicle trim group for the 2 Series F44 Gran Coupé 220iX. It provides a detailed exploded view of the components, identifying key parts such as the Window lifter without motor,front left (Part #51334876387).
- Which models use the hardware listed in this Door window lifting mechanism front?
- The hardware and components featured in the Door window lifting mechanism front are specific to the 2 Series F44 Gran Coupé 220iX. These technical specifications ensure that parts like the Window lifter without motor,front left (51334876387) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door window lifting mechanism front assembly?
- Each item in the Door window lifting mechanism front corresponds to the numbered list below the illustration. For the 2 Series F44 Gran Coupé 220iX, you can identify the Window lifter without motor,front left by locating its position on the schematic, which then links to the official BMW part number 51334876387 for the Vehicle trim section.
