Trim cover, front for BMW 2 Series F44 Gran Coupé 220iX

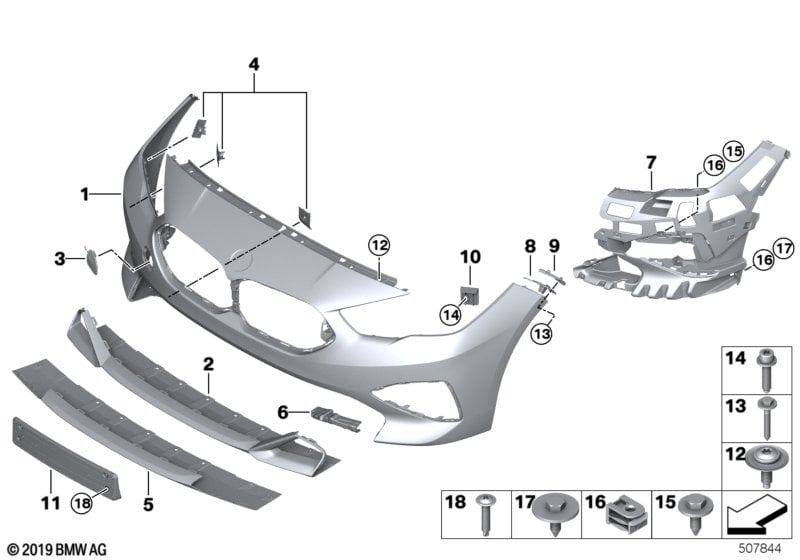

This Trim cover, front technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 220iX. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=No |
||||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system |
S508A=Yes S5DMA=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | PDC/PMA | 1 | 51119463091 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system |
S508A=Yes S5DMA=No |
|||||||||
| 01 | Trim cover, bumper, primed, front | PDC/PMA | 1 | 51119463091 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system |
S508A=No S5DMA=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | PDC/PMA | 1 | 51119463091 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system |
S508A=Yes S5DMA=No |
|||||||||
| 01 | Trim cover, bumper, primed, front | PDC | 1 | 51119463089 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system Important notice! Observe product information. Use "Only in conjunction with" parts. |
S508A=Yes S5DMA=No |
|||||||||
| 01 | Trim cover, bumper, primed, front | PDC/PMA | 1 | 51119463091 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Decoupling ring | 2 | 66209390408 | Shop at ECS Tuning | ||||||
| -- | Kit dummy trim | GEN 6.X | 1 | 51125A3F532 | Shop at ECS Tuning | |||||
| -- | Stick-on label | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system |
S508A=No S5DMA=No |
|||||||||
| 01 | Trim cover, bumper, primed, front | 1 | 51119463084 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system Important notice! Observe product information. Use "Only in conjunction with" parts. |
S508A=No S5DMA=No |
|||||||||
| 01 | Trim cover, bumper, primed, front | PDC/PMA | 1 | 51119463091 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Decoupling ring | 6 | 66209390408 | Shop at ECS Tuning | ||||||
| -- | Kit dummy trim | GEN 6.X | 1 | 51125A3F532 | Shop at ECS Tuning | |||||
| -- | Stick-on label | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line and M Aerodynamics package |
P7ACA=No P7LDA=No P7LEA=No P7S2A=No S715A=No |
|||||||||
| 02 | Trim panel, bumper, front bottom | 1 | 51117490101 | Shop at ECS Tuning | ||||||
| 03 | Flap, towing eye, primed | 1 | 51119463086 | Shop at ECS Tuning | ||||||
| 04 | Set of mounts, front PDC / PMA sensor | 1 | 51119463097 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line and M Aerodynamics package |
P7ACA=Yes P7LDA=Yes P7LEA=Yes P7S2A=Yes S715A=No |
|||||||||
| 05 | Trim panel, bumper, front bottom | 1 | 51117493211 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line and M Aerodynamics package |
P7ACA=Yes P7LDA=Yes P7LEA=Yes P7S2A=No S715A=No |
|||||||||
| 05 | Trim panel, bumper, front bottom | 1 | 51117493211 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line and M Aerodynamics package |
P7ACA=Yes P7LDA=Yes P7LEA=No P7S2A=Yes S715A=No |
|||||||||
| 05 | Trim panel, bumper, front bottom | 1 | 51117493211 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line and M Aerodynamics package |
P7ACA=Yes P7LDA=Yes P7LEA=No P7S2A=No S715A=No |
|||||||||
| 05 | Trim panel, bumper, front bottom | 1 | 51117493211 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line and M Aerodynamics package |
P7ACA=Yes P7LDA=No P7LEA=Yes P7S2A=Yes S715A=No |
|||||||||
| 05 | Trim panel, bumper, front bottom | 1 | 51117493211 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line and M Aerodynamics package |
P7ACA=Yes P7LDA=No P7LEA=Yes P7S2A=No S715A=No |
|||||||||
| 05 | Trim panel, bumper, front bottom | 1 | 51117493211 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line and M Aerodynamics package |
P7ACA=Yes P7LDA=No P7LEA=No P7S2A=Yes S715A=No |
|||||||||
| 05 | Trim panel, bumper, front bottom | 1 | 51117493211 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line and M Aerodynamics package |
P7ACA=Yes P7LDA=No P7LEA=No P7S2A=No S715A=No |
|||||||||
| 05 | Trim panel, bumper, front bottom | 1 | 51117493211 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line and M Aerodynamics package |
P7ACA=No P7LDA=Yes P7LEA=Yes P7S2A=Yes S715A=No |
|||||||||
| 05 | Trim panel, bumper, front bottom | 1 | 51117493211 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line and M Aerodynamics package |
P7ACA=No P7LDA=Yes P7LEA=Yes P7S2A=No S715A=No |
|||||||||
| 05 | Trim panel, bumper, front bottom | 1 | 51117493211 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line and M Aerodynamics package |
P7ACA=No P7LDA=Yes P7LEA=No P7S2A=Yes S715A=No |
|||||||||
| 05 | Trim panel, bumper, front bottom | 1 | 51117493211 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line and M Aerodynamics package |
P7ACA=No P7LDA=Yes P7LEA=No P7S2A=No S715A=No |
|||||||||
| 05 | Trim panel, bumper, front bottom | 1 | 51117493211 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line and M Aerodynamics package |
P7ACA=No P7LDA=No P7LEA=Yes P7S2A=Yes S715A=No |
|||||||||
| 05 | Trim panel, bumper, front bottom | 1 | 51117493211 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line and M Aerodynamics package |
P7ACA=No P7LDA=No P7LEA=Yes P7S2A=No S715A=No |
|||||||||
| 05 | Trim panel, bumper, front bottom | 1 | 51117493211 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line and Modell Sport Line and Modell Luxury Line and Luxury Line and M Aerodynamics package |
P7ACA=No P7LDA=No P7LEA=No P7S2A=Yes S715A=No |
|||||||||
| 05 | Trim panel, bumper, front bottom | 1 | 51117493211 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 06 | Insert left front | 1 | 51119478761 | Shop at ECS Tuning | ||||||
| 06 | Insert right front | 1 | 51119478762 | Shop at ECS Tuning | ||||||
| 07 | Support, fog lamp left | OFFEN | 1 | 51117474595 | Shop at ECS Tuning | |||||
| 07 | Support, fog lamp right | GESCHLOSSEN | 1 | 51117474596 | Shop at ECS Tuning | |||||
| 08 | Guide bumper, left lower | 1 | 51117475273 | Shop at ECS Tuning | ||||||
| 08 | Bumper guide right lower | 1 | 51117475274 | Shop at ECS Tuning | ||||||
| 09 | Bumper guide, left upper | 1 | 51117474597 | Shop at ECS Tuning | ||||||
| 09 | Bumper guide, right upper | 1 | 51117474598 | Shop at ECS Tuning | ||||||
| 10 | Support for bumper | 2 | 51117301619 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan |
L807A=No |
|||||||||
| 11 | Baseplate for license plate | ECE | 1 | 51137474672 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 11 | Baseplate for license plate | US | 1 | 51137474673 | Shop at ECS Tuning | |||||
| 12 | Oval-head screw with washer | M6X20 | 6 | 03/2023 | 07147406384 | ENDED | Shop at ECS Tuning | |||
| 12 | Oval-head screw with spring washer | M6X20 | 6 | 07145A48F73 | Shop at ECS Tuning | |||||
| 13 | Screw | TS5X35 SW8 D=15 | 4 | 07129907535 | Shop at ECS Tuning | |||||
| 14 | Fillister-head screw | 2 | 07149166130 | Shop at ECS Tuning | ||||||
| 15 | Hex bolt | TS5X17 SW8 D=16 | 6 | 07149126885 | $0.49 | Shop at ECS Tuning | ||||
| 16 | C-clip for plastic nut | TS5 | 6 | 07147311312 | Shop at ECS Tuning | |||||
| 17 | Hex bolt | TS5X17 SW8 D=22 | 8 | 07149126886 | Shop at ECS Tuning | |||||
| 18 | Fillister head screw | TS5X20 | 4 | 07146986938 | $0.45 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
