M Trim, front for BMW 2 Series F44 Gran Coupé 220d (2023)

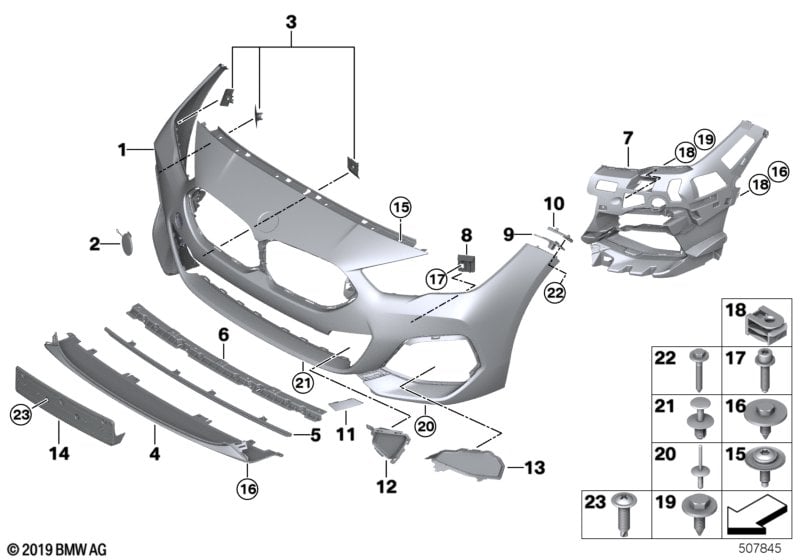

This M Trim, front technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=Yes |
||||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system |
S508A=No S5DMA=No |
|||||||||
| 01 | Trim cover, bumper, primed, front | 1 | 51118080694 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system Important notice! Observe product information. Use "Only in conjunction with" parts. |
S508A=No S5DMA=No |
|||||||||
| 01 | Trim cover, bumper, primed, front | PDC/PMA | 1 | 51118080696 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Decoupling ring | 6 | 66209390408 | Shop at ECS Tuning | ||||||
| -- | Kit dummy trim | GEN 6.X | 1 | 51125A3F532 | Shop at ECS Tuning | |||||
| -- | Stick-on label | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system |
S508A=Yes S5DMA=No |
|||||||||
| 01 | Trim cover, bumper, primed, front | PDC | 1 | 51118080695 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system Important notice! Observe product information. Use "Only in conjunction with" parts. |
S508A=Yes S5DMA=No |
|||||||||
| 01 | Trim cover, bumper, primed, front | PDC/PMA | 1 | 51118080696 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Decoupling ring | 2 | 66209390408 | Shop at ECS Tuning | ||||||
| -- | Kit dummy trim | GEN 6.X | 1 | 51125A3F532 | Shop at ECS Tuning | |||||
| -- | Stick-on label | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system |
S508A=No S5DMA=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | PDC/PMA | 1 | 51118080696 | Shop at ECS Tuning | |||||
| 02 | Cover, tow fitting, front, primed | MSP | 1 | 51118080705 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system |
S508A=Yes S5DMA=Yes |
|||||||||
| 03 | Set of mounts, front PDC / PMA sensor | 1 | 51118080707 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system |
S508A=Yes S5DMA=No |
|||||||||
| 03 | Set of mounts, front PDC / PMA sensor | 1 | 51118080707 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system |
S508A=No S5DMA=Yes |
|||||||||
| 03 | Set of mounts, front PDC / PMA sensor | 1 | 51118080707 | Shop at ECS Tuning | ||||||
| 04 | Front splitter | M | 1 | 51118075968 | Shop at ECS Tuning | |||||
| 05 | Pressure lip, front | MPA | 1 | 51118077610 | Shop at ECS Tuning | |||||
| 06 | Mount, bumper | M | 1 | 51118075509 | Shop at ECS Tuning | |||||
| 07 | Support, fog lamp left | 1 | 51118075481 | Shop at ECS Tuning | ||||||
| 07 | Support, fog lamp right | 1 | 51118075482 | Shop at ECS Tuning | ||||||
| 08 | Support for bumper | 2 | 51117301619 | Shop at ECS Tuning | ||||||
| 09 | Guide bumper, left lower | 1 | 51117475273 | Shop at ECS Tuning | ||||||
| 09 | Bumper guide right lower | 1 | 51117475274 | Shop at ECS Tuning | ||||||
| 10 | Bumper guide, left upper | 1 | 51117474597 | Shop at ECS Tuning | ||||||
| 10 | Bumper guide, right upper | 1 | 51117474598 | Shop at ECS Tuning | ||||||
| 11 | Insert, front spoiler, left | M | 1 | 51118075575 | Shop at ECS Tuning | |||||
| 11 | Insert, front spoiler, right | M | 1 | 51118075576 | Shop at ECS Tuning | |||||
| 12 | Lid, brake ventilation duct, left | MSP | 1 | 51118075495 | Shop at ECS Tuning | |||||
| 12 | Lid, brake ventilation duct, right | MSP | 1 | 51118075496 | Shop at ECS Tuning | |||||
| 13 | Cover left | MSP | 1 | 51118075493 | Shop at ECS Tuning | |||||
| 13 | Cover right | MSP | 1 | 51118075494 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 14 | Baseplate for license plate | CHINA | 1 | 51139464583 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 14 | Baseplate for license plate | US/JP MSP | 1 | 51118075486 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version China |
L807A=Yes L8AAA=Yes |
|||||||||
| 14 | Baseplate for license plate | ECE MSP | 1 | 51118075570 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version China |
L807A=No L8AAA=Yes |
|||||||||
| 14 | Baseplate for license plate | ECE MSP | 1 | 51118075570 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version China |
L807A=No L8AAA=No |
|||||||||
| 14 | Baseplate for license plate | ECE MSP | 1 | 51118075570 | Shop at ECS Tuning | |||||
| 15 | Oval-head screw with spring washer | M6X20 | 6 | 07145A48F73 | Shop at ECS Tuning | |||||
| 16 | Hex bolt | TS5X17 SW8 D=22 | 9 | 07149126886 | Shop at ECS Tuning | |||||
| 17 | Fillister-head screw | 2 | 07149166130 | Shop at ECS Tuning | ||||||
| 18 | C-clip for plastic nut | TS5 | 6 | 07147311312 | Shop at ECS Tuning | |||||
| 19 | Hex bolt | TS5X17 SW8 D=16 | 6 | 07149126885 | $0.49 | Shop at ECS Tuning | ||||
| 20 | Expanding rivet | 10 | 51717002953 | $0.78 | Shop at ECS Tuning | |||||
| 21 | Expanding rivet | D = 8MM | 4 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 22 | Screw | TS5X35 SW8 D=15 | 4 | 07129907535 | Shop at ECS Tuning | |||||
| 23 | Fillister head screw | TS5X20 | 4 | 07146986938 | $0.45 | Shop at ECS Tuning | ||||
