M cover for rocker panel / wheel arch for BMW 2 Series F44 Gran Coupé 220iX

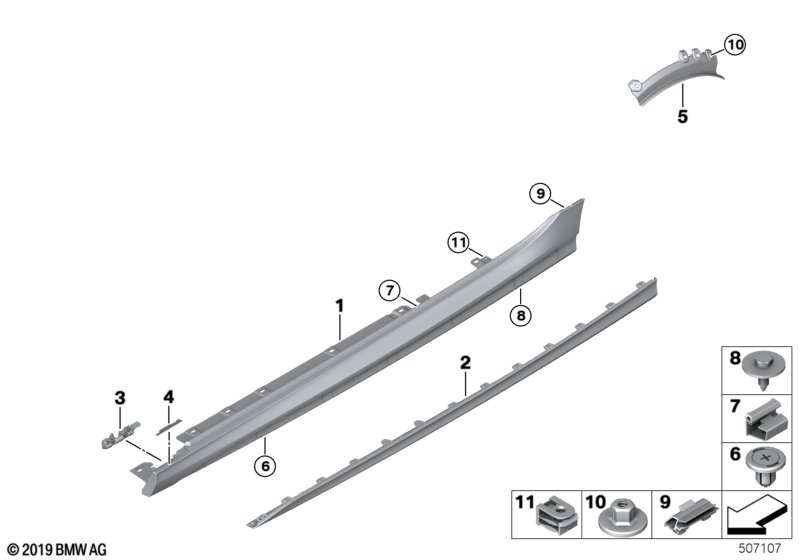

This M cover for rocker panel / wheel arch technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 220iX. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=Yes |
||||||||
| 01 | Sill trim panel, primed left | MSP | 1 | 51778080945 | Shop at ECS Tuning | |||||
| 01 | Sill trim panel, primed right | MSP | 1 | 51778080946 | Shop at ECS Tuning | |||||
| 02 | Left door sill cover | MSP | 1 | 51778075469 | Shop at ECS Tuning | |||||
| 02 | Right door sill cover | MSP | 1 | 51778075470 | Shop at ECS Tuning | |||||
| 03 | Mount for rocker panel, front left | 1 | 51777461383 | Shop at ECS Tuning | ||||||
| 03 | Mount for rocker panel, front right | 1 | 51777461384 | Shop at ECS Tuning | ||||||
| 04 | Protect.film side sill trim panel left | 1 | 51775A020A1 | Shop at ECS Tuning | ||||||
| 04 | Protect.film side sill trim panel right | 1 | 51775A020A2 | Shop at ECS Tuning | ||||||
| For vehicles with BMW LA wheel Y-spoke 553M OG and BMW LA wheel Y-spoke 553M OG/emer.op. and BMW LA double spoke 552M JB |
S1N4A=Yes S1N5A=Yes S1RRA=Yes |
|||||||||
| 05 | Flaired wheel arch, rear left | 1 | 51127933581 | Shop at ECS Tuning | ||||||
| 05 | Flaired wheel arch, rear right | 1 | 51127933582 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Country version, India and Country-specific equipment Russia 10323 |
L8AAA=Yes L8LAA=Yes S8LRA=Yes |
|||||||||
| 05 | Flaired wheel arch, rear left | 1 | 51127933583 | Shop at ECS Tuning | ||||||
| 05 | Wheel arch extension rear left | 1 | 51125A5A433 | Shop at ECS Tuning | ||||||
| 05 | Flaired wheel arch, rear right | 1 | 51127933584 | Shop at ECS Tuning | ||||||
| 05 | Wheel arch extension rear right | 1 | 51125A5A434 | Shop at ECS Tuning | ||||||
| 06 | Expanding rivet | 14 | 07130702966 | $0.48 | Shop at ECS Tuning | |||||
| 07 | Clip, wet area | 16 | 51127490761 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt | TS5X17 SW8 D=22 | 2 | 07149126886 | Shop at ECS Tuning | |||||
| 09 | Clip retainer | 2 | 51777461385 | Shop at ECS Tuning | ||||||
| 10 | Plastic capnut with washer | D=22MM | 8 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 11 | C-clip for plastic nut | TS5 | 2 | 07147311312 | Shop at ECS Tuning | |||||
