Cargo area floor covering, PHEV for BMW 3 Series G20 Sedan LCI 330e (2024)

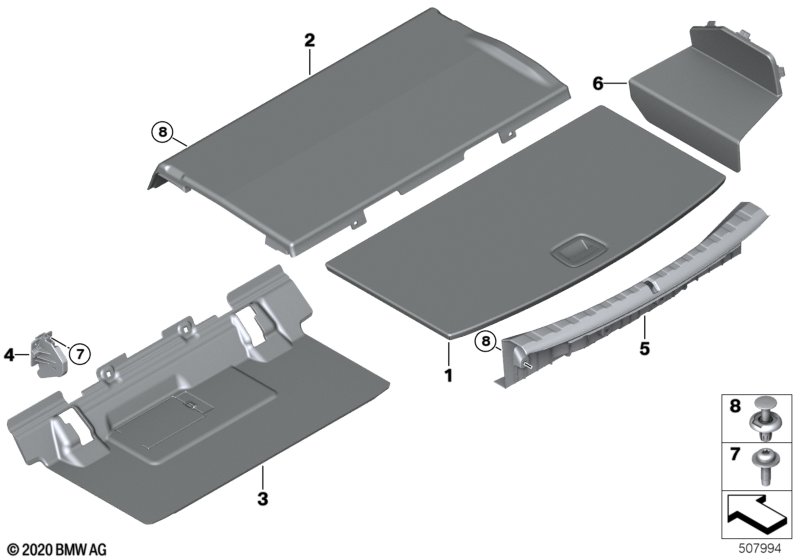

This Cargo area floor covering, PHEV technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor carpet, luggage compartment | PHEV | 1 | 51477450065 | NoS | Shop at ECS Tuning | ||||
| 02 | Trim panel tank | PHEV | 1 | 51477450066 | NoS | Shop at ECS Tuning | ||||
| 03 | Floor carpet, luggage compartment | PHEV | 1 | 51477450064 | NoS | Shop at ECS Tuning | ||||
| 04 | Locating bracket, left | PHEV | 1 | 51477450061 | NoS | Shop at ECS Tuning | ||||
| 04 | Locating bracket, right | PHEV | 1 | 51477450062 | NoS | Shop at ECS Tuning | ||||
| 05 | Loading sill cover | 1 | 51477450063 | NoS | Shop at ECS Tuning | |||||
| 06 | Battery cover | PHEV | 1 | 51477451109 | NoS | Shop at ECS Tuning | ||||
| 07 | Screw | M6 | 6 | 51719908610 | Shop at ECS Tuning | |||||
| 08 | Expanding rivet | 11 | 07147401727 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan LCI 330e Cargo area floor covering, PHEV?
- This technical diagram illustrates the Cargo area floor covering, PHEV within the Vehicle trim group for the 3 Series G20 Sedan LCI 330e produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Floor carpet, luggage compartment (Part #51477450065).
- Which models use the hardware listed in this Cargo area floor covering, PHEV?
- The hardware and components featured in the Cargo area floor covering, PHEV are specific to the 3 Series G20 Sedan LCI 330e produced during 2024. These technical specifications ensure that parts like the Floor carpet, luggage compartment (51477450065) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cargo area floor covering, PHEV assembly?
- Each item in the Cargo area floor covering, PHEV corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan LCI 330e, you can identify the Floor carpet, luggage compartment by locating its position on the schematic, which then links to the official BMW part number 51477450065 for the Vehicle trim section.
