Mounting parts f M outside mirror for BMW 6 Series E64 M6 (2010)

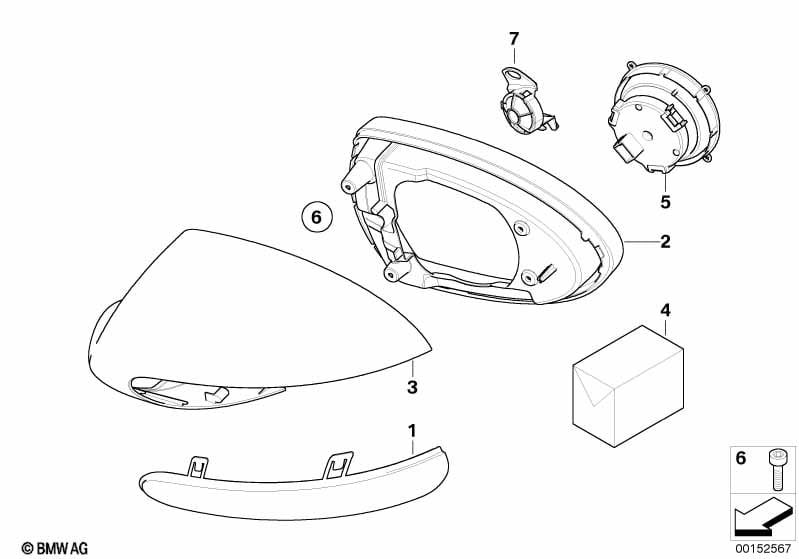

This Mounting parts f M outside mirror technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Including leading lamp!! | ||||||||||
| 01 | Covering cap, bright-black left | M | 1 | 51167906349 | $167.21 | Shop at ECS Tuning | ||||
| 01 | Covering cap, bright-black right | M | 1 | 51167906350 | $167.21 | Shop at ECS Tuning | ||||
| 02 | Supporting ring, primed left | M | 1 | 09/2008 | 51167903819 | Shop at ECS Tuning | ||||
| 02 | Supporting ring, primed right | M | 1 | 09/2008 | 51167903820 | $37.63 | ENDED | Shop at ECS Tuning | ||
| 03 | Housing, primed left | 1 | 09/2008 | 51167903821 | $80.67 | Shop at ECS Tuning | ||||
| 03 | Housing, primed right | 1 | 09/2008 | 51167903822 | $80.67 | Shop at ECS Tuning | ||||
| 04 | Mounting parts set | M | 2 | 51167906351 | $12.47 | ENDED | Shop at ECS Tuning | |||
| 05 | Power, outside mirror, LIN bus | 2 | 09/2005 | 67137191398 | $163.22 | Shop at ECS Tuning | ||||
| 06 | Fillister-head screw | 6 | 07147196375 | $0.64 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
