Decor trims, centre console for BMW 3 Series G20 Sedan LCI 320i (2025)

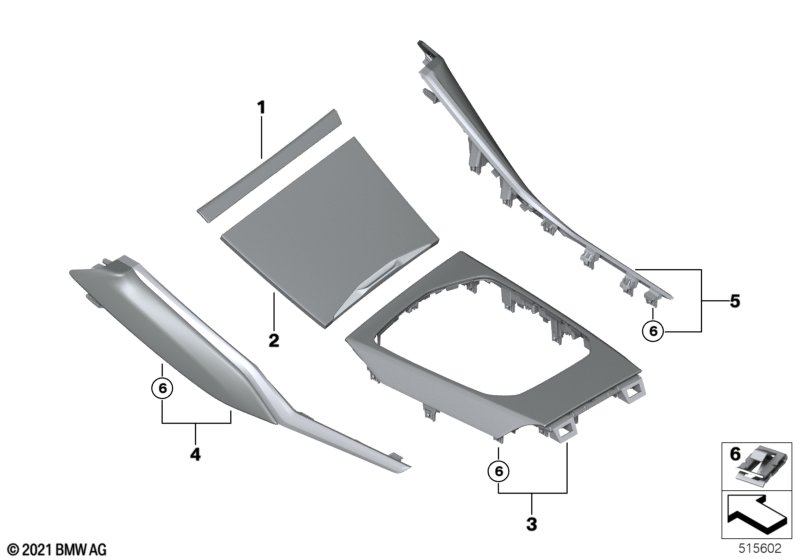

This Decor trims, centre console technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with INTERIOR TRIM DARK GRAPHITE MATTE |
S4P6A=Yes |
|||||||||
| 01 | Trim center stack Dark Graphite matte | 1 | 51165A0E703 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior trim, quartz-silver matt |
S4GNA=Yes |
|||||||||
| 01 | Trim, center stack, quartz silver matte | 1 | 51166806828 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior moldings Carbon Fibre |
S4MCA=Yes |
|||||||||
| 01 | Trim, center stack, black high-gloss | 1 | 07/2024 | 51165A0EF81 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior trim, aluminum mesh effect |
S4KLA=Yes |
|||||||||
| 01 | Trim, center stack, aluminum mesh effect | 1 | 51165A0F033 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Deco. strip wood Ash gray-blue porous |
S4H1A=Yes |
|||||||||
| 01 | Trim, center stack, fine wood, ash, grey | 1 | 51165A683E5 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Deco. strip wood Fineline light porous |
S4H0A=Yes |
|||||||||
| 01 | Trim, center stack, fine wood, Fineline | 1 | 51165A683E3 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Deco. strip aluminum smooth and polish and INT. TRIM AL. RHOMBICLE ANTHR. |
S43WA=Yes S4LNA=Yes |
|||||||||
| 01 | Center stack trim black matte | 1 | 07/2024 | 51165A21889 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Deco. strip aluminum smooth and polish |
S43WA=Yes |
|||||||||
| 02 | Cover, cup holder, alu, polished | 1 | 51165A684A0 | NoS | Shop at ECS Tuning | |||||
| For vehicles with INTERIOR TRIM DARK GRAPHITE MATTE |
S4P6A=Yes |
|||||||||
| 02 | Trim beverage holder Dark Graphite matte | 1 | 51165A154A2 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior strips, piano lacquer, black |
S4MLA=Yes |
|||||||||
| 02 | Cup holder trim, Piano Finish black | 1 | 51168093577 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fine wood trim ash grain, gy.br.hi.gl. |
S4KCA=Yes |
|||||||||
| 02 | Cup holder trim, ash, gray-brown | 1 | 51165A0EFD3 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior trim finishers black high-gloss |
S4ATA=Yes |
|||||||||
| 02 | Cup holder trim, black high-gloss | 1 | 51165A0EF77 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior trim, quartz-silver matt |
S4GNA=Yes |
|||||||||
| 02 | Cup holder trim, quartz silver matte | 1 | 51166806783 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fine-wood trim Oak grain, open-cell |
S4KAA=Yes |
|||||||||
| 02 | Cup holder trim, ash grain | 1 | 51165A0EFB3 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior moldings Carbon Fibre |
S4MCA=Yes |
|||||||||
| 02 | Trim cupholder carbon high-gloss | 1 | 51168094583 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior trim, aluminum mesh effect |
S4KLA=Yes |
|||||||||
| 02 | Cup holder trim, alu mesh effect | 1 | 51165A0F029 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Deco. strip wood Ash gray-blue porous |
S4H1A=Yes |
|||||||||
| 02 | Trim, cup holder, fine wood, ash | 1 | 51165A68490 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Deco. strip wood Fineline light porous |
S4H0A=Yes |
|||||||||
| 02 | Trim, cup holder, fine wood, Fineline | 1 | 51165A68487 | NoS | Shop at ECS Tuning | |||||
| For vehicles with INT. TRIM AL. RHOMBICLE ANTHR. and INT. TRIM AL. RHOMBICLE ANTHR. |
S4KQA=Yes S4LNA=Yes |
|||||||||
| 02 | Trim cup holder Aluminum Rhombicle | 1 | 51165A19792 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Deco. strip aluminum smooth and polish |
S43WA=Yes |
|||||||||
| 03 | Trim, center console, alu, brushed | 1 | 51165A684F2 | NoS | Shop at ECS Tuning | |||||
| For vehicles with INTERIOR TRIM DARK GRAPHITE MATTE |
S4P6A=Yes |
|||||||||
| 03 | Center console trim Dark Graphite matte | 1 | 51165A15498 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior strips, piano lacquer, black |
S4MLA=Yes |
|||||||||
| 03 | Cover, centr console, piano lacquer, bl. | 1 | 51168093585 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fine wood trim ash grain, gy.br.hi.gl. |
S4KCA=Yes |
|||||||||
| 03 | Center console trim, ash gray-brown | 1 | 51165A0EFD8 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior trim finishers black high-gloss |
S4ATA=Yes |
|||||||||
| 03 | Center console trim black high gloss | 1 | 51165A0EF79 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior trim, quartz-silver matt |
S4GNA=Yes |
|||||||||
| 03 | Center console trim, quartz silver matte | 1 | 51166806780 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fine-wood trim Oak grain, open-cell |
S4KAA=Yes |
|||||||||
| 03 | Center console trim, ash grain | 1 | 51165A0EFB5 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior moldings Carbon Fibre |
S4MCA=Yes |
|||||||||
| 03 | Center console trim carbon high-gloss | 1 | 51168094591 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior trim, aluminum mesh effect |
S4KLA=Yes |
|||||||||
| 03 | Center console trim, alu mesh effect | 1 | 51165A0F031 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Deco. strip wood Ash gray-blue porous |
S4H1A=Yes |
|||||||||
| 03 | Center console trim, fine wood, ash | 1 | 51165A684F0 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Deco. strip wood Fineline light porous |
S4H0A=Yes |
|||||||||
| 03 | Center console trim, fine wood, Fineline | 1 | 51165A684E8 | NoS | Shop at ECS Tuning | |||||
| For vehicles with INT. TRIM AL. RHOMBICLE ANTHR. and INT. TRIM AL. RHOMBICLE ANTHR. |
S4KQA=Yes S4LNA=Yes |
|||||||||
| 03 | Cover panel c.console Al Rhombicle | 1 | 51165A19729 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior trim finishers black high-gloss and Fine-wood trim Oak grain, open-cell and Fine wood trim ash grain, gy.br.hi.gl. and Interior trim, aluminum mesh effect and INT. TRIM AL. RHOMBICLE ANTHR. and Interior moldings Carbon Fibre and Interior strips, piano lacquer, black |
S4ATA=No S4KAA=No S4KCA=No S4KLA=No S4LNA=No S4MCA=No S4MLA=No |
|||||||||
| 04 | Ce.cons.trim, driver, quartz silv.acc. | SCHWARZ | 1 | 51166994074 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers black high-gloss and Fine-wood trim Oak grain, open-cell and Fine wood trim ash grain, gy.br.hi.gl. and Interior trim, aluminum mesh effect and INT. TRIM AL. RHOMBICLE ANTHR. and Interior moldings Carbon Fibre and Interior strips, piano lacquer, black |
S4ATA=Yes S4KAA=Yes S4KCA=Yes S4KLA=Yes S4LNA=Yes S4MCA=Yes S4MLA=Yes |
|||||||||
| 04 | Center console trim, driver, accent chr. | SCHWARZ | 1 | 51166994076 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers black high-gloss and Fine-wood trim Oak grain, open-cell and Fine wood trim ash grain, gy.br.hi.gl. and Interior trim, aluminum mesh effect and INT. TRIM AL. RHOMBICLE ANTHR. and Interior moldings Carbon Fibre and Interior strips, piano lacquer, black |
S4ATA=No S4KAA=No S4KCA=No S4KLA=No S4LNA=No S4MCA=No S4MLA=No |
|||||||||
| 05 | Ce.cons.trim, fr.pass.quartz silv.accent | SCHWARZ | 1 | 51166994075 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers black high-gloss and Fine-wood trim Oak grain, open-cell and Fine wood trim ash grain, gy.br.hi.gl. and Interior trim, aluminum mesh effect and INT. TRIM AL. RHOMBICLE ANTHR. and Interior moldings Carbon Fibre and Interior strips, piano lacquer, black |
S4ATA=Yes S4KAA=Yes S4KCA=Yes S4KLA=Yes S4LNA=Yes S4MCA=Yes S4MLA=Yes |
|||||||||
| 05 | Ce.cons.trim, fr.passenger, chr.accent | SCHWARZ | 1 | 51166994077 | NoS | Shop at ECS Tuning | ||||
| 06 | Clamp | 12 | 07146995183 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
