Decor trims, centre console for BMW 2 Series G87 M2 M2 (2025)

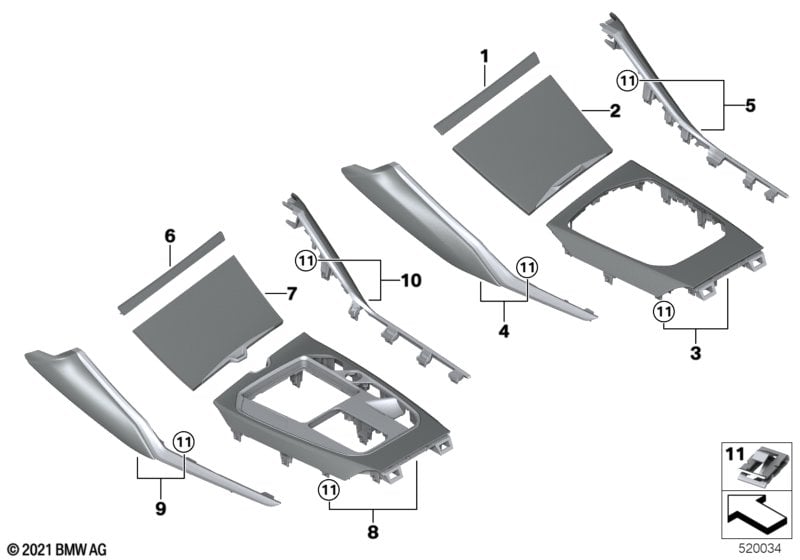

This Decor trims, centre console technical drawing provides a detailed breakdown of the assembly for the 2 Series G87 M2 M2. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with INTERIOR TRIM DARK GRAPHITE MATTE |
S4P6A=Yes |
|||||||||
| 01 | Trim center stack Dark Graphite matte | 1 | 51165A0E703 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and INT. TRIM AL. RHOMBICLE ANTHR. |
S2MAA=No S4LNA=No |
|||||||||
| 01 | Trim, center stack, black high-gloss | 1 | 51165A0EF81 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and Deco. strip aluminum smooth and polish and INT. TRIM AL. RHOMBICLE ANTHR. |
S2MAA=No S43WA=Yes S4LNA=Yes |
|||||||||
| 01 | Center stack trim black matte | 1 | 51165A21889 | NoS | Shop at ECS Tuning | |||||
| For vehicles with INTERIOR TRIM DARK GRAPHITE MATTE |
S4P6A=Yes |
|||||||||
| 02 | Trim beverage holder Dark Graphite matte | 1 | 51165A154A2 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and INT. TRIM AL. RHOMBICLE ANTHR. |
S2MAA=No S4LNA=Yes |
|||||||||
| 02 | Trim cup holder Aluminum Rhombicle | 1 | 51165A19792 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and Interior moldings Carbon Fibre |
S2MAA=No S4MCA=Yes |
|||||||||
| 02 | Trim cupholder carbon high-gloss | 1 | 51168094583 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and Deco. strip aluminum smooth and polish |
S2MAA=No S43WA=Yes |
|||||||||
| 02 | Cover, cup holder, alu, polished | 1 | 51165A684A0 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and INT. TRIM AL. RHOMBICLE ANTHR. and Interior moldings Carbon Fibre |
S2MAA=No S4LNA=No S4MCA=No |
|||||||||
| 02 | Cup holder trim, black high-gloss | 1 | 51165A0EF77 | NoS | Shop at ECS Tuning | |||||
| For vehicles with INTERIOR TRIM DARK GRAPHITE MATTE |
S4P6A=Yes |
|||||||||
| 03 | Center console trim Dark Graphite matte | 1 | 51165A15498 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior moldings Carbon Fibre |
S4MCA=No |
|||||||||
| 03 | Center console trim aluminum Tetragon | 1 | 51165A0F074 | NoS | Shop at ECS Tuning | |||||
| For vehicles with INT. TRIM AL. RHOMBICLE ANTHR. |
S4LNA=Yes |
|||||||||
| 03 | Cover panel c.console Al Rhombicle | 1 | 51165A19729 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and Interior moldings Carbon Fibre |
S2MAA=No S4MCA=Yes |
|||||||||
| 03 | Center console trim carbon high-gloss | 1 | 51168094591 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and Deco. strip aluminum smooth and polish and Interior moldings Carbon Fibre |
S2MAA=No S43WA=Yes S4MCA=No |
|||||||||
| 03 | Trim, center console, alu, brushed | 1 | 51165A684F2 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and INT. TRIM AL. RHOMBICLE ANTHR. and Interior moldings Carbon Fibre |
S2MAA=No S4LNA=No S4MCA=No |
|||||||||
| 03 | Center console trim black high gloss | 1 | 51165A0EF79 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission |
S2MAA=No |
|||||||||
| 04 | Center console trim, driver, accent chr. | SCHWARZ | 1 | 51166994076 | NoS | Shop at ECS Tuning | ||||
| 05 | Ce.cons.trim, fr.passenger, chr.accent | SCHWARZ | 1 | 51166994077 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Manual Transmission and INT. TRIM AL. RHOMBICLE ANTHR. |
S2MAA=Yes S4LNA=Yes |
|||||||||
| 06 | Center stack trim black matte | 1 | 51165A21891 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and INT. TRIM AL. RHOMBICLE ANTHR. |
S2MAA=Yes S4LNA=No |
|||||||||
| 06 | Trim, center stack, black high-gloss | 1 | 51165A0EF86 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and Deco. strip aluminum smooth and polish and INT. TRIM AL. RHOMBICLE ANTHR. and Interior moldings Carbon Fibre |
S2MAA=Yes S43WA=No S4LNA=No S4MCA=No |
|||||||||
| 06 | Trim center stack Dark Graphite matte | 1 | 51167908319 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and INT. TRIM AL. RHOMBICLE ANTHR. |
S2MAA=Yes S4LNA=Yes |
|||||||||
| 07 | Trim cup holder Aluminum Rhombicle | 1 | 51165A3B2B9 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and Interior moldings Carbon Fibre |
S2MAA=Yes S4MCA=Yes |
|||||||||
| 07 | Trim cupholder carbon high-gloss | 1 | 51168094581 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and Interior moldings Carbon Fibre |
S2MAA=Yes S4MCA=No |
|||||||||
| 07 | Cup holder trim, black high-gloss | 1 | 51165A0EF78 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and Deco. strip aluminum smooth and polish |
S2MAA=Yes S43WA=Yes |
|||||||||
| 07 | Cover, cup holder, alu, polished | 1 | 51165A68470 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and Deco. strip aluminum smooth and polish and INT. TRIM AL. RHOMBICLE ANTHR. and Interior moldings Carbon Fibre |
S2MAA=Yes S43WA=No S4LNA=No S4MCA=No |
|||||||||
| 07 | Trim, cup holder, Dark Graphite | 1 | 51165A68402 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and INT. TRIM AL. RHOMBICLE ANTHR. |
S2MAA=Yes S4LNA=Yes |
|||||||||
| 08 | Cover panel c.console Al Rhombicle | 1 | 51165A3B2B5 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and Interior moldings Carbon Fibre |
S2MAA=Yes S4MCA=Yes |
|||||||||
| 08 | Center console trim carbon high-gloss | 1 | 51168094589 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and Deco. strip aluminum smooth and polish and Interior moldings Carbon Fibre |
S2MAA=Yes S43WA=Yes S4MCA=No |
|||||||||
| 08 | Trim, center console, alu, brushed | 1 | 51165A684E4 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and INT. TRIM AL. RHOMBICLE ANTHR. and Interior moldings Carbon Fibre |
S2MAA=Yes S4LNA=No S4MCA=No |
|||||||||
| 08 | Center console trim black high gloss | 1 | 51165A0EF80 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and Deco. strip aluminum smooth and polish and INT. TRIM AL. RHOMBICLE ANTHR. and Interior moldings Carbon Fibre |
S2MAA=Yes S43WA=No S4LNA=No S4MCA=No |
|||||||||
| 08 | Center console trim Dark Graphite matte | 1 | 51165A684D4 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission |
S2MAA=Yes |
|||||||||
| 09 | Center console trim, driver, accent chr. | SCHWARZ | 1 | 51166994749 | NoS | Shop at ECS Tuning | ||||
| 10 | Ce.cons.trim, fr.passenger, chr.accent | SCHWARZ | 1 | 51166994750 | NoS | Shop at ECS Tuning | ||||
| 11 | Clamp | 23 | 07146995183 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
