Decor trims, centre console for BMW 3 Series G20 Sedan 330d (2020)

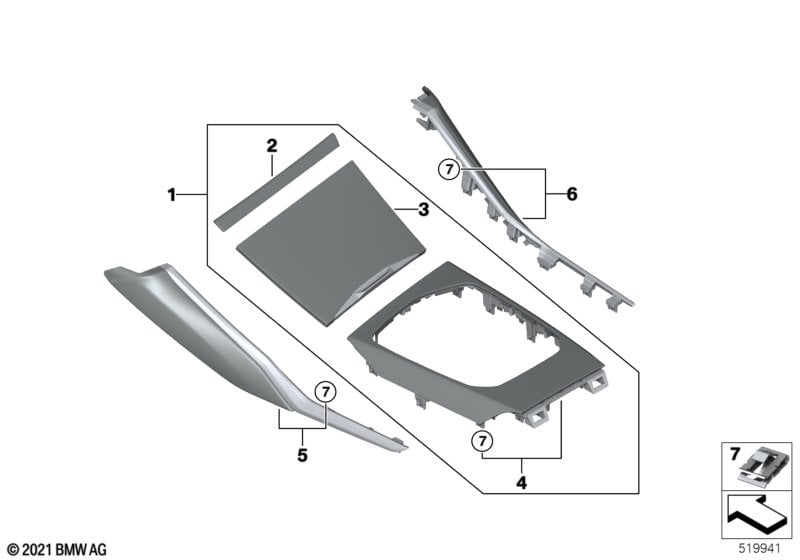

This Decor trims, centre console technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission or Sport automatic transmission or Automatic transmission w/ shift paddles |
S205A=Yes S2TBA=Yes S2TEA=Yes |
||||||||
| For vehicles with Fine wood trim maple, open-pored |
S4KBA=Yes |
|||||||||
| 01 | Set ce.console trim, maple, open-pored | 1 | 51169496490 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fine wood trim ash grain, gy.br.hi.gl. |
S4KCA=Yes |
|||||||||
| 02 | Trim, center stack, ash gray brown | 1 | 07/2021 | 51165A0F093 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior trim, aluminum mesh effect |
S4KLA=Yes |
|||||||||
| 02 | Trim, center stack, aluminum mesh effect | 1 | 51165A0F068 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior trim, quartz-silver matt |
S4GNA=Yes |
|||||||||
| 02 | Trim, center stack, quartz silver matte | 1 | 51166806827 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior trim, aluminum tetragon |
S4KKA=Yes |
|||||||||
| 02 | Center stack trim, aluminum tetragon | 1 | 07/2021 | 51165A0F084 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior strips, piano lacquer, black |
S4MLA=Yes |
|||||||||
| 02 | Center stack trim, Piano Finish black | 1 | 07/2021 | 51168093582 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fine-wood trim Oak grain, open-cell |
S4KAA=Yes |
|||||||||
| 02 | Trim, center stack, oak grain | 1 | 07/2021 | 51165A0EF83 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers black high-gloss and Interior moldings Carbon Fibre |
S4ATA=Yes S4MCA=Yes |
|||||||||
| 02 | Trim, center stack, black high-gloss | 1 | 07/2021 | 51165A0EF98 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fine wood trim ash grain, gy.br.hi.gl. |
S4KCA=Yes |
|||||||||
| 03 | Cup holder trim, ash, gray-brown | 1 | 51165A0F034 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior trim, aluminum mesh effect |
S4KLA=Yes |
|||||||||
| 03 | Cup holder trim, alu mesh effect | 1 | 51459624732 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior trim, quartz-silver matt |
S4GNA=Yes |
|||||||||
| 03 | Cup holder trim, quartz silver matte | 1 | 51166806779 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior trim, aluminum tetragon |
S4KKA=Yes |
|||||||||
| 03 | Center console cup holder, alu.tetragon | 1 | 51459624738 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior trim finishers black high-gloss |
S4ATA=Yes |
|||||||||
| 03 | Cup holder trim, black high-gloss | 1 | 51165A0EF89 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior strips, piano lacquer, black |
S4MLA=Yes |
|||||||||
| 03 | Cup holder trim, Piano Finish black | 1 | 51168093578 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fine-wood trim Oak grain, open-cell |
S4KAA=Yes |
|||||||||
| 03 | Cup holder trim, ash grain | 1 | 51166807285 | NoS | Shop at ECS Tuning | |||||
| 03 | Cup holder trim, ash grain | 1 | 51165A0EF70 | NoS | Shop at ECS Tuning | |||||
| For vehicles with INT. TRIM AL. RHOMBICLE ANTHR. |
S4LNA=Yes |
|||||||||
| 03 | Trim cup holder Aluminum Rhombicle | 1 | 51165A19793 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior moldings Carbon Fibre |
S4MCA=Yes |
|||||||||
| 03 | Trim cupholder carbon high-gloss | 1 | 51168094584 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fine wood trim ash grain, gy.br.hi.gl. |
S4KCA=Yes |
|||||||||
| 04 | Center console trim, ash gray-brown | 1 | 51165A0F088 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior trim, aluminum mesh effect |
S4KLA=Yes |
|||||||||
| 04 | Center console trim, alu mesh effect | 1 | 51165A0F066 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior trim, quartz-silver matt |
S4GNA=Yes |
|||||||||
| 04 | Center console trim, quartz silver matte | 1 | 51166806781 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior trim, aluminum tetragon |
S4KKA=Yes |
|||||||||
| 04 | Center console trim aluminum Tetragon | 1 | 51459624740 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior trim finishers black high-gloss |
S4ATA=Yes |
|||||||||
| 04 | Center console trim black high gloss | 1 | 51165A0EF91 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior strips, piano lacquer, black |
S4MLA=Yes |
|||||||||
| 04 | Cover, centr console, piano lacquer, bl. | 1 | 51168093586 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fine-wood trim Oak grain, open-cell |
S4KAA=Yes |
|||||||||
| 04 | Center console trim, ash grain | 1 | 51165A0EF76 | Shop at ECS Tuning | ||||||
| For vehicles with INT. TRIM AL. RHOMBICLE ANTHR. |
S4LNA=Yes |
|||||||||
| 04 | Cover panel c.console Al Rhombicle | 1 | 51165A19794 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior moldings Carbon Fibre |
S4MCA=Yes |
|||||||||
| 04 | Center console trim carbon high-gloss | 1 | 51168094592 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior trim finishers black high-gloss and Fine-wood trim Oak grain, open-cell and Fine wood trim maple, open-pored and Fine wood trim ash grain, gy.br.hi.gl. and Interior trim, aluminum tetragon and Interior trim, aluminum mesh effect and Interior strips, piano lacquer, black |
S4ATA=No S4KAA=No S4KBA=No S4KCA=No S4KKA=No S4KLA=No S4MLA=No |
|||||||||
| 05 | Ce.cons.trim, fr.pass.quartz silv.accent | SCHWARZ | 1 | 51166994715 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers black high-gloss and Fine-wood trim Oak grain, open-cell and Fine wood trim maple, open-pored and Fine wood trim ash grain, gy.br.hi.gl. and Interior trim, aluminum tetragon and Interior trim, aluminum mesh effect and Interior strips, piano lacquer, black |
S4ATA=Yes S4KAA=Yes S4KBA=Yes S4KCA=Yes S4KKA=Yes S4KLA=Yes S4MLA=Yes |
|||||||||
| 05 | Ce.cons.trim, fr.passenger, chr.accent | SCHWARZ | 1 | 51166994717 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers black high-gloss and Fine-wood trim Oak grain, open-cell and Fine wood trim maple, open-pored and Fine wood trim ash grain, gy.br.hi.gl. and Interior trim, aluminum tetragon and Interior trim, aluminum mesh effect and Interior strips, piano lacquer, black and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. |
S4ATA=Yes S4KAA=Yes S4KBA=Yes S4KCA=Yes S4KKA=Yes S4KLA=Yes S4MLA=Yes KHFR=Yes KHFS=Yes |
|||||||||
| 05 | Ce.cons.trim, fr.passenger, chr.accent | CANBERRABEIGE | 1 | 51166995846 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers black high-gloss and Fine-wood trim Oak grain, open-cell and Fine wood trim maple, open-pored and Fine wood trim ash grain, gy.br.hi.gl. and Interior trim, aluminum tetragon and Interior trim, aluminum mesh effect and Interior strips, piano lacquer, black and Sensatec/canberra-beige or Sensatec/canberra-beige or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Leath.Vernasca/Canberra beige de.stitch. or Leath.Vernasca/Canberra beige de.stitch. |
S4ATA=No S4KAA=No S4KBA=No S4KCA=No S4KKA=No S4KLA=No S4MLA=No KCCY=Yes KCFY=Yes KHFR=Yes KHFS=Yes MAFO=Yes MAFX=Yes |
|||||||||
| 05 | Ce.cons.trim, fr.pass.quartz silv.accent | CANBERRABEIGE | 1 | 51166995845 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M Sports package and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. |
P337A=No KHFR=Yes KHFS=Yes |
|||||||||
| 06 | Center console trim, driver, accent chr. | CANBERRABEIGE | 1 | 51166995847 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers black high-gloss and Fine-wood trim Oak grain, open-cell and Fine wood trim maple, open-pored and Fine wood trim ash grain, gy.br.hi.gl. and Interior trim, aluminum tetragon and Interior trim, aluminum mesh effect and Interior strips, piano lacquer, black |
S4ATA=No S4KAA=No S4KBA=No S4KCA=No S4KKA=No S4KLA=No S4MLA=No |
|||||||||
| 06 | Ce.cons.trim, driver, quartz silv.acc. | SCHWARZ | 1 | 51166994716 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers black high-gloss and Fine-wood trim Oak grain, open-cell and Fine wood trim maple, open-pored and Fine wood trim ash grain, gy.br.hi.gl. and Interior trim, aluminum tetragon and Interior trim, aluminum mesh effect and Interior strips, piano lacquer, black |
S4ATA=Yes S4KAA=Yes S4KBA=Yes S4KCA=Yes S4KKA=Yes S4KLA=Yes S4MLA=Yes |
|||||||||
| 06 | Center console trim, driver, accent chr. | SCHWARZ | 1 | 51166994718 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers black high-gloss and Fine-wood trim Oak grain, open-cell and Fine wood trim maple, open-pored and Fine wood trim ash grain, gy.br.hi.gl. and Interior trim, aluminum tetragon and Interior trim, aluminum mesh effect and Interior strips, piano lacquer, black and Sensatec/canberra-beige or Sensatec/canberra-beige or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Leath.Vernasca/Canberra beige de.stitch. or Leath.Vernasca/Canberra beige de.stitch. |
S4ATA=No S4KAA=No S4KBA=No S4KCA=No S4KKA=No S4KLA=No S4MLA=No KCCY=Yes KCFY=Yes KHFR=Yes KHFS=Yes MAFO=Yes MAFX=Yes |
|||||||||
| 06 | Ce.cons.trim, driver, quartz silv.acc. | CANBERRABEIGE | 1 | 51166995844 | NoS | Shop at ECS Tuning | ||||
| 07 | Clamp | 12 | 07146995183 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
