Carrier, front for BMW 7 Series G70 M760eX (2025)

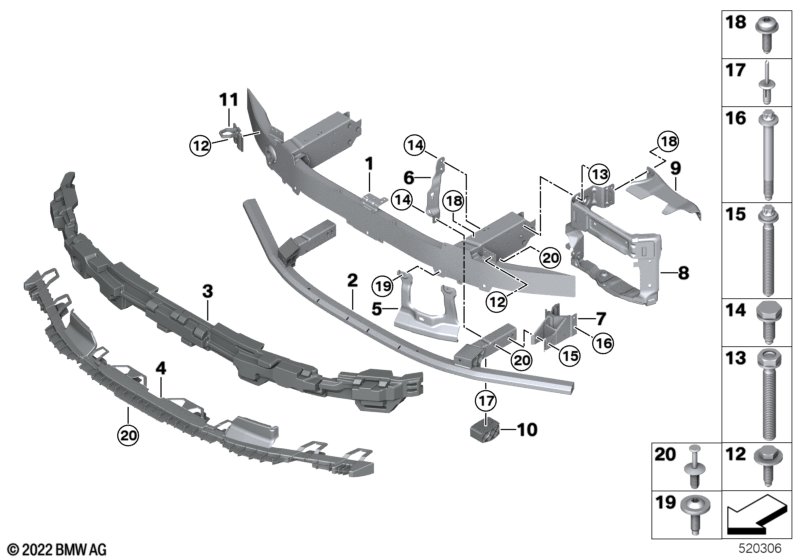

This Carrier, front technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 M760eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version Korea and National version japan and National version Australia and National version China and Extra package, EU-specific and Country control for Switzerland 00206 and Country control for Scandanavia 09090 |
L802A=No L807A=No L810A=No L8AAA=No S230A=No S8L2A=No S8LZA=No |
|||||||||
| 01 | Mount, bumper, front, top | 1 | 51119463978 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version japan and National version Australia and National version China and Extra package, EU-specific and Country control for Switzerland 00206 and Country control for Scandanavia 09090 |
L802A=Yes L807A=Yes L810A=Yes L8AAA=Yes S230A=Yes S8L2A=Yes S8LZA=Yes |
|||||||||
| 01 | Mount, bumper, front, top | 1 | 51119852844 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version japan and National version Australia and National version China and Extra package, EU-specific and Country control for Switzerland 00206 and Country control for Scandanavia 09090 |
L802A=No L807A=No L810A=No L8AAA=No S230A=No S8L2A=No S8LZA=No |
|||||||||
| 02 | Mount, bumper, front, lower | 1 | 51119463991 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version japan and National version Australia and National version China and Extra package, EU-specific and Country control for Switzerland 00206 and Country control for Scandanavia 09090 |
L802A=Yes L807A=Yes L810A=Yes L8AAA=Yes S230A=Yes S8L2A=Yes S8LZA=Yes |
|||||||||
| 02 | Mount, bumper, front, lower | 1 | 51119852845 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version japan and National version Australia and National version China and Extra package, EU-specific and Country control for Switzerland 00206 and Country control for Scandanavia 09090 |
L802A=No L807A=No L810A=No L8AAA=No S230A=No S8L2A=No S8LZA=No |
|||||||||
| 03 | Shock absorber front | ECE | 1 | 51119463965 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and National version Australia and National version China and Extra package, EU-specific and Country control for Switzerland 00206 and Country control for Scandanavia 09090 |
L802A=Yes L807A=Yes L810A=Yes L8AAA=Yes S230A=Yes S8L2A=Yes S8LZA=Yes |
|||||||||
| 03 | Shock absorber front | 1 | 51115A015D5 | Shop at ECS Tuning | ||||||
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=No |
|||||||||
| 04 | Impact absorber, lower front | 1 | 51119463975 | Shop at ECS Tuning | ||||||
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
|||||||||
| 04 | Impact absorber, lower front | M | 1 | 51118081740 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and National version Australia and National version China and Extra package, EU-specific and Country control for Switzerland 00206 and Country control for Scandanavia 09090 |
L802A=Yes L807A=Yes L810A=Yes L8AAA=Yes S230A=Yes S8L2A=Yes S8LZA=Yes |
|||||||||
| 05 | Bracket front left | 1 | 51119852841 | Shop at ECS Tuning | ||||||
| 05 | Bracket front right | 1 | 51119852842 | Shop at ECS Tuning | ||||||
| 06 | Vertical connection, left | 1 | 51119463971 | Shop at ECS Tuning | ||||||
| 06 | Vertical connection, right | 1 | 51119463972 | Shop at ECS Tuning | ||||||
| 07 | Adaptor left | 1 | 51119463973 | Shop at ECS Tuning | ||||||
| 07 | Adaptor right | 1 | 51119463974 | Shop at ECS Tuning | ||||||
| 10 | Damper for curb descent | 1 | 51119463992 | Shop at ECS Tuning | ||||||
| 11 | Support, front end | 2 | 51119464061 | Shop at ECS Tuning | ||||||
| 12 | Hex bolt | M6X20-8.8 | 2 | 07119907898 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 13 | Hex bolt | M12X1,5 10.9ZNS | 6 | 07147422947 | Shop at ECS Tuning | |||||
| 14 | Combination Allen bolt | M8X23-PC-10.9 Z | 6 | 07148499876 | Shop at ECS Tuning | |||||
| 15 | Star-socket screw | M8X75 | 4 | 07119909867 | Shop at ECS Tuning | |||||
| 16 | Star-socket screw | M10X100 | 4 | 07119907901 | Shop at ECS Tuning | |||||
| 17 | Blind rivet | 2 | 07147234212 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version japan and National version Australia and National version China and Extra package, EU-specific and Country control for Switzerland 00206 and Country control for Scandanavia 09090 |
L802A=Yes L807A=Yes L810A=Yes L8AAA=Yes S230A=Yes S8L2A=Yes S8LZA=Yes |
|||||||||
| 19 | Oval-head screw with washer | ISA M6X21 | 6 | 07147263759 | Shop at ECS Tuning | |||||
| 20 | Expanding rivet | D = 6MM | 4 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
