M Trim, front for BMW 7 Series G70 740i

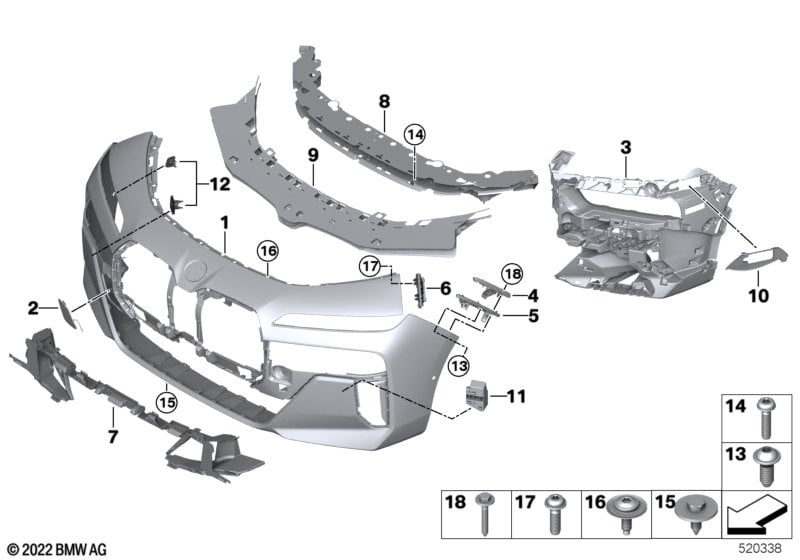

This M Trim, front technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
||||||||
| 01 | Trim cover, bumper, primed, front | M US | 1 | 51115A52CF3 | Shop at ECS Tuning | |||||
| 02 | Cover for towing eye Black | M | 1 | 51118081535 | Shop at ECS Tuning | |||||
| 03 | Support left | M US | 1 | 51118081575 | Shop at ECS Tuning | |||||
| 03 | Support right | M US | 1 | 51118081576 | Shop at ECS Tuning | |||||
| 04 | Bumper guide, left upper | 1 | 51119464047 | Shop at ECS Tuning | ||||||
| 04 | Bumper guide, right upper | 1 | 51119464048 | Shop at ECS Tuning | ||||||
| 05 | Guide bumper, left lower | 1 | 51119464049 | Shop at ECS Tuning | ||||||
| 05 | Bumper guide right lower | 1 | 51119464050 | Shop at ECS Tuning | ||||||
| 06 | Bumper guide, left upper | INSIDE | 1 | 51119883445 | Shop at ECS Tuning | |||||
| 06 | Bumper guide, right upper | INSIDE | 1 | 51119883446 | Shop at ECS Tuning | |||||
| 07 | Air duct, center | M | 1 | 51115A16D75 | Shop at ECS Tuning | |||||
| 08 | Bracket center | 1 | 51119883453 | Shop at ECS Tuning | ||||||
| 09 | Centre inlay front bumper | 1 | 51119883454 | Shop at ECS Tuning | ||||||
| 10 | Absorber left | SRR | 1 | 51119451809 | Shop at ECS Tuning | |||||
| 10 | Absorber right | SRR | 1 | 51119451810 | Shop at ECS Tuning | |||||
| 11 | Impact absorber left | 1 | 51119851837 | Shop at ECS Tuning | ||||||
| 11 | Impact absorber right | 1 | 51119851838 | Shop at ECS Tuning | ||||||
| 12 | Set of mounts, front PDC / PMA sensor | M | 1 | 51115A52CF1 | Shop at ECS Tuning | |||||
| 13 | Screw | TS 5X12 | 2 | 07129908078 | Shop at ECS Tuning | |||||
| 14 | Countersunk screw | M6X35-8.8 | 4 | 07119907886 | Shop at ECS Tuning | |||||
| 15 | Hex bolt | TS5X20SW10 D=22 | 9 | 07149481168 | Shop at ECS Tuning | |||||
| 16 | Oval-head screw with spring washer | M6X20 | 8 | 07145A48F73 | Shop at ECS Tuning | |||||
| 17 | Screw | 5 X 16 | 4 | 07129907505 | Shop at ECS Tuning | |||||
| 18 | Screw | TS5X35 SW8 D=15 | 6 | 07129907535 | Shop at ECS Tuning | |||||
