Trim panel dashboard for BMW 3 Series G20 Sedan LCI M340dX (2025)

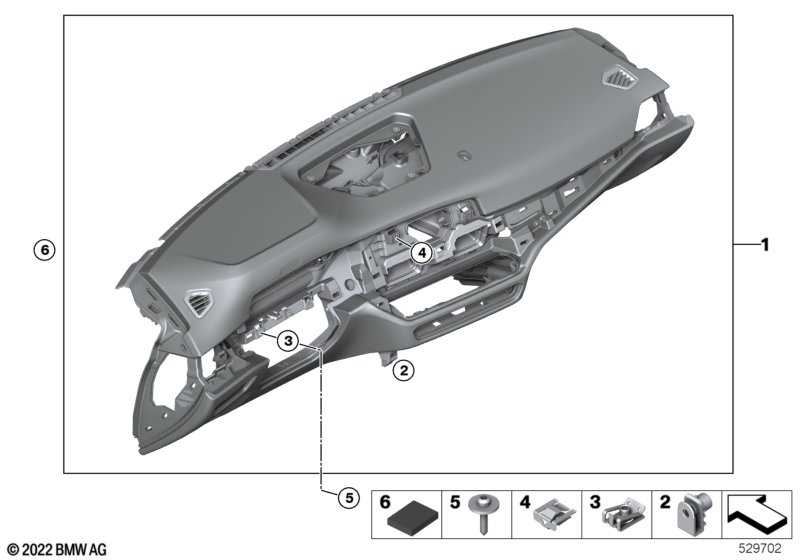

This Trim panel dashboard technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI M340dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with INSTRUMENT PANEL LUXURY and BMW Live dashboard Professional and Sensatec perforated/Canberra beige |
S4NWA=Yes S6U3A=Yes KHFY=Yes |
|||||||||
| 01 | Sensatec HUD instrument panel, seam gray | SCHWARZ/BEIGE | 1 | 07/2024 | 51459642207 | NoS | Shop at ECS Tuning | |||
| For vehicles with INSTRUMENT PANEL LUXURY and BMW Live dashboard Professional and Leather Vernasca/ oyster dec.stitching |
S4NWA=Yes S6U3A=Yes MAOI=Yes |
|||||||||
| 01 | Sensatec HUD instrument panel, seam gray | SCHWARZ/OYSTER | 1 | 07/2024 | 51459642206 | NoS | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard and BMW Live dashboard Professional and Individual full leather, Fiona Red/black |
S4M5A=Yes S6U3A=Yes VBHZ=Yes |
|||||||||
| 01 | Dashboard leather Head-Up Display | SCHWARZ/ROT | 1 | 07/2024 | 51457873750 | NoS | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard and BMW Live dashboard Professional and Full leather Merino/Silverstone/black |
S4M5A=Yes S6U3A=Yes X3IA=Yes |
|||||||||
| 01 | Dashboard leather Head-Up Display | SILVERSTONE | 1 | 07/2024 | 51459643820 | NoS | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard and BMW Live dashboard Professional and Full leather Merino/Silverstone/black |
S4M5A=Yes S6U3A=No X3IA=Yes |
|||||||||
| 01 | Instrument panel leather | SILVERSTONE | 1 | 07/2024 | 51459643819 | NoS | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard and BMW Live dashboard Professional and FULL LEATHER MERINO ANTHRACITE |
S4M5A=Yes S6U3A=No X3AT=Yes |
|||||||||
| 01 | Instrument panel leather | YASMARINABLAU | 1 | 07/2024 | 51457873746 | NoS | Shop at ECS Tuning | |||
| For vehicles with INSTRUMENT PANEL LUXURY and BMW Live dashboard Professional and Sensatec perforated/cognac, extended |
S4NWA=Yes S6U3A=No KHKC=Yes |
|||||||||
| 01 | Instrument panel 'Sensatec' | SCHWARZ/COGNAC | 1 | 07/2024 | 51459642225 | NoS | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard and BMW Live dashboard Professional and Individual full leather, ivory white |
S4M5A=Yes S6U3A=Yes VBEW=Yes |
|||||||||
| 01 | Dashboard leather Head-Up Display | SCHWARZ/WEIß | 1 | 07/2024 | 51457873751 | NoS | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard and BMW Live dashboard Professional and Individual full leather, tartufo |
S4M5A=Yes S6U3A=No VBTQ=Yes |
|||||||||
| 01 | Instrument panel leather | SCHWARZ/TARTUFO | 1 | 07/2024 | 51457873745 | NoS | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard and BMW Live dashboard Professional and Individual full leather, ivory white |
S4M5A=Yes S6U3A=No VBEW=Yes |
|||||||||
| 01 | Instrument panel leather | SCHWARZ/WEIß | 1 | 07/2024 | 51457873744 | NoS | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard and BMW Live dashboard Professional and Individual full leather, Fiona Red/black |
S4M5A=Yes S6U3A=No VBHZ=Yes |
|||||||||
| 01 | Instrument panel leather | SCHWARZ/ROT | 1 | 07/2024 | 51457873743 | NoS | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard and BMW Live dashboard Professional and Full leather Merino/Kyalami orange/black |
S4M5A=Yes S6U3A=No X3KX=Yes |
|||||||||
| 01 | Instrument panel leather | KYALAMIORANGE | 1 | 07/2024 | 51457873747 | NoS | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard and BMW Live dashboard Professional and Full leather Merino/Kyalami orange/black |
S4M5A=Yes S6U3A=Yes X3KX=Yes |
|||||||||
| 01 | Dashboard leather Head-Up Display | KYALAMIORANGE | 1 | 07/2024 | 51457873754 | NoS | Shop at ECS Tuning | |||
| For vehicles with INSTRUMENT PANEL LUXURY and BMW Live dashboard Professional and Leather Vernasca/ oyster dec.stitching |
S4NWA=Yes S6U3A=No MAOI=Yes |
|||||||||
| 01 | Instrument panel 'Sensatec' | SCHWARZ/OYSTER | 1 | 07/2024 | 51459642221 | NoS | Shop at ECS Tuning | |||
| For vehicles with INSTRUMENT PANEL LUXURY and BMW Live dashboard Professional and Sensatec perforated/cognac, extended |
S4NWA=Yes S6U3A=Yes KHKC=Yes |
|||||||||
| 01 | Sensatec HUD instrument panel, seam gray | SCHWARZ/COGNAC | 1 | 07/2024 | 51459642209 | NoS | Shop at ECS Tuning | |||
| For vehicles with INSTRUMENT PANEL LUXURY and BMW Live dashboard Professional and Sensatec perforated/Canberra beige |
S4NWA=Yes S6U3A=No KHFY=Yes |
|||||||||
| 01 | Instrument panel 'Sensatec' | SCHWARZ/BEIGE | 1 | 07/2024 | 51459642222 | NoS | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard and BMW Live dashboard Professional and Individual full leather, tartufo |
S4M5A=Yes S6U3A=Yes VBTQ=Yes |
|||||||||
| 01 | Dashboard leather Head-Up Display | SCHWARZ/TARTUFO | 1 | 07/2024 | 51457873752 | NoS | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard and INSTRUMENT PANEL LUXURY and BMW Live dashboard Professional and Sensatec perforated/cognac, extended |
S4M5A=No S4NWA=No S6U3A=Yes KHKC=Yes |
|||||||||
| 01 | Instrument panel HeadUp Display | SCHWARZ/COGNAC | 1 | 07/2024 | 51459642213 | NoS | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard and INSTRUMENT PANEL LUXURY and BMW Live dashboard Professional and Leather Vernasca/ oyster dec.stitching |
S4M5A=No S4NWA=No S6U3A=Yes MAOI=Yes |
|||||||||
| 01 | Instrument panel HeadUp Display | SCHWARZ/OYSTER | 1 | 07/2024 | 51459642211 | NoS | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard and INSTRUMENT PANEL LUXURY and BMW Live dashboard Professional and Leather Vernasca/ oyster dec.stitching |
S4M5A=No S4NWA=No S6U3A=No MAOI=Yes |
|||||||||
| 01 | Instrument panel | SCHWARZ/OYSTER | 1 | 07/2024 | 51459642200 | NoS | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard and INSTRUMENT PANEL LUXURY and BMW Live dashboard Professional and Sensatec perforated/cognac, extended |
S4M5A=No S4NWA=No S6U3A=No KHKC=Yes |
|||||||||
| 01 | Instrument panel | SCHWARZ/COGNAC | 1 | 07/2024 | 51459642204 | NoS | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard and INSTRUMENT PANEL LUXURY and BMW Live dashboard Professional and Sensatec perforated/Canberra beige |
S4M5A=No S4NWA=No S6U3A=No KHFY=Yes |
|||||||||
| 01 | Instrument panel | SCHWARZ/BEIGE | 1 | 07/2024 | 51459642203 | NoS | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard and INSTRUMENT PANEL LUXURY and BMW Live dashboard Professional and Sensatec perforated/Canberra beige |
S4M5A=No S4NWA=No S6U3A=Yes KHFY=Yes |
|||||||||
| 01 | Instrument panel HeadUp Display | SCHWARZ/BEIGE | 1 | 07/2024 | 51459642212 | NoS | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard and BMW Live dashboard Professional and Cloth Hevelius/anthracite or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec perforated/black or Leather, Vernasca, black, gray stitching or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather Vernasca/ oyster dec.stitching |
S4M5A=Yes S6U3A=No EHAT=Yes KHG7=Yes KHKC=Yes KHSW=Yes MAH7=Yes MAMU=Yes MANL=Yes MAOI=Yes |
|||||||||
| 01 | Instrument panel leather | SCHWARZ/SCHWARZ | 1 | 07/2024 | 51457873742 | NoS | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard and BMW Live dashboard Professional and Cloth Hevelius/anthracite or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec perforated/black or Leather, Vernasca, black, gray stitching or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather Vernasca/ oyster dec.stitching |
S4M5A=Yes S6U3A=Yes EHAT=Yes KHG7=Yes KHKC=Yes KHSW=Yes MAH7=Yes MAMU=Yes MANL=Yes MAOI=Yes |
|||||||||
| 01 | Dashboard leather Head-Up Display | SCHWARZ/SCHWARZ | 1 | 07/2024 | 51457873749 | NoS | Shop at ECS Tuning | |||
| For vehicles with INSTRUMENT PANEL LUXURY and BMW Live dashboard Professional and Cloth Hevelius/anthracite or Cloth Black M PerformTex with M piping or Sensatec perforated/Tacora red or Sensatec perforated/black or Leather, Vernasca, black, gray stitching or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather Merino ivory white or Leather Merino tartufo |
S4NWA=Yes S6U3A=Yes EHAT=Yes EPMI=Yes KHG7=Yes KHSW=Yes MAH7=Yes MAMU=Yes MANL=Yes VAEW=Yes VATQ=Yes |
|||||||||
| 01 | Sensatec HUD instrument panel, seam gray | SCHWARZ/SCHWARZ | 1 | 07/2024 | 51459642210 | NoS | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard and INSTRUMENT PANEL LUXURY and BMW Live dashboard Professional and Cloth Hevelius/anthracite or Cloth Black M PerformTex with M piping or Sensatec perforated/Tacora red or Sensatec perforated/black or Leather, Vernasca, black, gray stitching or Leather Vernasca/mocca decor.stitching or Leather Merino ivory white or Leather Merino tartufo |
S4M5A=No S4NWA=No S6U3A=No EHAT=Yes EPMI=Yes KHG7=Yes KHSW=Yes MAH7=Yes MAMU=Yes VAEW=Yes VATQ=Yes |
|||||||||
| 01 | Instrument panel | SCHWARZ/SCHWARZ | 1 | 07/2024 | 51459642205 | NoS | Shop at ECS Tuning | |||
| For vehicles with INSTRUMENT PANEL LUXURY and BMW Live dashboard Professional and Cloth Hevelius/anthracite or Cloth Black M PerformTex with M piping or Sensatec perforated/Tacora red or Sensatec perforated/black or Leather, Vernasca, black, gray stitching or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather Merino ivory white or Leather Merino tartufo |
S4NWA=Yes S6U3A=No EHAT=Yes EPMI=Yes KHG7=Yes KHSW=Yes MAH7=Yes MAMU=Yes MANL=Yes VAEW=Yes VATQ=Yes |
|||||||||
| 01 | Instrument panel 'Sensatec' | SCHWARZ/SCHWARZ | 1 | 07/2024 | 51459642226 | NoS | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard and INSTRUMENT PANEL LUXURY and BMW Live dashboard Professional and Cloth Hevelius/anthracite or Cloth Black M PerformTex with M piping or Sensatec perforated/Tacora red or Sensatec perforated/black or Leather, Vernasca, black, gray stitching or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather Merino ivory white or Leather Merino tartufo |
S4M5A=No S4NWA=No S6U3A=Yes EHAT=Yes EPMI=Yes KHG7=Yes KHSW=Yes MAH7=Yes MAMU=Yes MANL=Yes VAEW=Yes VATQ=Yes |
|||||||||
| 01 | Instrument panel HeadUp Display | SCHWARZ/SCHWARZ | 1 | 07/2024 | 51459642214 | NoS | Shop at ECS Tuning | |||
| 02 | C-clip sheet metal nut | 6 | 07149319414 | Shop at ECS Tuning | ||||||
| 03 | C-clip sheet metal nut | 14 | 07149496755 | NoS | Shop at ECS Tuning | |||||
| 04 | Spring clip | 2 | 07149236757 | Shop at ECS Tuning | ||||||
| 05 | Combi. fillister head self-tapping screw | 14 | 07149323312 | NoS | Shop at ECS Tuning | |||||
| 06 | Set felt strip self-adhesive | 1 | 51452353024 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
