Mounting parts, I-panel, bottom for BMW 3 Series G20 Sedan LCI 330dX (2021)

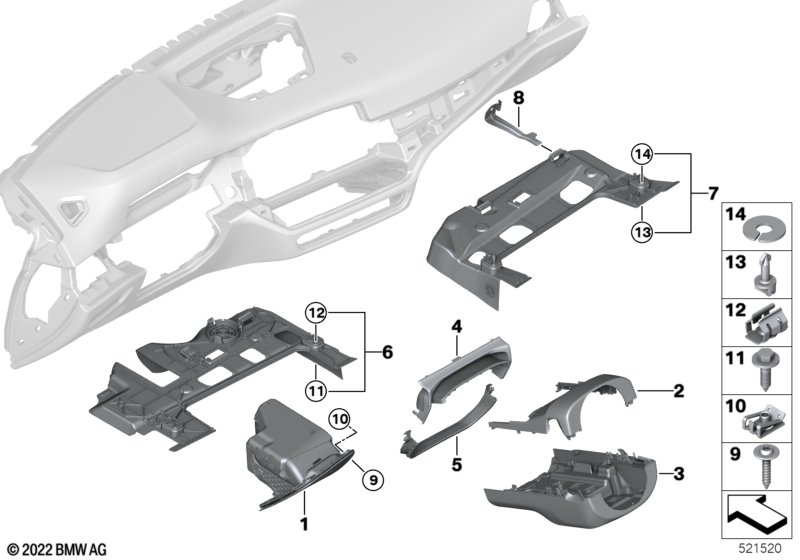

This Mounting parts, I-panel, bottom technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Folding box, driver's side | SCHWARZ | 1 | 51456998229 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Vernasca/ oyster dec.stitching |
MAOI=Yes |
|||||||||
| 01 | Folding box, driver's side | OYSTER | 1 | 51167943206 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/cognac, extended or Leather, Vernasca, cognac, gy stitching |
KHKC=Yes MAPQ=Yes |
|||||||||
| 01 | Folding box, driver's side | COGNAC | 1 | 51167943208 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige |
KHFR=Yes KHFS=Yes KHFY=Yes |
|||||||||
| 01 | Folding box, driver's side | CANBERRABEIGE | 1 | 51167943207 | NoS | Shop at ECS Tuning | ||||
| 02 | Trim panel, steering column, top | 1 | 51459621860 | NoS | Shop at ECS Tuning | |||||
| 03 | Trim panel, steering column, bottom | 1 | 51456805546 | NoS | Shop at ECS Tuning | |||||
| 04 | Joint cover, steering column, upper | 1 | 51459621863 | NoS | Shop at ECS Tuning | |||||
| 05 | Frame gap cover | 1 | 51459621857 | NoS | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and Extra package, EU-specific |
L802A=No S230A=No |
|||||||||
| 06 | Trim panel foot controls | SCHWARZ | 1 | 51456998514 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clamp | 1 | 07148850459 | Shop at ECS Tuning | ||||||
| -- | Screw | 5X28 ZNNIV | 1 | 07119906661 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and Extra package, EU-specific |
L802A=Yes S230A=Yes |
|||||||||
| 06 | Trim panel foot controls | SCHWARZ | 1 | 51456998516 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clamp | 1 | 07148850459 | Shop at ECS Tuning | ||||||
| -- | Screw | 5X28 ZNNIV | 1 | 07119906661 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and Extra package, EU-specific and Sensatec perforated/Canberra beige, ext. |
L802A=Yes S230A=Yes KHFR=Yes |
|||||||||
| 06 | Trim panel foot controls | CANBERRABEIGE | 1 | 51456998618 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clamp | 1 | 07148850459 | Shop at ECS Tuning | ||||||
| -- | Screw | 5X28 ZNNIV | 1 | 07119906661 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and Extra package, EU-specific and Sensatec perforated/Canberra beige, ext. |
L802A=No S230A=No KHFR=Yes |
|||||||||
| 06 | Trim panel foot controls | CANBERRABEIGE | 1 | 51456998616 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clamp | 1 | 07148850459 | Shop at ECS Tuning | ||||||
| -- | Screw | 5X28 ZNNIV | 1 | 07119906661 | Shop at ECS Tuning | |||||
| 07 | Passenger's footwell trim panel | SCHWARZ | 1 | 51456998518 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Canberra beige, ext. |
KHFR=Yes |
|||||||||
| 07 | Passenger's footwell trim panel | CANBERRABEIGE | 1 | 51456998620 | NoS | Shop at ECS Tuning | ||||
| 09 | Oval-head screw with washer | DELTA PT4X20 | 2 | 07149185673 | Shop at ECS Tuning | |||||
| 10 | C-clip sheet metal nut | 2 | 07149496755 | NoS | Shop at ECS Tuning | |||||
| 11 | Screw | 5X28 ZNNIV | 2 | 07119906661 | Shop at ECS Tuning | |||||
| 12 | Clamp | 2 | 07148850459 | Shop at ECS Tuning | ||||||
| 13 | Lock | 2 | 51165A260C9 | Shop at ECS Tuning | ||||||
| 14 | Securing clip | 2 | 07149321592 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
