Outside mirror for BMW 3 Series G20 Sedan LCI 320d (2025)

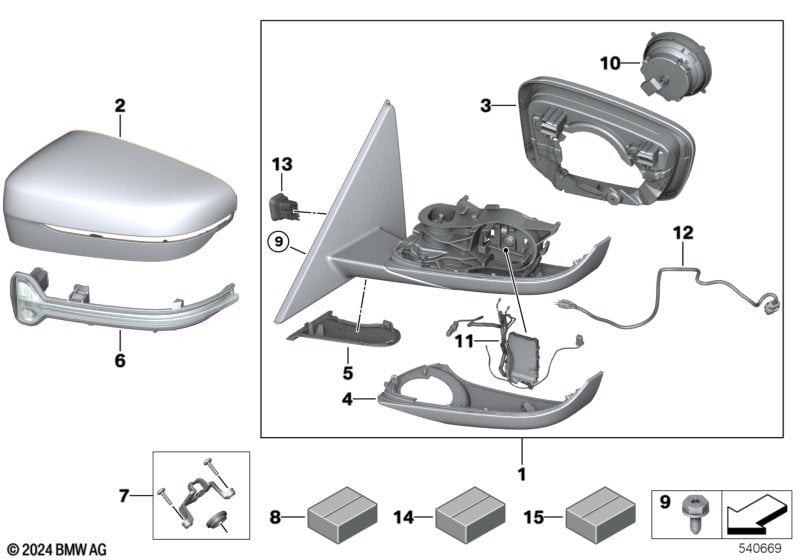

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S430A=Yes S5ASA=Yes S5AUA=Yes S5DNA=No |
|||||||||
| 01 | heated outside mirror, right | SHADOW-LINE | 1 | 51165B4B3C4 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | heated outside mirror, left | SHADOW-LINE | 1 | 51169854787 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hexagon screw, self-threading | M6X19 | 3 | 07147482347 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S430A=Yes S5ASA=Yes S5AUA=Yes S5DNA=Yes |
|||||||||
| 01 | heated outside mirror, left | SHADOW-LINE | 1 | 51169854799 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | heated outside mirror, left | SHADOW-LINE | 1 | 51165B4B443 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | heated outside mirror, right | SHADOW-LINE | 1 | 51169854800 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | heated outside mirror, right | SHADOW-LINE | 1 | 51165B4B444 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of camera mounts for exterior mirror | 1 | 51168498269 | Shop at ECS Tuning | ||||||
| -- | Hexagon screw, self-threading | M6X19 | 3 | 07147482347 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S430A=Yes S5ASA=No S5AUA=No S5DNA=Yes |
|||||||||
| 01 | heated outside mirror, left | SHADOW-LINE | 1 | 51165B4B433 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | heated outside mirror, right | SHADOW-LINE | 1 | 51168498242 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of camera mounts for exterior mirror | 1 | 51168498269 | Shop at ECS Tuning | ||||||
| -- | Hexagon screw, self-threading | M6X19 | 3 | 07147482347 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S430A=Yes S5ASA=No S5AUA=No S5DNA=No |
|||||||||
| 01 | heated outside mirror, left | SHADOW-LINE | 1 | 51165B4B395 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hexagon screw, self-threading | M6X19 | 3 | 07147482347 | Shop at ECS Tuning | |||||
| 01 | heated outside mirror, right | SHADOW-LINE | 1 | 51165B4B396 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hexagon screw, self-threading | M6X19 | 3 | 07147482347 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S430A=No S459A=Yes S5ASA=No S5AUA=No S5DNA=No |
|||||||||
| 01 | heated outside mirror, left | SHADOW-LINE | 1 | 51168498225 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | heated outside mirror, right | SHADOW-LINE | 1 | 51168498226 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hexagon screw, self-threading | M6X19 | 3 | 07147482347 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Driving Assistant and Driving assistant professional and Parking assistance system Plus |
S430A=No S459A=No S5ASA=No S5AUA=No S5DNA=No |
|||||||||
| 01 | heated outside mirror, left | SHADOW-LINE | 1 | 51168498221 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | heated outside mirror, right | SHADOW-LINE | 1 | 51168498222 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hexagon screw, self-threading | M6X19 | 3 | 07147482347 | Shop at ECS Tuning | |||||
| 02 | Outside mirror cover cap, left, primed | 1 | 51168492899 | Shop at ECS Tuning | ||||||
| 02 | Outside mirror cover cap, right, primed | 1 | 51168492900 | Shop at ECS Tuning | ||||||
| 03 | Supporting ring left | SHADOW-LINE | 1 | 51167498195 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 03 | Supporting ring right | SHADOW-LINE | 1 | 51167498196 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51168498268 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system Plus |
S5DNA=No |
|||||||||
| 04 | Housing lower section, left | SHADOW-LINE | 1 | 51167498205 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Housing lower section, right | SHADOW-LINE | 1 | 51167498206 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair kit exterior rearview mirror | 1 | 51168496665 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system Plus |
S5DNA=Yes |
|||||||||
| 04 | Housing lower section, left | SHADOW-LINE | 1 | 51167498213 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Housing lower section, right | SHADOW-LINE | 1 | 51167498214 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair kit exterior rearview mirror | 1 | 51168496665 | Shop at ECS Tuning | ||||||
| 05 | Set of mirror base caps | 1 | 51169464424 | Shop at ECS Tuning | ||||||
| 06 | Auxiliary turn signal, mirror, left | 1 | 63137498161 | Shop at ECS Tuning | ||||||
| 06 | Auxiliary turn signal, mirror, right | 1 | 63137498162 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system Plus |
S5DNA=Yes |
|||||||||
| 07 | Set of camera mounts for exterior mirror | 1 | 51168498269 | Shop at ECS Tuning | ||||||
| 08 | Set of screws | 1 | 51168498268 | Shop at ECS Tuning | ||||||
| 09 | Hexagon screw, self-threading | M6X19 | 6 | 07147482347 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Driving Assistant and Parking assistance system Plus |
S430A=Yes S459A=Yes S5ASA=Yes S5DNA=Yes |
|||||||||
| 10 | Power, outside mirror, LIN bus | 2 | 67137266659 | +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51168498268 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Driving Assistant and Parking assistance system Plus |
S430A=No S459A=No S5ASA=No S5DNA=No |
|||||||||
| 10 | Drive, outside mirror left | 1 | 67137292347 | +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 10 | Drive, outside mirror right | 1 | 67137292348 | +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51168498268 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional |
S430A=Yes S5ASA=No S5AUA=No |
|||||||||
| 11 | Mirror electronics, right | 1 | 67135A3DB18 | Shop at ECS Tuning | ||||||
| 11 | Mirror electronics, left | 1 | 67135A3DB21 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional |
S430A=Yes S5ASA=Yes S5AUA=Yes |
|||||||||
| 11 | Mirror electronics, right | 1 | 67135A3DB24 | Shop at ECS Tuning | ||||||
| 11 | Mirror electronics, left | 1 | 67135A3DB25 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Driving Assistant and Driving assistant professional |
S430A=No S459A=Yes S5ASA=No S5AUA=No |
|||||||||
| 11 | Mirror electronics, left | 1 | 67135A3DB15 | Shop at ECS Tuning | ||||||
| 11 | Mirror electronics, left | 1 | 67135B41F07 | Shop at ECS Tuning | ||||||
| 11 | Mirror electronics, right | 1 | 67135A3DB16 | Shop at ECS Tuning | ||||||
| 11 | Mirror electronics, right | 1 | 67135B41F08 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Driving Assistant and Driving assistant professional |
S430A=No S459A=No S5ASA=No S5AUA=No |
|||||||||
| 11 | Wiring harness, door mirror, heated, lft | 1 | 51167480639 | Shop at ECS Tuning | ||||||
| 11 | Wiring, exterior mirror, heated, right | 1 | 51167480640 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system Plus |
S5DNA=Yes |
|||||||||
| 12 | Wiring harness ICAM | 2 | 51167498233 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system Plus |
S5DNA=No |
|||||||||
| 13 | Plug | 2 | 51167498236 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system Plus |
S5DNA=Yes |
|||||||||
| 13 | Plug | 2 | 51167498237 | Shop at ECS Tuning | ||||||
| 14 | Repair kit exterior rearview mirror | 1 | 51168496665 | Shop at ECS Tuning | ||||||
| 15 | Repair kit cable exterior mirror | 1 | 61359853372 | Shop at ECS Tuning | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
