Mirror glass for BMW 3 Series G21 Touring LCI 330d (2024)

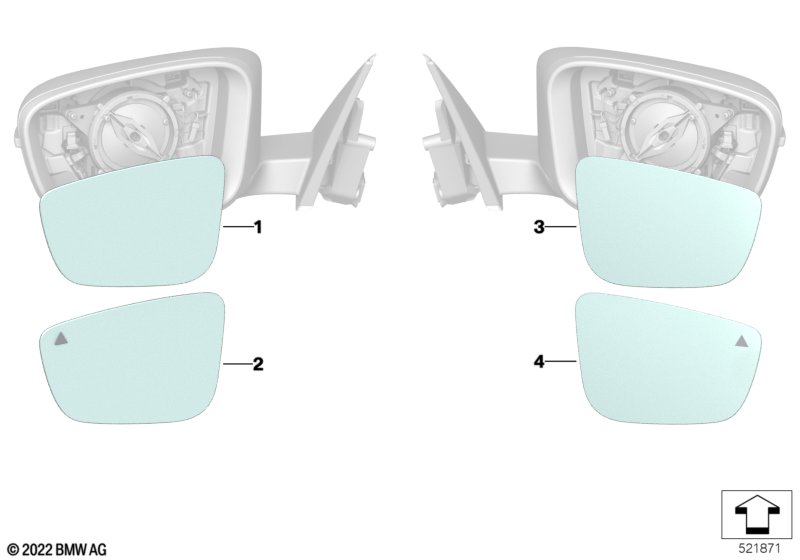

This Mirror glass technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional |
S430A=No S5ASA=No S5AUA=No |
|||||||||
| 01 | Mirror glas, heated, wide-angle, left | 1 | 51167955143 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional |
S430A=Yes S5ASA=No S5AUA=No |
|||||||||
| 01 | Mirror glas, heated, wide-angle, left | EC | 1 | 51165A07753 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional |
S5ASA=Yes S5AUA=Yes |
|||||||||
| 02 | Mirror glas, heated, wide-angle, left | EC/HC2 | 1 | 51165A07757 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional |
S5ASA=Yes S5AUA=No |
|||||||||
| 02 | Mirror glas, heated, wide-angle, left | EC/HC2 | 1 | 51165A07757 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional |
S5ASA=No S5AUA=Yes |
|||||||||
| 02 | Mirror glas, heated, wide-angle, left | EC/HC2 | 1 | 51165A07757 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional |
S430A=No S5ASA=No S5AUA=No |
|||||||||
| 03 | Mirror glas heated convex right | 1 | 51167955146 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Driving Assistant and Driving assistant professional |
S430A=Yes S5ASA=No S5AUA=No |
|||||||||
| 03 | Mirror glas, heated, wide-angle, right | 1 | 51167955144 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving assistant professional |
S5ASA=Yes S5AUA=Yes |
|||||||||
| 04 | Mirror glas, heated, wide-angle, right | HC2 | 1 | 51169492756 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional |
S5ASA=Yes S5AUA=No |
|||||||||
| 04 | Mirror glas, heated, wide-angle, right | HC2 | 1 | 51169492756 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional |
S5ASA=No S5AUA=Yes |
|||||||||
| 04 | Mirror glas, heated, wide-angle, right | HC2 | 1 | 51169492756 | Shop at ECS Tuning | |||||
