Firearms compartment and door trim panel for BMW 5 Series G30 LCI 530dX (2023)

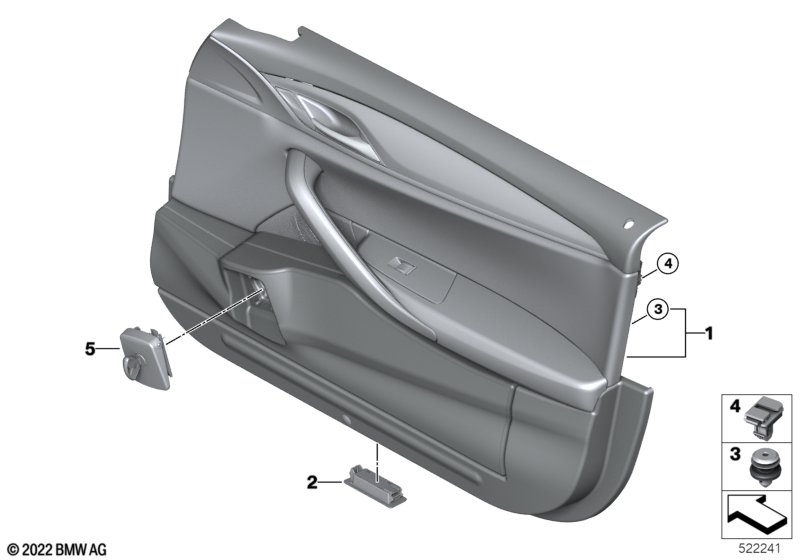

This Firearms compartment and door trim panel technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 530dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Weapon box |
S130A=Yes |
||||||||
| For vehicles with Inter.trim finishers oxide silver dark and Cloth junction / anthracite Attention! For the seat memory, please observe the repair instructions 5142-26-G30 . The cutout in the door trim panel needs to be punched. |
S4K8A=Yes BYAT=Yes |
|||||||||
| 01 | Right front door trim panel | ANTHRAZIT | 1 | 51418076322 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Inter.trim finishers oxide silver dark and Sensatec perforated/black |
S4K8A=Yes KHSW=Yes |
|||||||||
| 01 | Right front door trim panel | SCHWARZ | 1 | 10/2020 | 51417884986 | NoS | Shop at ECS Tuning | |||
| For vehicles with Inter.trim finishers oxide silver dark and Ambient interior lighting and Sensatec perforated/black |
S4K8A=Yes S4URA=Yes KHSW=Yes |
|||||||||
| 01 | Right front door trim panel | SCHWARZ | 1 | 10/2020 | 51417884987 | NoS | Shop at ECS Tuning | |||
| For vehicles with Inter.trim finishers oxide silver dark and Ambient interior lighting and Cloth junction / anthracite Attention! For the seat memory, please observe the repair instructions 5142-26-G30 . The cutout in the door trim panel needs to be punched. |
S4K8A=Yes S4URA=Yes BYAT=Yes |
|||||||||
| 01 | Right front door trim panel | ANTHRAZIT | 1 | 51418076323 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Black, highgloss Perlglanz chrome accent and Ambient interior lighting and Cloth/leather plectoid / anthracite or Sensatec perforated/black |
S4LUA=Yes S4URA=Yes CNAT=Yes KHSW=Yes |
|||||||||
| 01 | Right front door trim panel | SCHWARZ | 1 | 10/2020 | 51417884988 | NoS | Shop at ECS Tuning | |||
| 02 | LED for interior lamp | 1 | 63319458174 | Shop at ECS Tuning | ||||||
| 03 | Clip | 20 | 51417325082 | Shop at ECS Tuning | ||||||
| 04 | Clip with sealing washer right | 1 | 51217457388 | Shop at ECS Tuning | ||||||
| 05 | Lock with handle for firearms box | 1 | 51417434646 | Shop at ECS Tuning | ||||||
