Trim and seals for door, front for BMW 3 Series G20 Sedan LCI 320dX (2025)

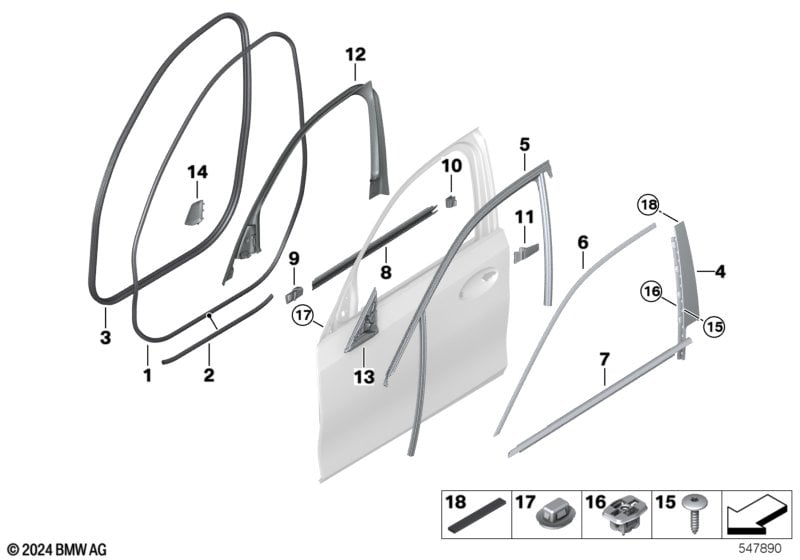

This Trim and seals for door, front technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 320dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door weatherstrip | 2 | 51769466618 | Shop at ECS Tuning | ||||||
| 01 | Door weatherstrip | 2 | 51727390750 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of templates, door, front | 1 | 01299466616 | Shop at ECS Tuning | ||||||
| Note: Observe new repair instructions 5171003! |
||||||||||
| 02 | Partial replacement, door weatherstrip | 2 | 51765B68FC5 | Shop at ECS Tuning | ||||||
| 03 | Edge protection, door, front | 2 | 51727497912 | Shop at ECS Tuning | ||||||
| 04 | Finisher window frame B-pillar FL door | SHADOWLINE | 1 | 51437465137 | Shop at ECS Tuning | |||||
| 04 | Finisher window frame B-pillar FR door | SHADOWLINE | 1 | 51437465138 | Shop at ECS Tuning | |||||
| 05 | Window guide, left front door | 1 | 51337407403 | Shop at ECS Tuning | ||||||
| 05 | Window guide, right front door | 1 | 51337407404 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=No |
|||||||||
| 06 | Trim, window frame, top, door front left | SW HGL | 1 | 51337465169 | Shop at ECS Tuning | |||||
| 06 | Trim, window frame, upper, door fr right | SW HGL | 1 | 51337465170 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=Yes |
|||||||||
| 06 | Trim, window frame, top, door front left | ALU SATINIERT | 1 | 51337465165 | Shop at ECS Tuning | |||||
| 06 | Trim, window frame, upper, door fr right | ALU SATINIERT | 1 | 51337465166 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=No |
|||||||||
| 07 | Channel cover,exterior,door, front left | SW HGL | 1 | 51337465149 | Shop at ECS Tuning | |||||
| 07 | Channel cover,exterior,door, front right | SW HGL | 1 | 51337465150 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=Yes |
|||||||||
| 07 | Shaft cover outer front door left | ALU SATINIERT | 1 | 51337465145 | Shop at ECS Tuning | |||||
| 07 | Shaft cover outer front door right | ALU SATINIERT | 1 | 51337465146 | Shop at ECS Tuning | |||||
| 08 | Channel sealing,inside,door, front left | 1 | 51337407419 | Shop at ECS Tuning | ||||||
| 08 | Channel sealing,inside,door, front right | 1 | 51337407420 | Shop at ECS Tuning | ||||||
| 09 | Seal, end panel, A-column, left | 1 | 51337440137 | Shop at ECS Tuning | ||||||
| 09 | Seal, end panel, A-column, right | 1 | 51337440138 | Shop at ECS Tuning | ||||||
| 10 | Seal B-pillar trim panel front door left | 1 | 51337437451 | Shop at ECS Tuning | ||||||
| 10 | Seal B-pillar trim pan.front door ri. | 1 | 51337437452 | Shop at ECS Tuning | ||||||
| 11 | Seal B-pillar trim panel bottom left | 1 | 51337407431 | Shop at ECS Tuning | ||||||
| 11 | Seal B-pillar trim panel bottom right | 1 | 51337407432 | Shop at ECS Tuning | ||||||
| For vehicles with HiFi speaker system or Harman/Kardon Surround Sound system |
S676A=Yes S688A=Yes |
|||||||||
| 12 | Cover, window border, door, front left | 1 | 51339891447 | Shop at ECS Tuning | ||||||
| 12 | Cover, window border, door, front right | 1 | 51339891448 | Shop at ECS Tuning | ||||||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system |
S676A=No S688A=No |
|||||||||
| 12 | Cover, window border, door, front left | 1 | 51337447171 | Shop at ECS Tuning | ||||||
| 12 | Cover, window border, door, front right | 1 | 51337447172 | Shop at ECS Tuning | ||||||
| 13 | Seal, outer left mirror triangle | 1 | 51217432203 | Shop at ECS Tuning | ||||||
| 13 | Seal, outer right mirror triangle | 1 | 51217432204 | Shop at ECS Tuning | ||||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 14 | Grid, loudspeaker left | 1 | 51339891451 | Shop at ECS Tuning | ||||||
| 14 | Grid, loudspeaker right | 1 | 51339891452 | Shop at ECS Tuning | ||||||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system |
S676A=Yes S688A=No |
|||||||||
| 14 | Grid, loudspeaker left | 1 | 51339891449 | Shop at ECS Tuning | ||||||
| 14 | Grid, loudspeaker right | 1 | 51339891450 | Shop at ECS Tuning | ||||||
| 15 | Fillister head screw | 8 | 07147453046 | Shop at ECS Tuning | ||||||
| 16 | Clip | 8 | 51337140714 | Shop at ECS Tuning | ||||||
| 17 | Plug-in retainer | 4 | 07147376600 | Shop at ECS Tuning | ||||||
| 18 | Adhesive tape, felt | 2 | 51335B60BF0 | Shop at ECS Tuning | ||||||
