Exterior trim / grill for BMW 3 Series G20 Sedan LCI 330e (2022)

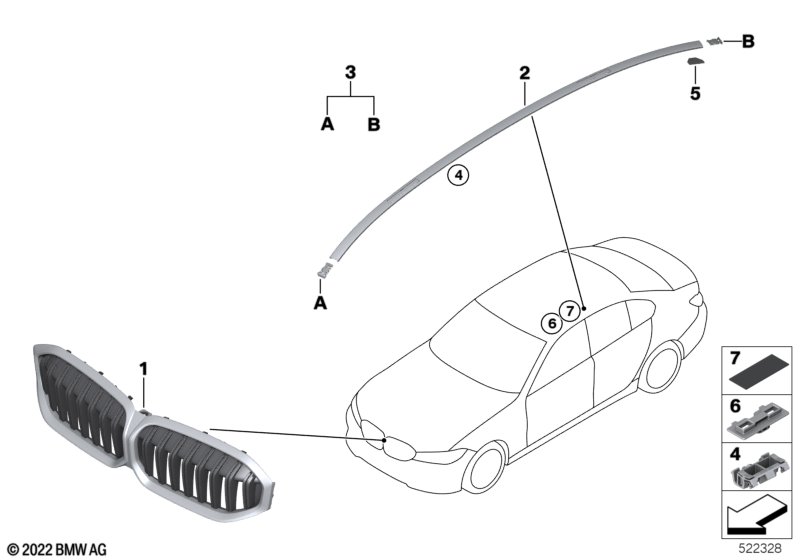

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Parking assistance system Plus and M Aerodynamics package and M Shadow Line with expanded scope |
S5DNA=Yes S715A=Yes S7M9A=Yes |
|||||||||
| 01 | Front ornamental grille | ICAM/SHADOWLINE | 1 | 51115A1BFB0 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus and M Aerodynamics package and M Shadow Line with expanded scope |
S5DNA=Yes S715A=Yes S7M9A=No |
|||||||||
| 01 | Front ornamental grille | MSP / ICAM | 1 | 51115A1BFA6 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus and M Aerodynamics package and M Shadow Line with expanded scope |
S5DNA=No S715A=Yes S7M9A=Yes |
|||||||||
| 01 | Front ornamental grille | SHADOWLINE | 1 | 51115A1BFA9 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus and M Aerodynamics package and M Shadow Line with expanded scope |
S5DNA=No S715A=No S7M9A=No |
|||||||||
| 01 | Front ornamental grille | BASIS | 1 | 51115A1BF69 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus and M Aerodynamics package and M Shadow Line with expanded scope |
S5DNA=No S715A=Yes S7M9A=No |
|||||||||
| 01 | Front ornamental grille | MSP | 1 | 51115A1BFA5 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus and M Aerodynamics package and M Shadow Line with expanded scope |
S5DNA=Yes S715A=No S7M9A=No |
|||||||||
| 01 | Front ornamental grille | ICAM | 1 | 51115A1BF70 | Shop at ECS Tuning | |||||
| End caps and mounting clips already included. |
||||||||||
| 02 | Roof molding prime-coated left | 1 | 51139464787 | Shop at ECS Tuning | ||||||
| 02 | Roof molding prime-coated right | 1 | 51139464788 | Shop at ECS Tuning | ||||||
| 03 | Set of end caps, primed | 1 | 51139464789 | Shop at ECS Tuning | ||||||
| 04 | Clip for roof trim strip | 14 | 51138496668 | Shop at ECS Tuning | ||||||
