Outside mirror for BMW 7 Series G70 740d (2025)

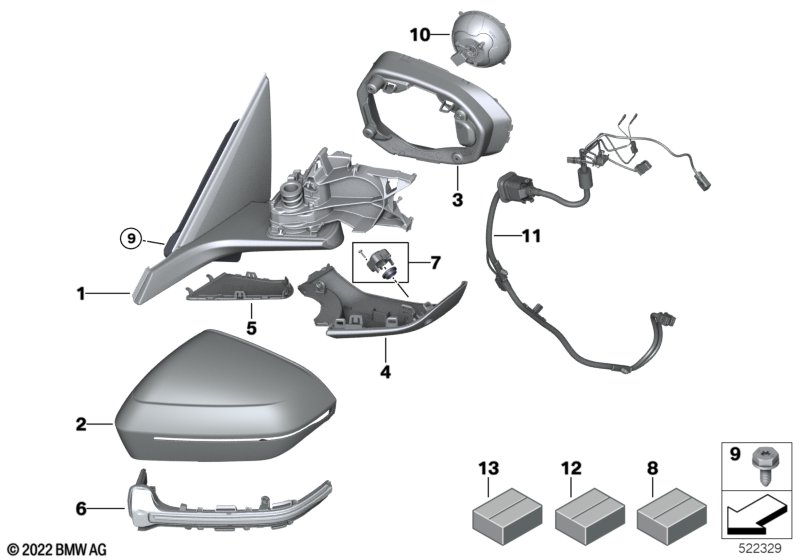

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 01 | Exterior mirror w/o mounted parts, left | SHADOW LINE | 1 | 51165A356D1 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Exterior mirror w/o mounted parts, right | SHADOW LINE | 1 | 51165A356D2 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hexagon screw, self-threading | M6X19 | 3 | 07147482347 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=No |
|||||||||
| 01 | Exterior mirror chrome without add-ons L | 1 | 51165A356D5 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 01 | Exterior mirror chrome without add-ons R | 1 | 51165A356D6 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Hexagon screw, self-threading | M6X19 | 3 | 07147482347 | Shop at ECS Tuning | |||||
| 02 | Mirror cap, primed, left | 1 | 51165A35211 | Shop at ECS Tuning | ||||||
| 02 | Mirror cap primed right | 1 | 51165A35212 | Shop at ECS Tuning | ||||||
| 03 | Retaining ring BMW Shadow Line left | 1 | 51169451955 | Shop at ECS Tuning | ||||||
| 03 | Retaining ring BMW Shadow Line right | 1 | 51169451956 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system Plus and Parking assistant professional and High gloss shadow line |
S5DNA=Yes S5DWA=Yes S760A=No |
|||||||||
| 04 | Lower housing section chrome top view L | 1 | 51165A356B5 | Shop at ECS Tuning | ||||||
| 04 | Lower housing section chrome top view R | 1 | 51165A356B6 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system Plus and Parking assistant professional and High gloss shadow line |
S5DNA=No S5DWA=No S760A=No |
|||||||||
| 04 | Lower housing section chrome basic left | 1 | 51165A356B1 | Shop at ECS Tuning | ||||||
| 04 | Lower housing section chrome basic right | 1 | 51165A356B2 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system Plus and Parking assistant professional and High gloss shadow line |
S5DNA=Yes S5DWA=Yes S760A=Yes |
|||||||||
| 04 | Lower housing section top view left | SHADOW-LINE | 1 | 51165A356A5 | Shop at ECS Tuning | |||||
| 04 | Lower housing section top view right | SHADOW-LINE | 1 | 51165A356A6 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus and Parking assistant professional and High gloss shadow line |
S5DNA=No S5DWA=No S760A=Yes |
|||||||||
| 04 | Lower housing section basic left | SHADOW-LINE | 1 | 51165A356A1 | Shop at ECS Tuning | |||||
| 04 | Lower housing section basic right | SHADOW-LINE | 1 | 51165A356A2 | Shop at ECS Tuning | |||||
| 05 | Set of mirror base caps | 1 | 51165A356C9 | Shop at ECS Tuning | ||||||
| 06 | Side repeater exterior mirror left | 1 | 51169451951 | Shop at ECS Tuning | ||||||
| 06 | Side repeater exterior mirror right | 1 | 51169451952 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system Plus and Parking assistant professional |
S5DNA=Yes S5DWA=Yes |
|||||||||
| 07 | Camera holder | 1 | 51165A356A0 | Shop at ECS Tuning | ||||||
| 08 | Set of screws | 1 | 51165A356A9 | Shop at ECS Tuning | ||||||
| 09 | Hexagon screw, self-threading | M6X19 | 6 | 07147482347 | Shop at ECS Tuning | |||||
| 10 | Drive, outside mirror | 2 | 67135A292C7 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional and BMW Personal pilot |
S5ASA=No S5AUA=No S5DNA=No S5DWA=No S5DXA=No |
|||||||||
| 11 | Wiring harness BMW driver's side | EC | 1 | 51169451959 | Shop at ECS Tuning | |||||
| 11 | Wiring harness BMW front passenger side | CR | 1 | 51169451960 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional and BMW Personal pilot |
S5ASA=No S5AUA=No S5DNA=Yes S5DWA=Yes S5DXA=No |
|||||||||
| 11 | Wiring harness BMW driver's side | EC | 1 | 51169451963 | Shop at ECS Tuning | |||||
| 11 | Wiring harness BMW front passenger side | CR | 1 | 51169451964 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional and BMW Personal pilot |
S5ASA=Yes S5AUA=Yes S5DNA=No S5DWA=No S5DXA=No |
|||||||||
| 11 | Wiring harness BMW driver's side | EC HC2 | 1 | 51169451961 | Shop at ECS Tuning | |||||
| 11 | Wiring harness BMW front passenger side | HC2 | 1 | 51169451962 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional and BMW Personal pilot |
S5ASA=Yes S5AUA=Yes S5DNA=Yes S5DWA=Yes S5DXA=Yes |
|||||||||
| 11 | Wiring harness BMW driver's side | HC2 | 1 | 51169451965 | Shop at ECS Tuning | |||||
| 11 | Wiring harness BMW front passenger side | HC2 | 1 | 51169451966 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus and Parking assistant professional |
S5DNA=No S5DWA=No |
|||||||||
| 12 | Repair kit, wiring harness | HC2 | 1 | 51165A35678 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus and Parking assistant professional |
S5DNA=Yes S5DWA=Yes |
|||||||||
| 12 | Repair kit, wiring harness | HC2 CAM | 1 | 51165A35679 | Shop at ECS Tuning | |||||
| 13 | Repair kit, wiring harness | 1 | 51165A29AF6 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 740d Outside mirror?
- This technical diagram illustrates the Outside mirror within the Vehicle trim group for the 7 Series G70 740d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Exterior mirror w/o mounted parts, left (Part #51165A356D1).
- Which models use the hardware listed in this Outside mirror?
- The hardware and components featured in the Outside mirror are specific to the 7 Series G70 740d produced during 2025. These technical specifications ensure that parts like the Exterior mirror w/o mounted parts, left (51165A356D1) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Outside mirror assembly?
- Each item in the Outside mirror corresponds to the numbered list below the illustration. For the 7 Series G70 740d, you can identify the Exterior mirror w/o mounted parts, left by locating its position on the schematic, which then links to the official BMW part number 51165A356D1 for the Vehicle trim section.
