Sun visors for BMW 3 Series G20 Sedan LCI 330dX (2021)

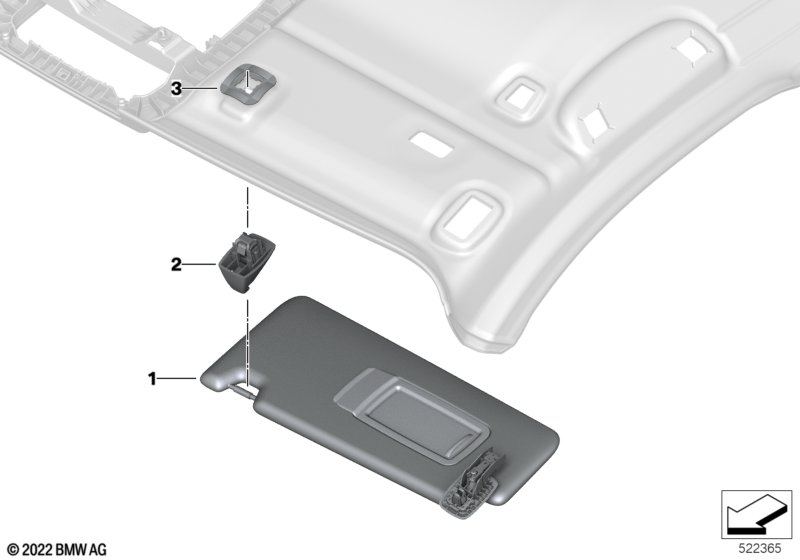

This Sun visors technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Headlining anthracite and Country-specific equipment Taiwan 04825 |
S775A=Yes S8LTA=Yes |
|||||||||
| 01 | Right illuminated sun visor | SCHWARZ | 1 | 51165A08CA6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Country-specific equipment Taiwan 04825 |
S775A=Yes S8LTA=No |
|||||||||
| 01 | Right illuminated sun visor | SCHWARZ | 1 | 51168092730 | Shop at ECS Tuning | |||||
| For vehicles with Special Edition or Headlining anthracite |
P7H1A=Yes S775A=Yes |
|||||||||
| 01 | Left illuminated sun visor | SCHWARZ | 1 | 51168092729 | Shop at ECS Tuning | |||||
| 01 | Right illuminated sun visor | SCHWARZ | 1 | 51168092734 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige |
S775A=No KHFR=Yes KHFY=Yes |
|||||||||
| 01 | Left illuminated sun visor | CANBERRABEIGE | 1 | 51167496985 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Country-specific equipment Taiwan 04825 and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige |
S775A=No S8LTA=Yes KHFR=Yes KHFY=Yes |
|||||||||
| 01 | Right illuminated sun visor | CANBERRABEIGE | 1 | 51165A0E110 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Country-specific equipment Taiwan 04825 and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige |
S775A=No S8LTA=No KHFR=Yes KHFY=Yes |
|||||||||
| 01 | Right illuminated sun visor | CANBERRABEIGE | 1 | 51167496986 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Cloth Hevelius/anthracite or Fabric sensatec./ black or Sensatec perf./Tacora red decor strips or Sensatec perf./Tacora red decor strips or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec PERF./Mocha decor stitching or Sensatec perf./black contrast stitching or Sensatec perforated/black or Leather Vernasca/tacora red dec.stitch. or Leather, Vernasca, black, gray stitching or Leather Vernasca/mocca decor.stitching or Leather Vernasca/ oyster dec.stitching or Leather, Vernasca, cognac, gy stitching |
S775A=No EHAT=Yes KFSW=Yes KHER=Yes KHG6=Yes KHG7=Yes KHKC=Yes KHMU=Yes KHNL=Yes KHSW=Yes MAG6=Yes MAH7=Yes MAMU=Yes MAOI=Yes MAPQ=Yes |
|||||||||
| 01 | Right illuminated sun visor | ELFENBEINWEISS | 1 | 51167481630 | Shop at ECS Tuning | |||||
| 01 | Left illuminated sun visor | ELFENBEINWEISS | 1 | 51167481633 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Country-specific equipment Taiwan 04825 and Cloth Hevelius/anthracite or Fabric sensatec./ black or Sensatec perf./Tacora red decor strips or Sensatec perf./Tacora red decor strips or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec PERF./Mocha decor stitching or Sensatec perf./black contrast stitching or Sensatec perforated/black or Leather Vernasca/tacora red dec.stitch. or Leather, Vernasca, black, gray stitching or Leather Vernasca/mocca decor.stitching or Leather Vernasca/ oyster dec.stitching or Leather, Vernasca, cognac, gy stitching |
S775A=No S8LTA=No EHAT=Yes KFSW=Yes KHER=Yes KHG6=Yes KHG7=Yes KHKC=Yes KHMU=Yes KHNL=Yes KHSW=Yes MAG6=Yes MAH7=Yes MAMU=Yes MAOI=Yes MAPQ=Yes |
|||||||||
| 01 | Right illuminated sun visor | ELFENBEINWEISS | 1 | 51167481634 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Country-specific equipment Taiwan 04825 and Cloth Hevelius/anthracite or Fabric sensatec./ black or Sensatec perf./Tacora red decor strips or Sensatec perf./Tacora red decor strips or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec PERF./Mocha decor stitching or Sensatec perf./black contrast stitching or Sensatec perforated/black or Leather Vernasca/tacora red dec.stitch. or Leather, Vernasca, black, gray stitching or Leather Vernasca/mocca decor.stitching or Leather Vernasca/ oyster dec.stitching or Leather, Vernasca, cognac, gy stitching |
S775A=No S8LTA=Yes EHAT=Yes KFSW=Yes KHER=Yes KHG6=Yes KHG7=Yes KHKC=Yes KHMU=Yes KHNL=Yes KHSW=Yes MAG6=Yes MAH7=Yes MAMU=Yes MAOI=Yes MAPQ=Yes |
|||||||||
| 01 | Right illuminated sun visor | ELFENBEINWEISS | 1 | 51165A0E112 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 02 | Counterbearing for sun visor | ANTHRAZIT | 2 | 51168073382 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige |
S775A=No KHFR=Yes KHFY=Yes |
|||||||||
| 02 | Counterbearing for sun visor | CANBERRABEIGE | 2 | 51167465197 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Cloth Hevelius/anthracite or Fabric sensatec./ black or Sensatec perf./Tacora red decor strips or Sensatec perf./Tacora red decor strips or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec PERF./Mocha decor stitching or Sensatec perf./black contrast stitching or Sensatec perforated/black or Leather Vernasca/tacora red dec.stitch. or Leather, Vernasca, black, gray stitching or Leather Vernasca/mocca decor.stitching or Leather Vernasca/ oyster dec.stitching or Leather, Vernasca, cognac, gy stitching |
S775A=No EHAT=Yes KFSW=Yes KHER=Yes KHG6=Yes KHG7=Yes KHKC=Yes KHMU=Yes KHNL=Yes KHSW=Yes MAG6=Yes MAH7=Yes MAMU=Yes MAOI=Yes MAPQ=Yes |
|||||||||
| 02 | Counterbearing for sun visor | ELFENBEINWEISS | 2 | 51167465198 | Shop at ECS Tuning | |||||
| 03 | Securing clip | 2 | 51167426646 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
