Rear window shelf for BMW 3 Series G20 Sedan LCI M340i (2022)

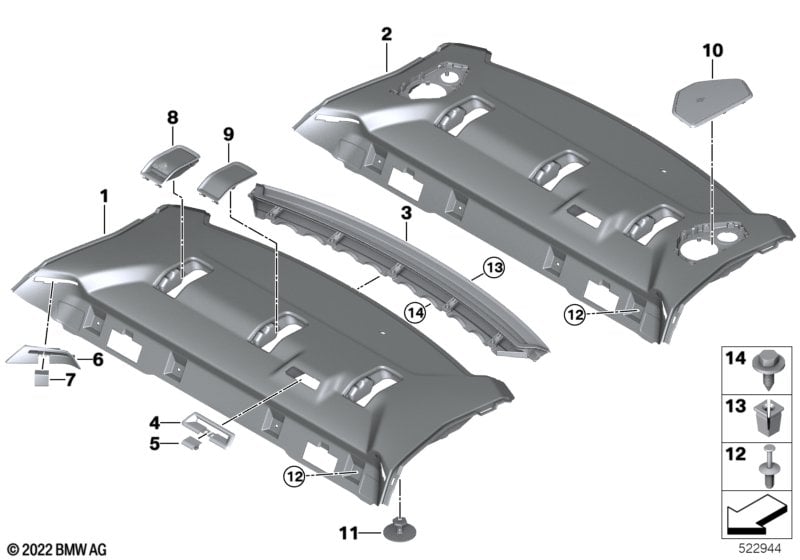

This Rear window shelf technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI M340i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Harman/Kardon Surround Sound system |
S688A=No |
|||||||||
| 01 | Rear window shelf | SCHWARZ | 1 | 51467482696 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 02 | Rear window shelf | SCHWARZ | 1 | 51467482697 | NoS | Shop at ECS Tuning | ||||
| 03 | Cover, luggage screen | SCHWARZ | 1 | 51467482400 | NoS | Shop at ECS Tuning | ||||
| 04 | Cover, belt outlet, center | SCHWARZ | 1 | 51477482387 | NoS | Shop at ECS Tuning | ||||
| 05 | Cover panel for belt gap cover center | SCHWARZ | 1 | 51467482388 | NoS | Shop at ECS Tuning | ||||
| 06 | Cover, belt outlet, left | SCHWARZ | 1 | 51467482389 | NoS | Shop at ECS Tuning | ||||
| 06 | Cover, belt outlet, right | SCHWARZ | 1 | 51467482390 | NoS | Shop at ECS Tuning | ||||
| 07 | Cover panel for belt gap cover left | SCHWARZ | 1 | 51467482391 | NoS | Shop at ECS Tuning | ||||
| 07 | Cover panel for belt gap cover right | SCHWARZ | 1 | 51467482392 | NoS | Shop at ECS Tuning | ||||
| 08 | Trim cover for Top Tether | SCHWARZ | 2 | 51465A43810 | NoS | Shop at ECS Tuning | ||||
| 09 | Cover plate | SCHWARZ | 1 | 51465A43820 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 10 | Cover for speaker, HiFi, left | 1 | 51467482401 | NoS | Shop at ECS Tuning | |||||
| 10 | Cover for speaker, HiFi, right | 1 | 51467482402 | NoS | Shop at ECS Tuning | |||||
| 11 | Package shelf bracket | 3 | 51469108183 | NoS | Shop at ECS Tuning | |||||
| 12 | Expanding rivet | D = 6MM | 4 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 13 | Expanding nut | ST4,8MM | 4 | 51717154520 | $0.23 | Shop at ECS Tuning | ||||
| 14 | Sheet metal screw | ST4,8X16 | 4 | 07119901311 | $0.25 | Shop at ECS Tuning | ||||
